Inserts 231 threding trapezoidal thread DIN 103, full profile

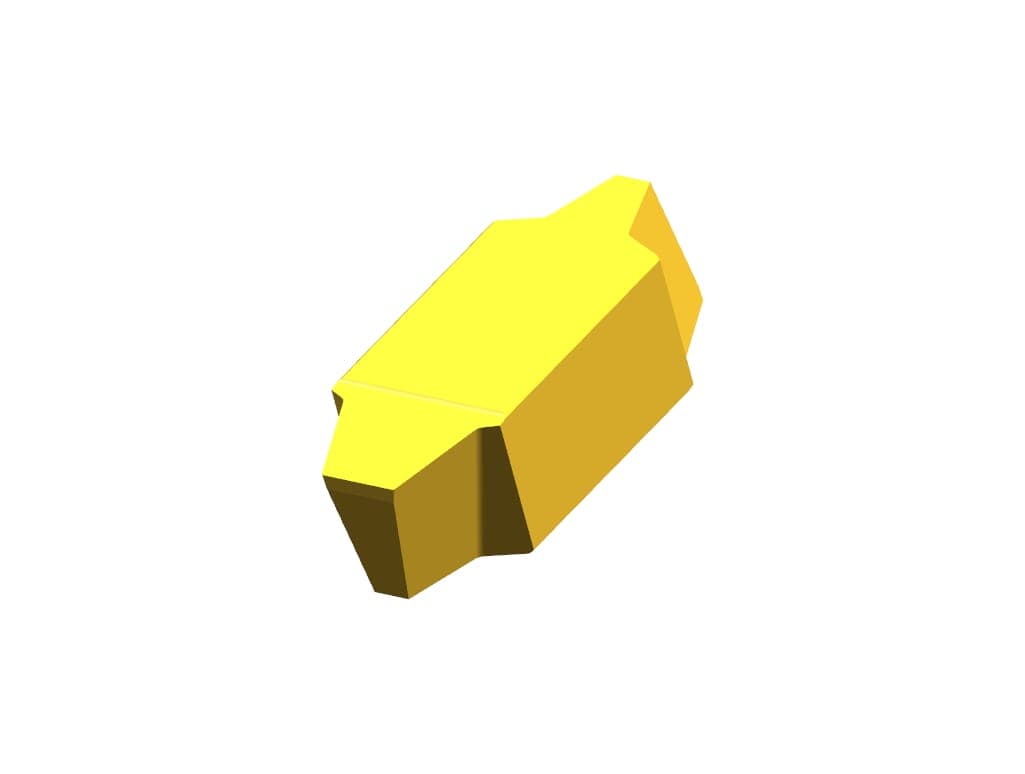

1 / 2: HORN 231.4070.02 TN35
External thread
Full profile thread

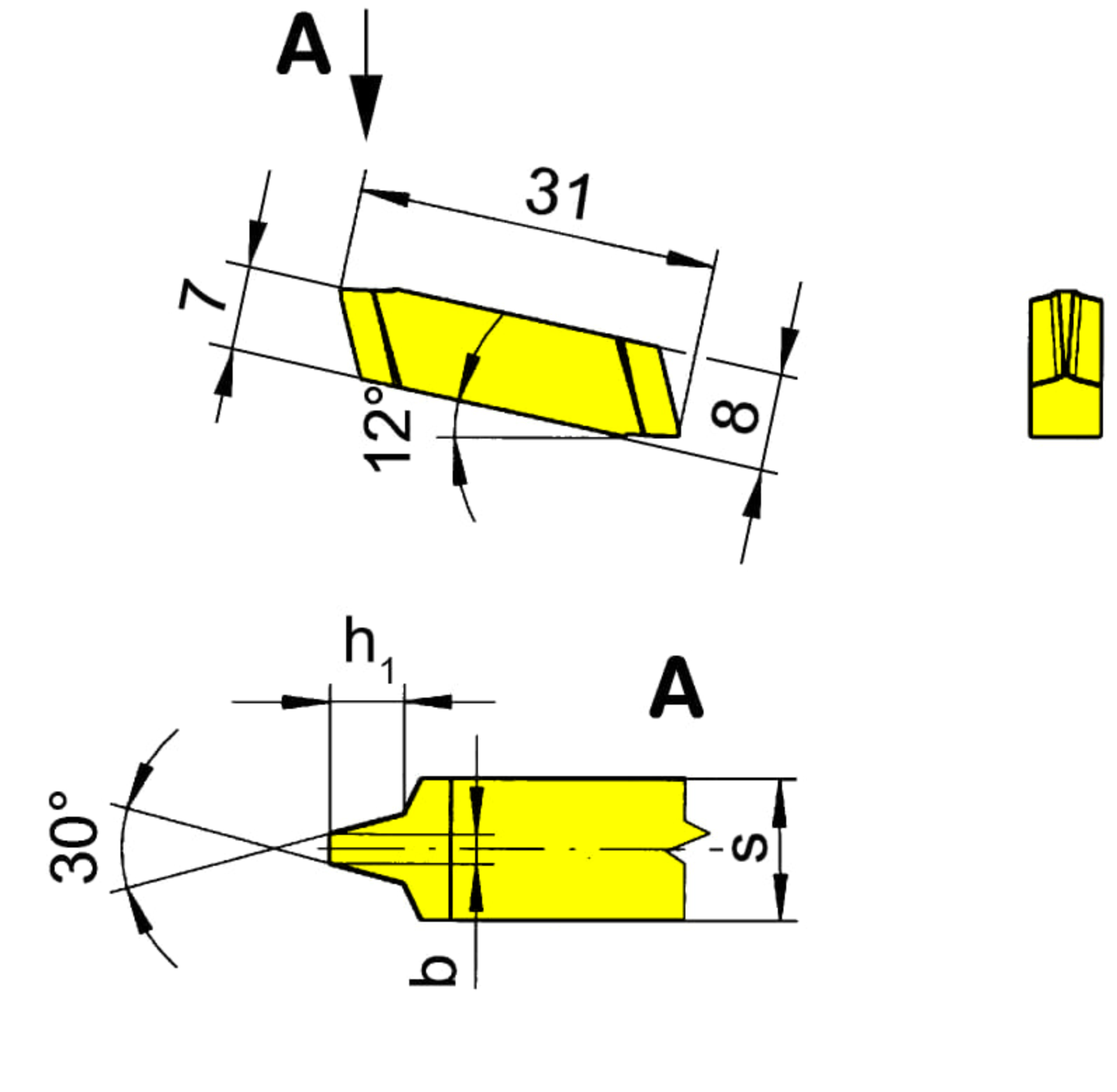

Trapezoidal/Acme thread| Cutting insert height, Cutting insert thickness (s) | 5.8 |
|---|---|
| Pitch (P) | 7 |
| Plating seat size (Größe) |
Henter tekniske filer …
Kategorier:Inserts 231 threding trapezoidal thread DIN 103, full profile
Henter matchende værktøj…
| 5 |
| Profile, thread depth (t1) | 4 |
|---|
| Width at the base of the thread (b) | 2.29 |
|---|
