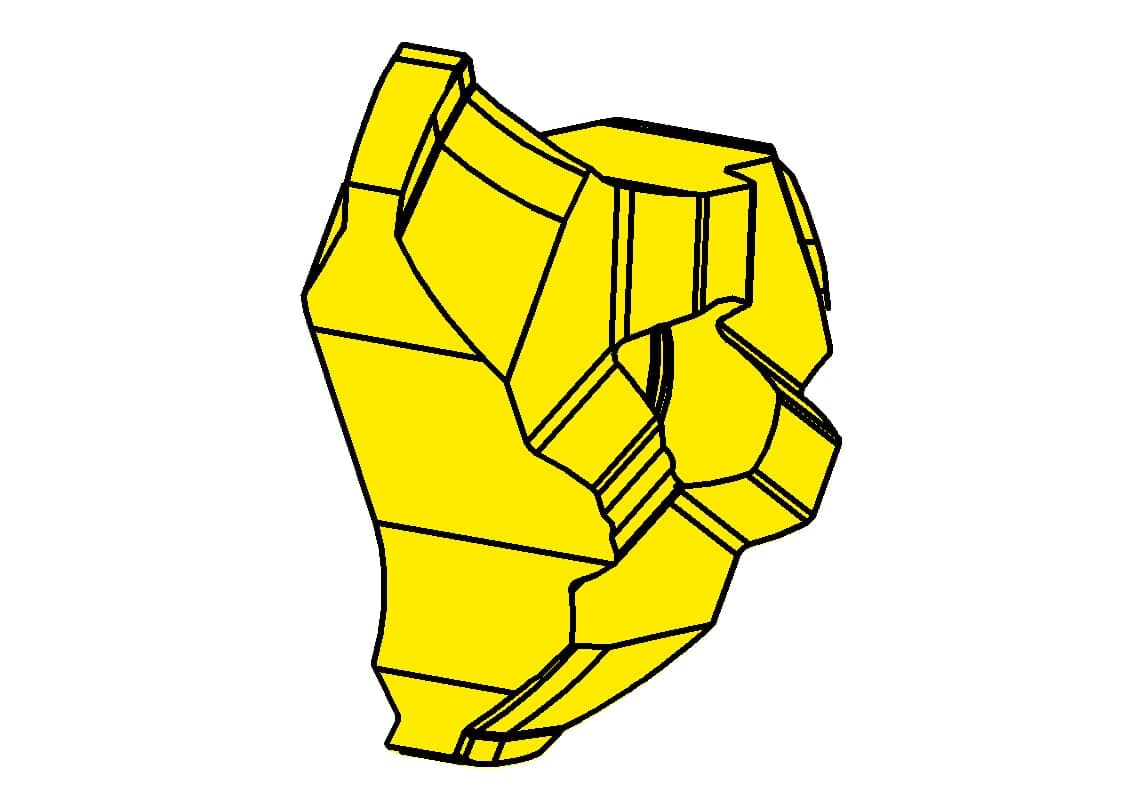

1 / 2: HORN 306.1105.30 AS45

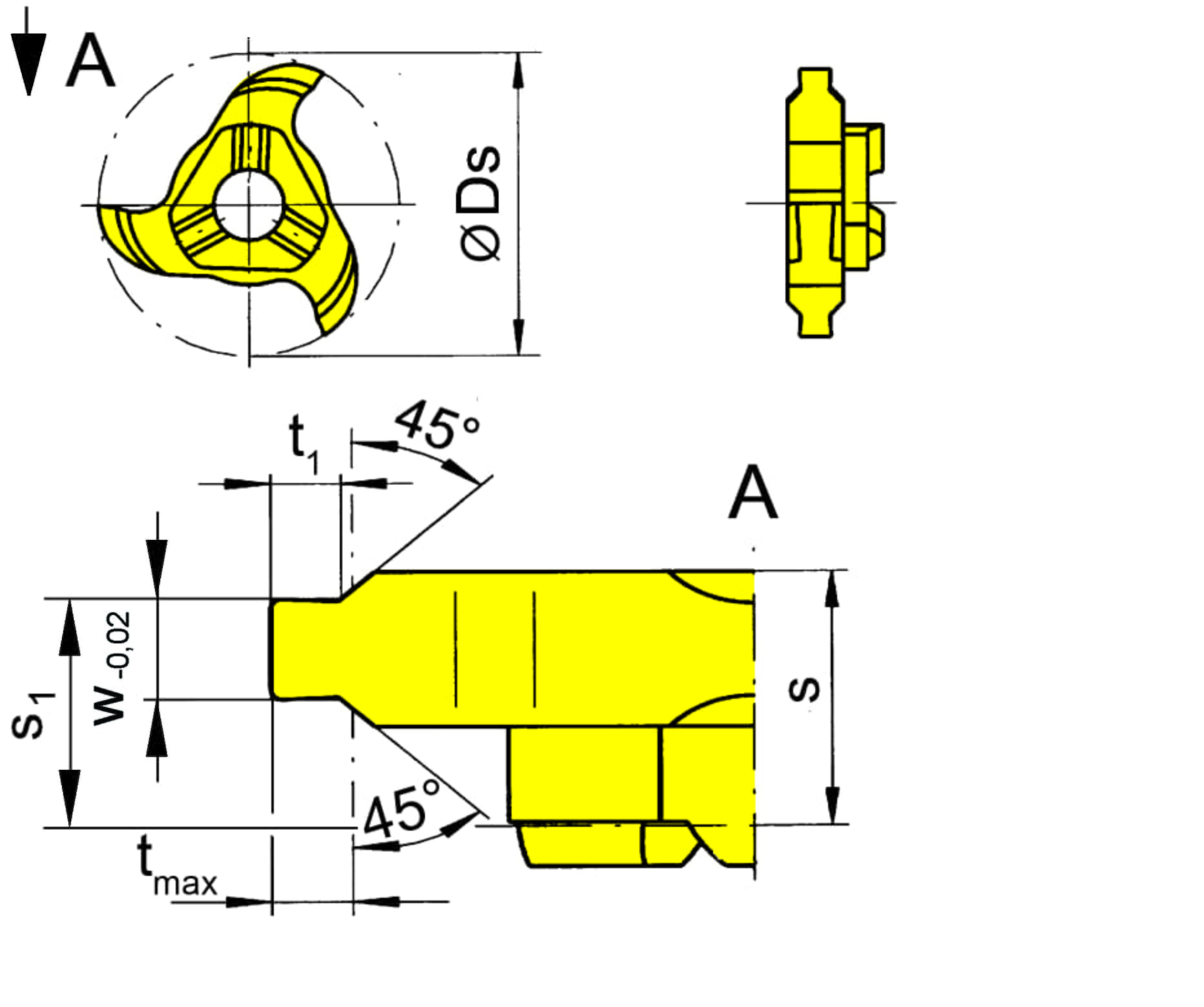

Circlip grooves| Cutting insert thickness to cutting edge, setting | 2.7 |
|---|---|
| Cutting diameter (Ds) | 11.7 |
| Cutting insert thickness to cutting edge, setting | 3.4 |
| Maximum milling depth (tmax) | 0.5 |
| Milling depth without NAKF (t1) | 0.47 |
| Nominal range (Nw) | 1.1 |
| Number of teeth (Z) | 3 |
Henter tekniske filer …
Kategorier:Inserts 306
Henter matchende værktøj…
| Width of groove (w) | 1.21 |
|---|
| number-of-teeth | 3 |
|---|
