HORN 308.0250.00 TF45

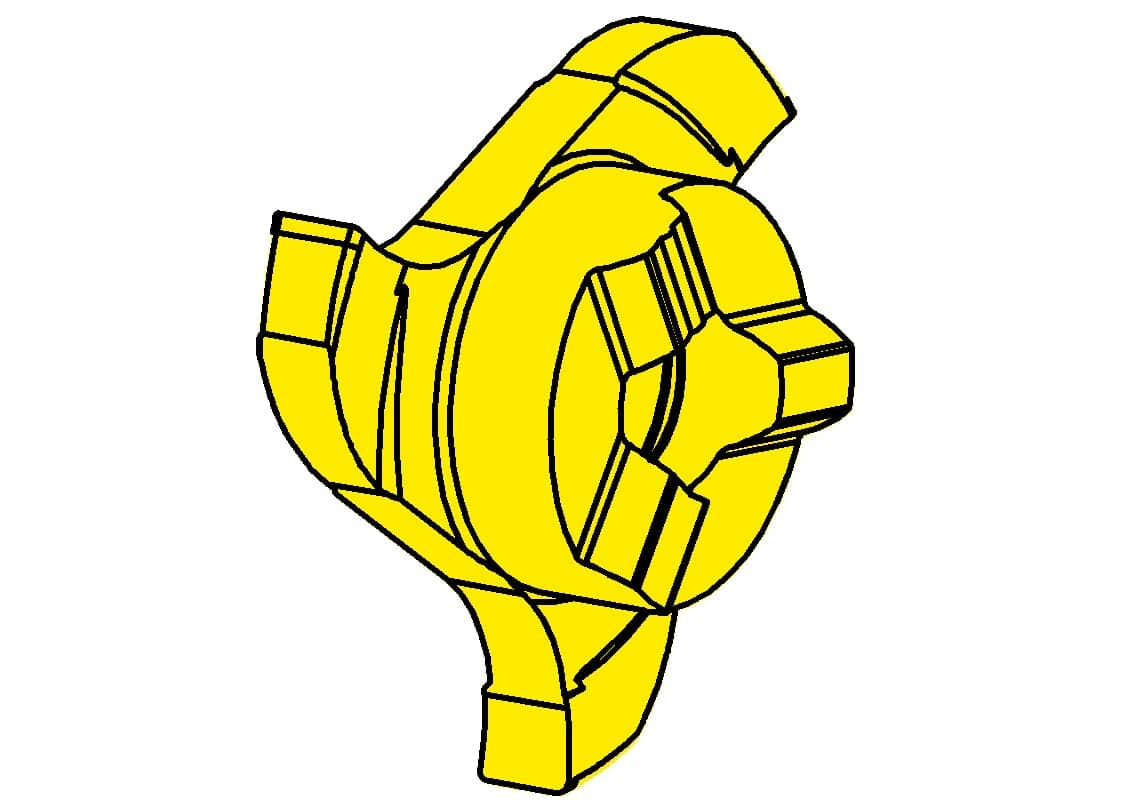

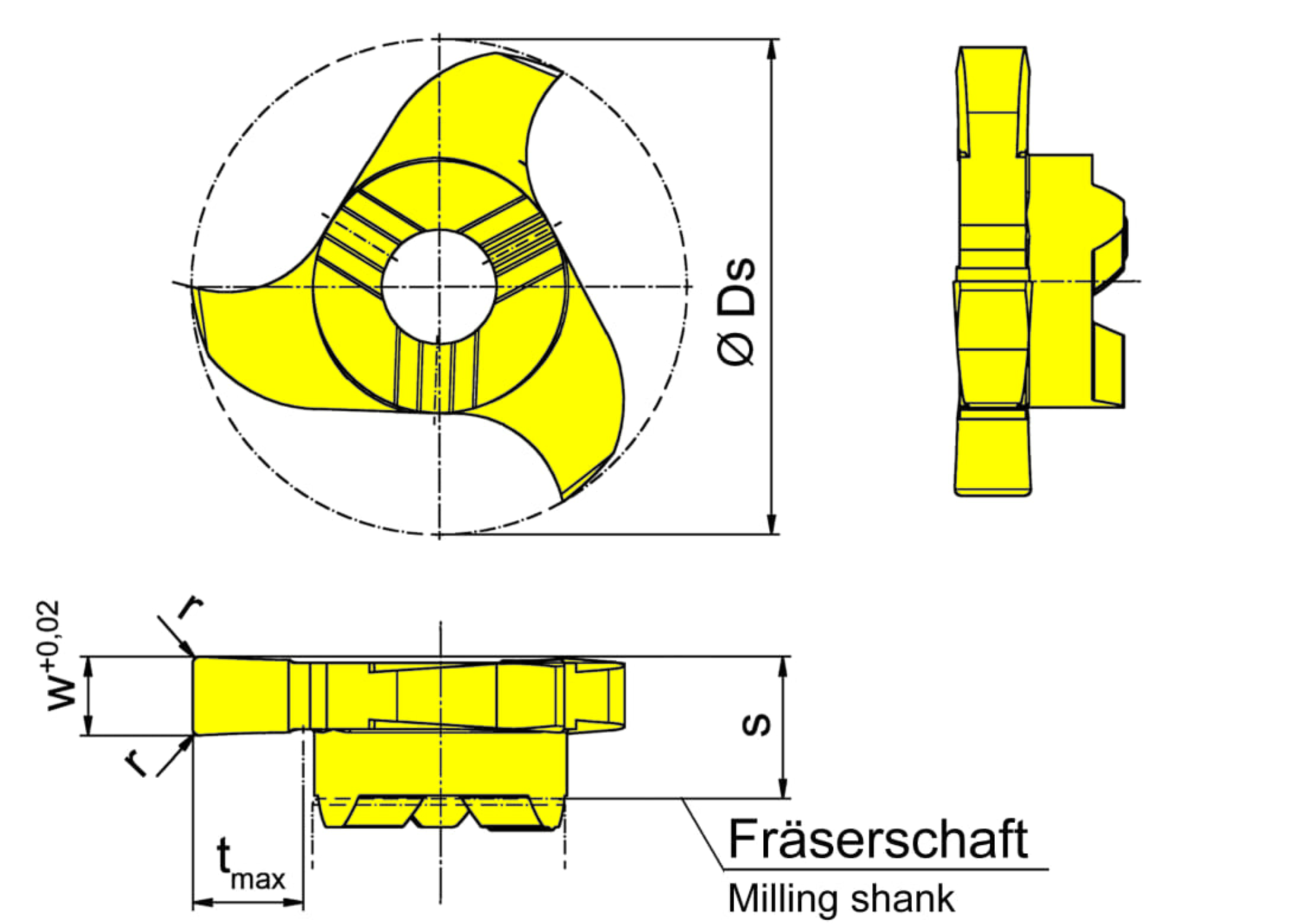

Tekniske billeder

Tekniske specifikationer
plating-seat-size
Corner radius (r)	0.2
Cutting diameter (Ds)	15.7
Cutting insert thickness to cutting edge, setting	4.5
Maximum milling depth (tmax)	3.5
Number of teeth (Z)	3
Width of groove (w)	2.5
number-of-teeth	3
