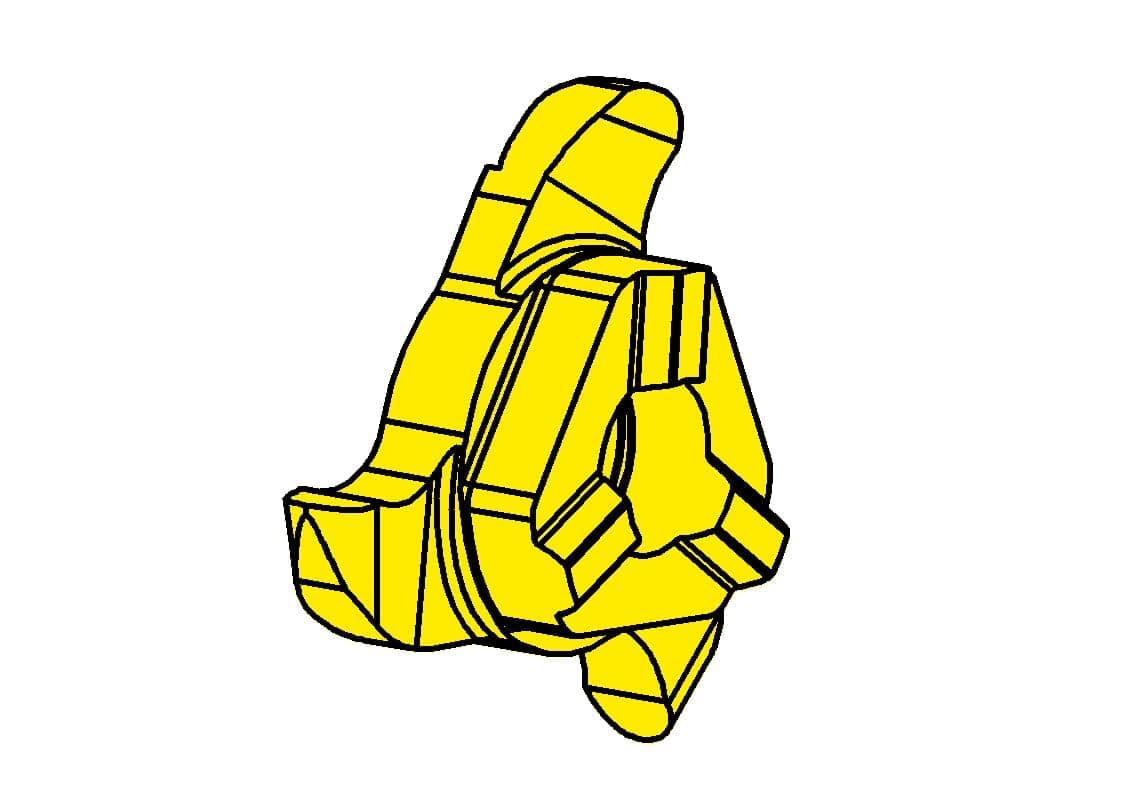

Cutting insert 313 Full radius

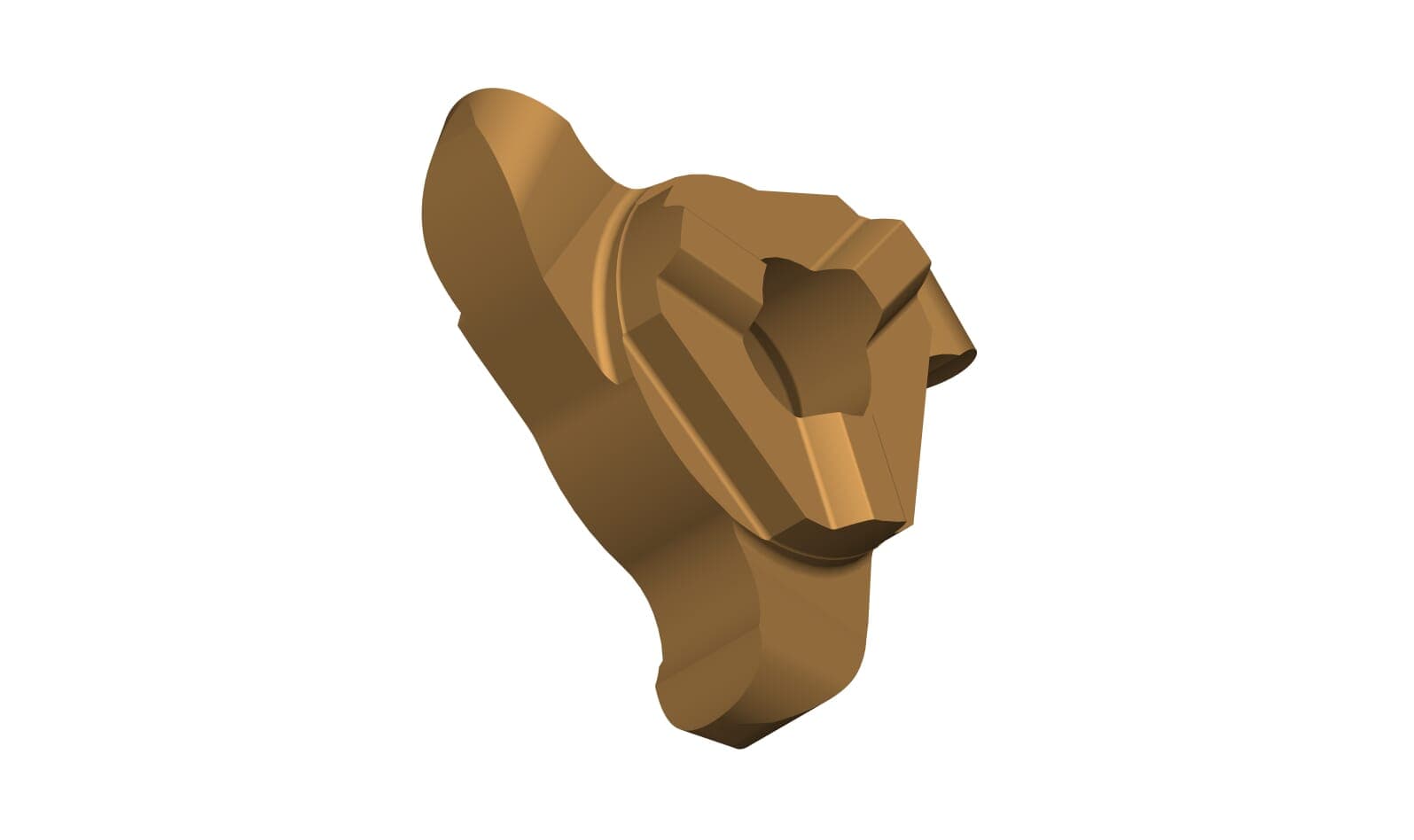

1 / 2: HORN 313.0020.40 TN35
Internal groove| Cutting diameter (Ds) | 21.7 |
|---|---|
| Cutting insert thickness to cutting edge, setting | 5.7 |
| Maximum milling depth (tmax) | 4.5 |
| Number of teeth (Z) | 3 |
| Radius, full-radius (r) | 2 |
| Width of groove (w) | 4 |
| number-of-teeth | 3 |
| plating-seat-size |
