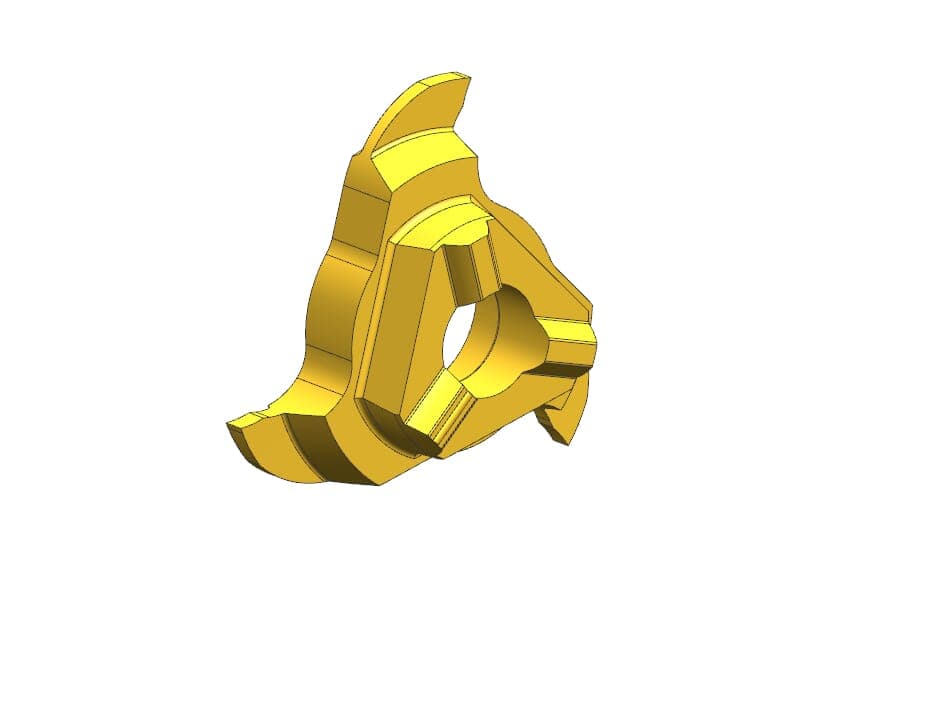

1 / 2: HORN 313.0100.00 TN35
Circlip grooves
Internal groove
Number of teeth Z3| Cutting insert thickness to cutting edge, setting | 5.6 |
|---|---|
| Cutting diameter (Ds) |
Henter tekniske filer …
Kategorier:Cutting insert 313
Henter matchende værktøj…
| 21.7 |
| Cutting insert thickness to cutting edge, setting | 5.9 |
|---|
| Maximum milling depth (tmax) | 2.2 |
|---|
| Nominal range (Nw) | 1 |
|---|
| Number of teeth (Z) | 3 |
|---|
| Width of groove (w) | 1.07 |
|---|
| number-of-teeth | 3 |
|---|
