Cutting insert 313 with groove outer edge chamfering

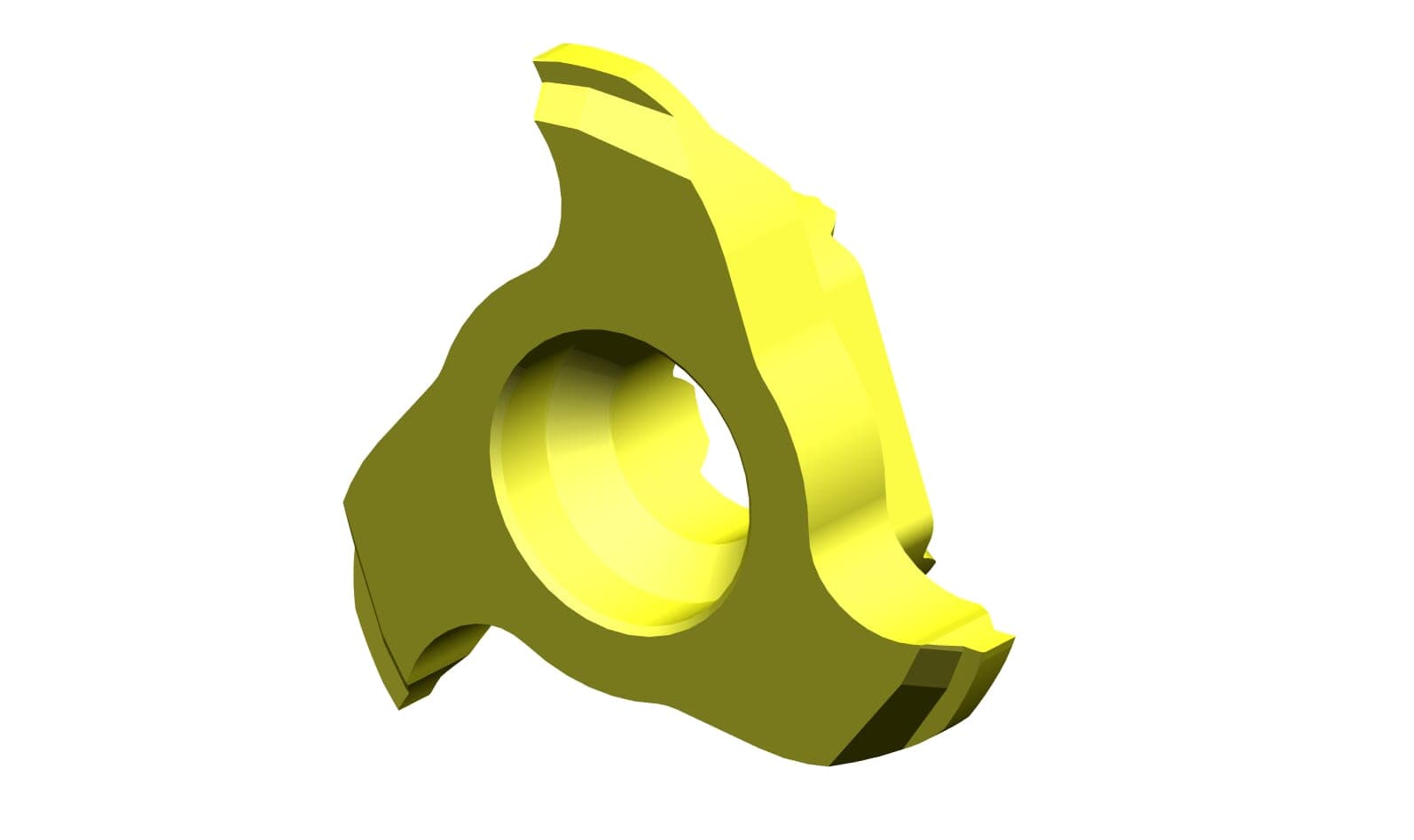

1 / 2: HORN 313.1307.30 TN35
Circlip grooves
Internal groove
Number of teeth Z3| Cutting insert thickness to cutting edge, setting | 5.17 |
|---|---|
| Cutting diameter (Ds) |
Henter tekniske filer …
Kategorier:Cutting insert 313 with groove outer edge chamfering
Henter matchende værktøj…
| 21.7 |
| Cutting insert thickness to cutting edge, setting | 5.9 |
|---|
| Maximum milling depth (tmax) | 0.7 |
|---|
| Milling depth without NAKF (t1) | 0.65 |
|---|
| Nominal range (Nw) | 1.3 |
|---|
| Number of teeth (Z) | 3 |
|---|
| Width of groove (w) | 1.41 |
|---|
| number-of-teeth | 3 |
|---|
