Cutting insert 313 with groove outer edge chamfering

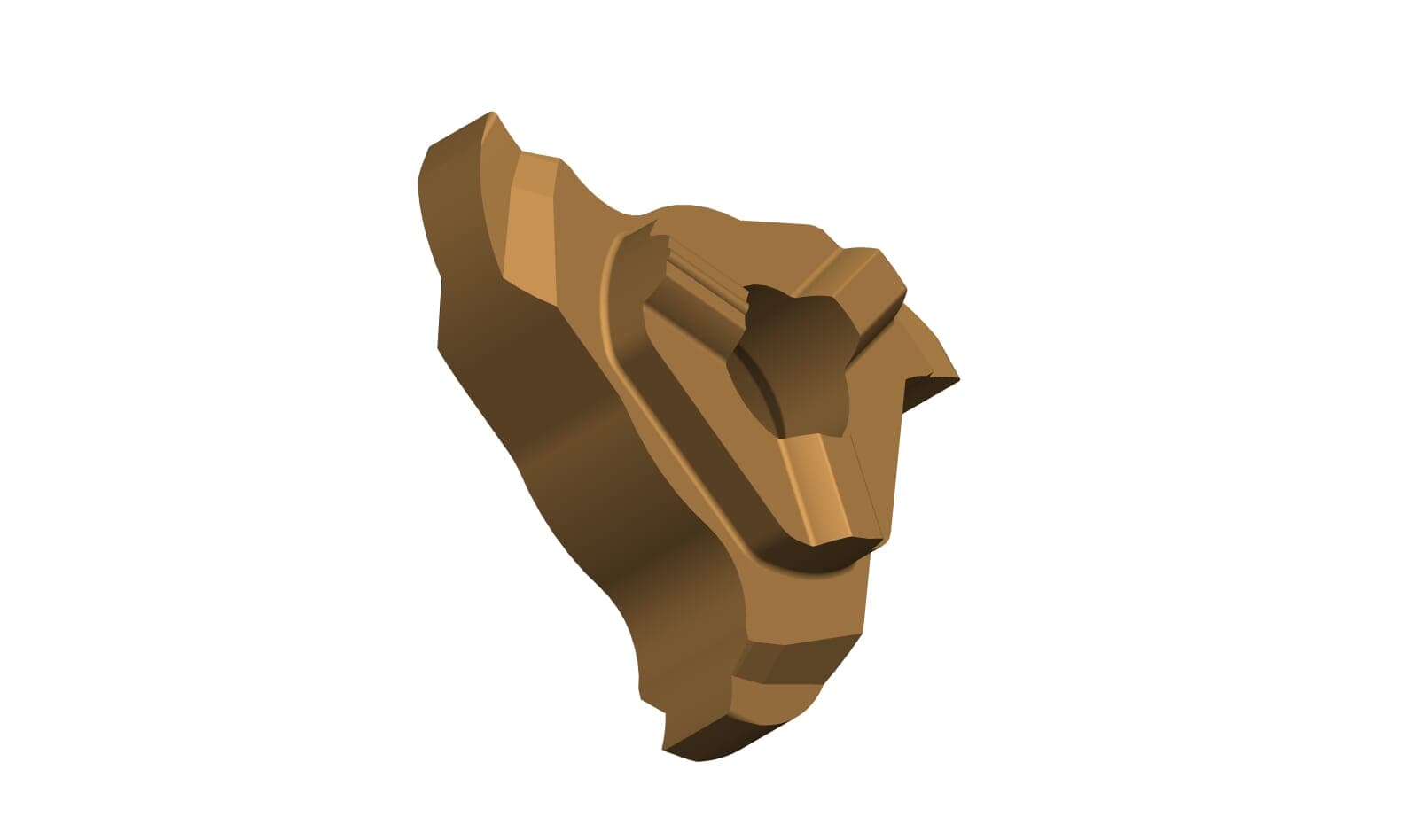

1 / 2: HORN 313.2616.45 TN35
Circlip grooves
Internal groove
Number of teeth Z3| Corner radius (r) | 0.2 |
|---|---|
| Cutting insert thickness to cutting edge, setting |
Henter tekniske filer …
Kategorier:Cutting insert 313 with groove outer edge chamfering
Henter matchende værktøj…
| 5.09 |
| Cutting diameter (Ds) | 21.7 |
|---|
| Cutting insert thickness to cutting edge, setting | 5.9 |
|---|
| Maximum milling depth (tmax) | 1.5 |
|---|
| Milling depth without NAKF (t1) | 1.45 |
|---|
| Nominal range (Nw) | 2.65 |
|---|
| Number of teeth (Z) | 3 |
|---|
| Width of groove (w) | 2.76 |
|---|
| number-of-teeth | 3 |
|---|
