Circlip grooves
Internal groove
Number of teeth Z3| Corner radius (r) | 0.2 |
|---|---|
| Cutting insert thickness to cutting edge, setting |
Henter tekniske filer …

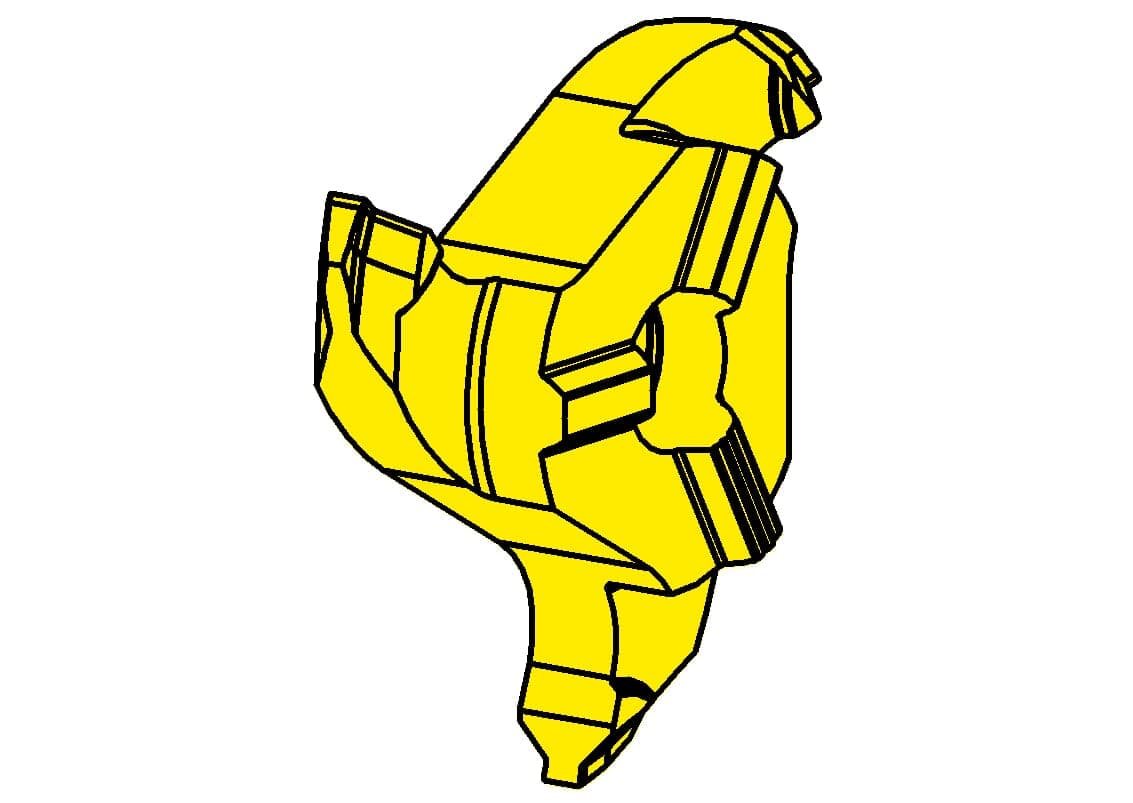

Kategorier:Cutting insert 328
Henter matchende værktøj…
| 5.1 |
| Cutting diameter (Ds) | 27.7 |
|---|
| Cutting insert thickness to cutting edge, setting | 5.95 |
|---|
| Maximum milling depth (tmax) | 1.25 |
|---|
| Milling depth without NAKF (t1) | 1.21 |
|---|
| Nominal range (Nw) | 1.85 |
|---|
| Number of teeth (Z) | 3 |
|---|
| Width of groove (w) | 1.96 |
|---|
| number-of-teeth | 3 |
|---|
