Slip-on milling cutter System 380

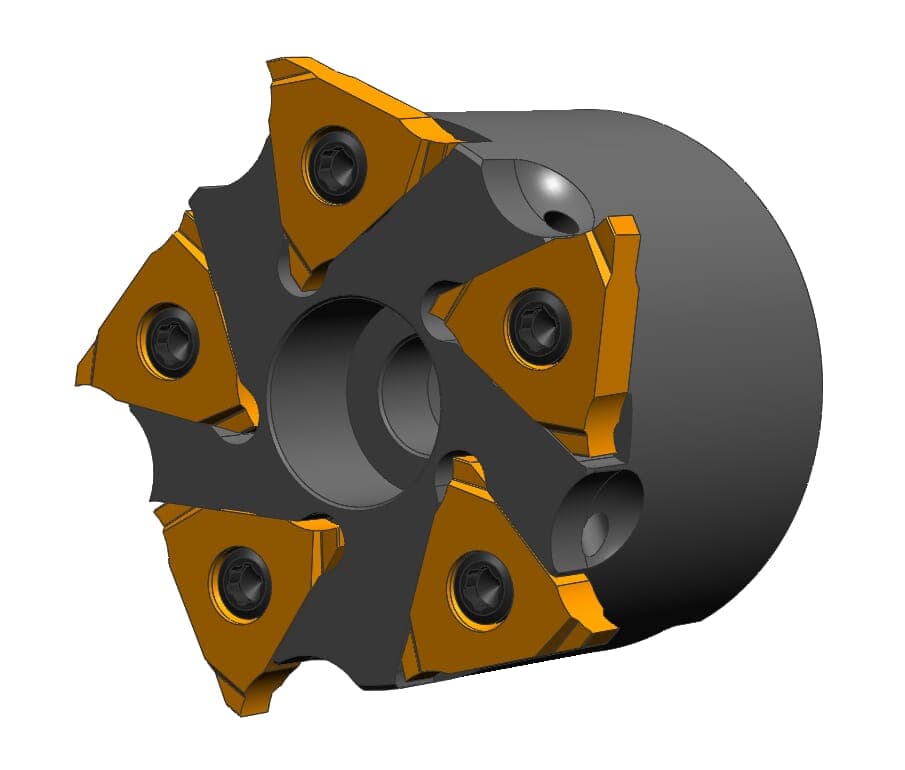

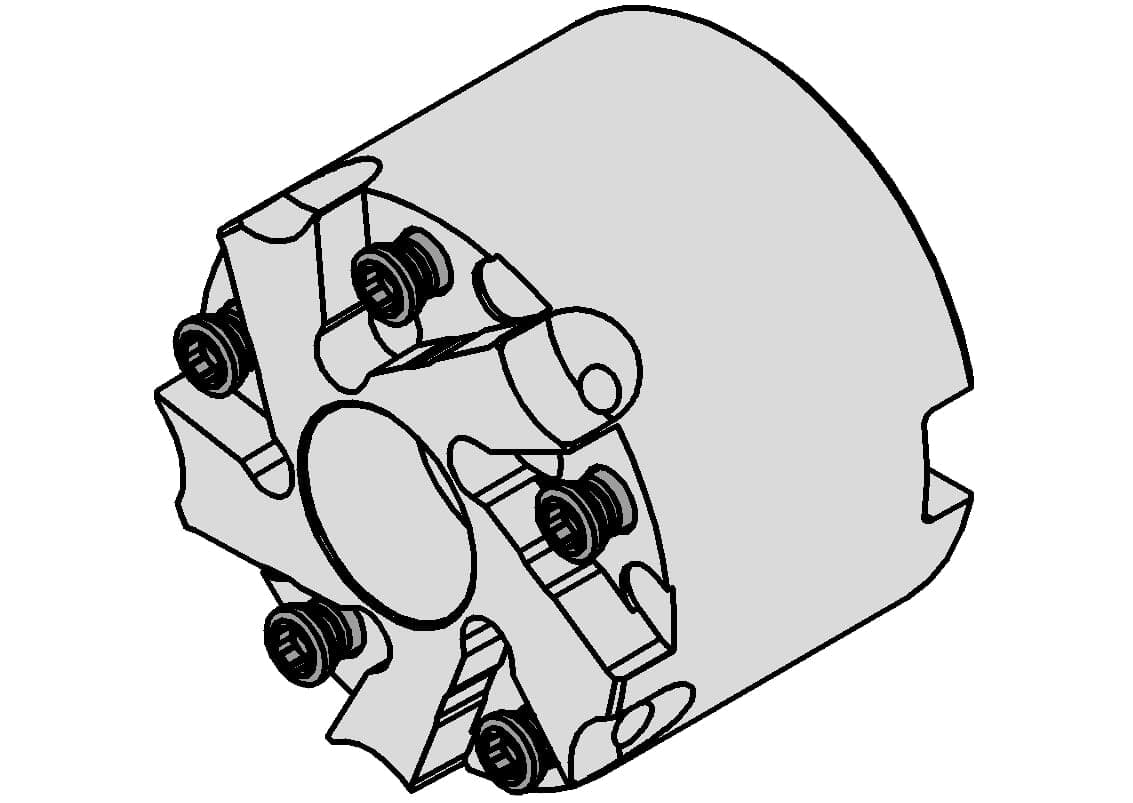

1 / 2: HORN 380.0063.05.IK
Internal thread milling| Cutting diameter (Ds) | 63 |
|---|---|
| Diameter of the mandrel (dK) | 51 |
| Einlegewinkel Wendeschneidplatte (λ) | 10 |
| Length from stop to center insert (l4) | 27.6 |
| Miller length with indexable insert (hmax) | 40 |
| Miller length without indexable insert (hmin) | 39.6 |
| Mounting hole depth (l1) | 20 |
Henter tekniske filer …
Kategorier:Slip-on milling cutter System 380
Henter matchende værktøj…
| Mounting hole diameter (d2) | 22 |
|---|
| Number of teeth (Z) | 5 |
|---|
| number-of-teeth | 5 |
|---|
