Slip-on milling cutter System 380

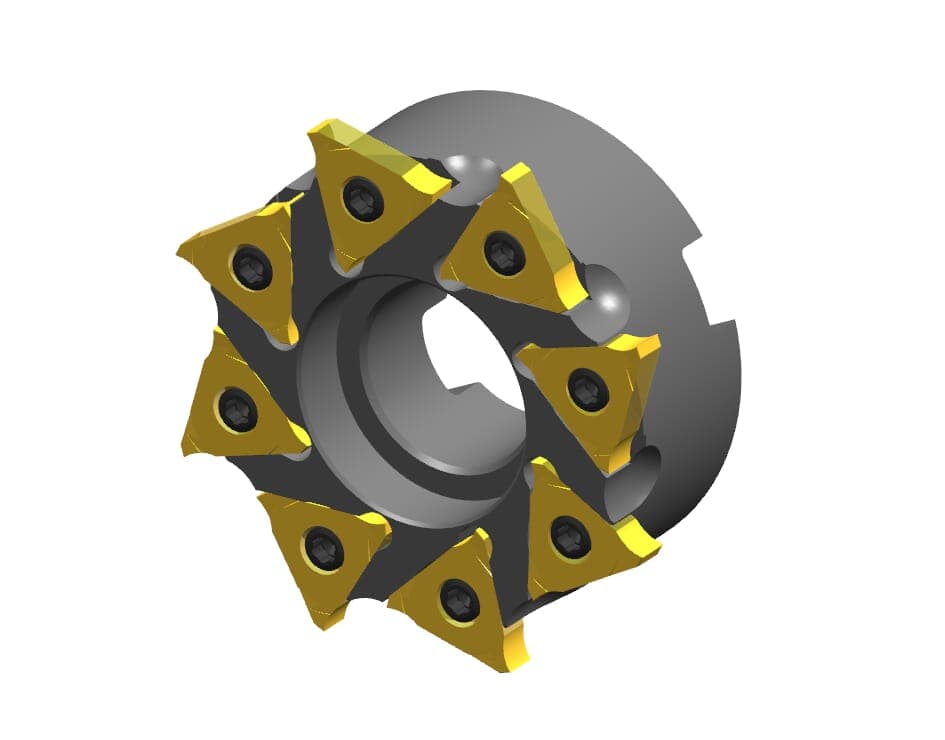

1 / 2: HORN 380.0080.08
Slotting
Internal groove
Number of teeth Z8| Cutting diameter (Ds) | 80 |
|---|---|
| Diameter of the mandrel (dK) |
Henter tekniske filer …
Kategorier:Slip-on milling cutter System 380
Henter matchende værktøj…
| 68 |
| Einlegewinkel Wendeschneidplatte (λ) | 10 |
|---|
| Length from stop to center insert (l4) | 21.6 |
|---|
| Maximum milling depth/ depth of groove (w) | 5 |
|---|
| Miller length with indexable insert (hmax) | 32 |
|---|
| Miller length without indexable insert (hmin) | 31.6 |
|---|
| Mounting hole diameter (d2) | 27 |
|---|
| Number of teeth (Z) | 8 |
|---|
| number-of-teeth | 8 |
|---|
