Slip-on milling cutter System 380

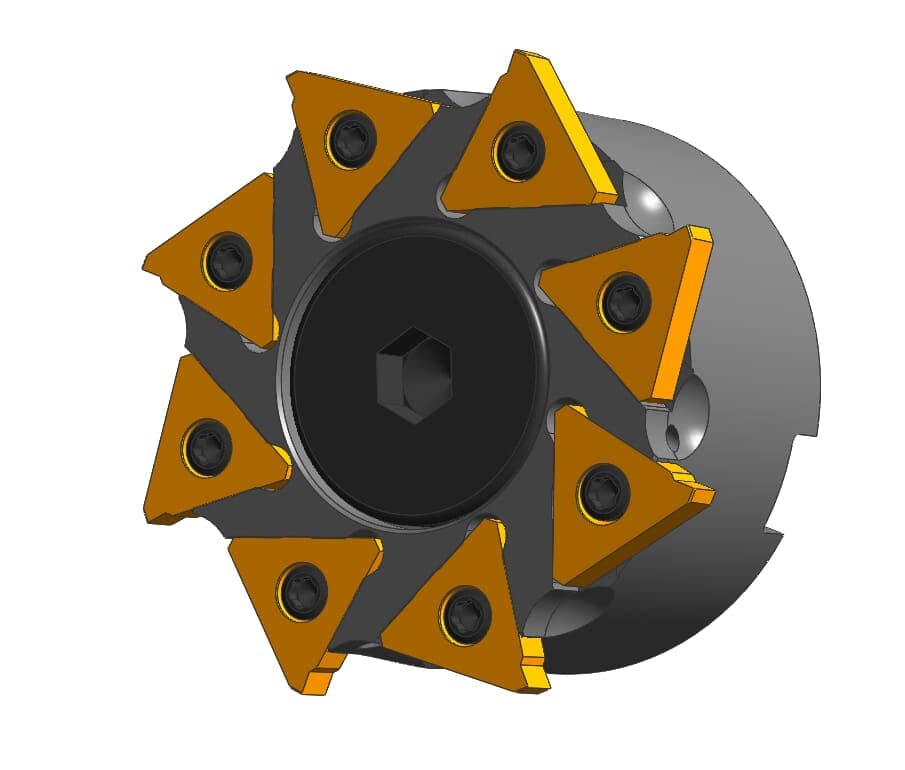

1 / 2: HORN 380.0080.08IK
Slotting
Internal groove
Number of teeth Z8
Internal coolingHenter tekniske filer …
Kategorier:Slip-on milling cutter System 380
Henter matchende værktøj…

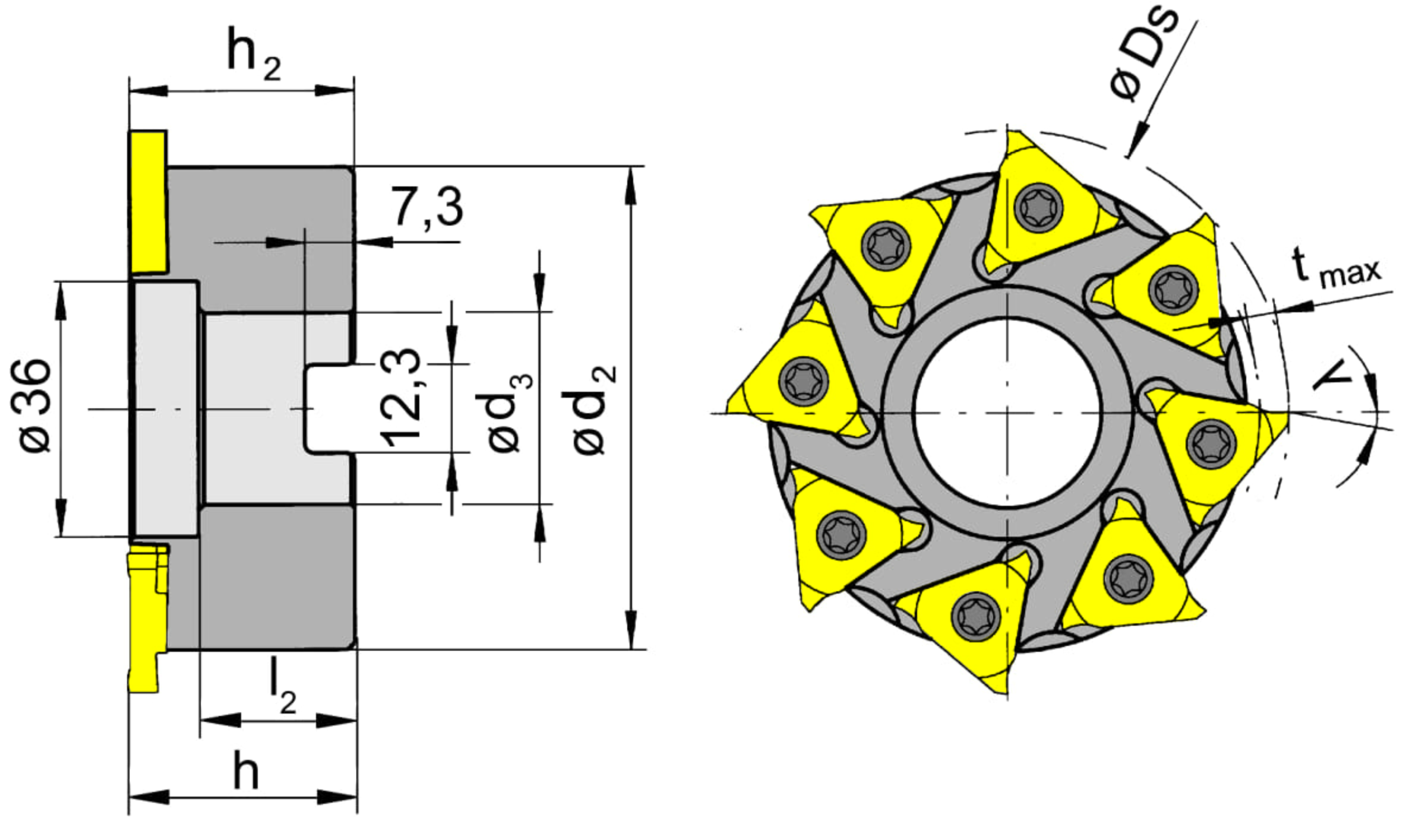

| Cutting diameter (Ds) | 80 |
|---|---|
| Diameter of the mandrel (dK) | 68 |
| Einlegewinkel Wendeschneidplatte (λ) | 10 |
| Length from stop to center insert (l4) | 21.6 |
| Maximum milling depth/ depth of groove (w) | 5 |
| Miller length with indexable insert (hmax) | 40 |
| Miller length without indexable insert (hmin) | 39.8 |
| Mounting hole diameter (d2) | 27 |
| Number of teeth (Z) | 8 |
| number-of-teeth | 8 |
