Side milling cutter System 382

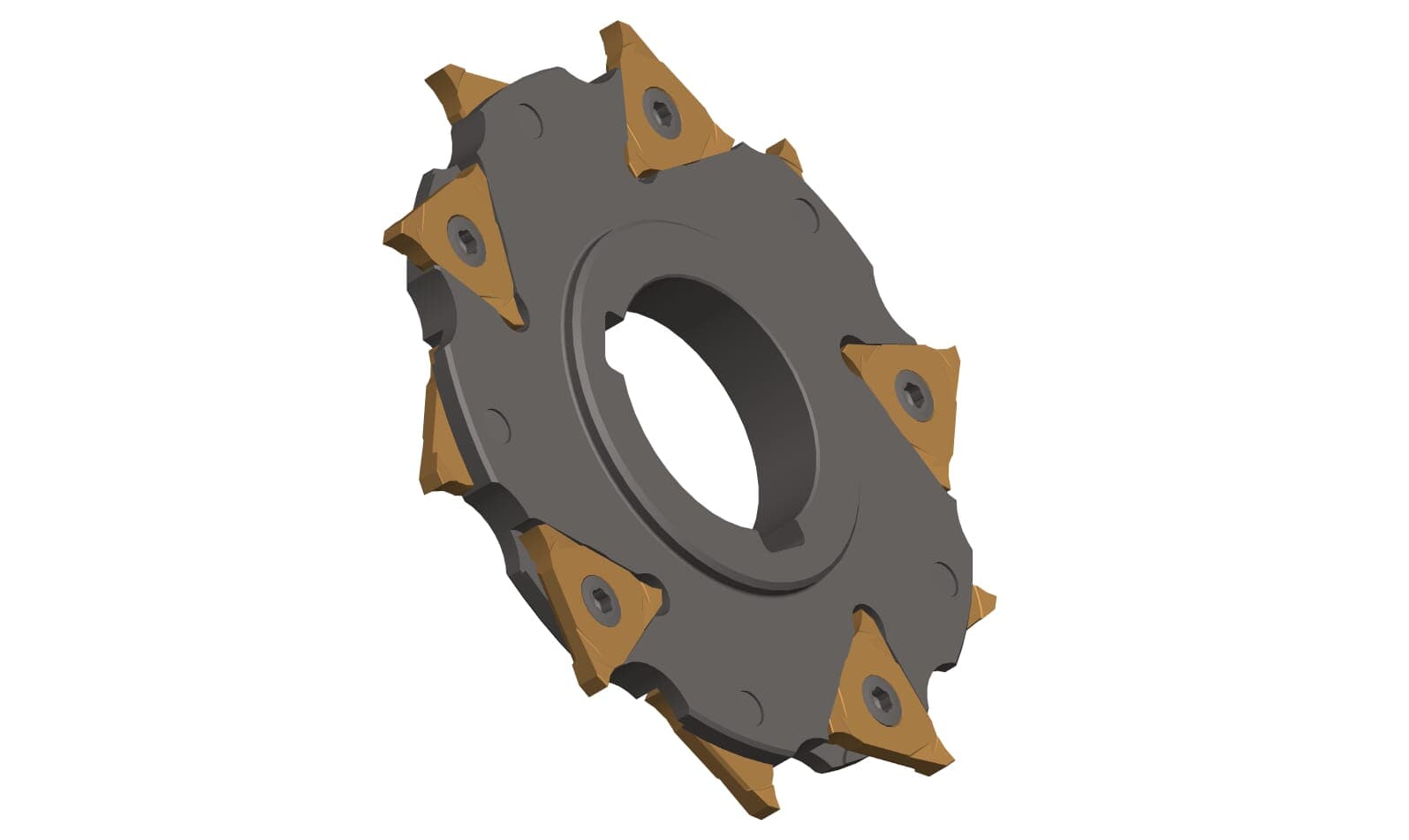

1 / 2: HORN 382.0100.32.06
Slotting
Number of teeth Z10| Bore diameter miller body (d3) | 47 |
|---|---|
| Cutting width maximum (w) | 6 |
| Cutting diameter (Ds) | 100 |
| Left hand indexable insert (linke WSP) | 5x L314... |
| Maximum milling depth (tmax) |
Henter tekniske filer …
Kategorier:Side milling cutter System 382
Henter matchende værktøj…
| 25.5 |
| Number of teeth (Z) | 10 |
|---|
| Right hand indexable insert (rechte WSP) | 5x R314... |
|---|
| Total width with drive rings (b2) | 10 |
|---|
| cutting width max met | 6 |
|---|
| number-of-teeth | 10 |
|---|
