Slip-on milling cutter System 383 (ab Z10)

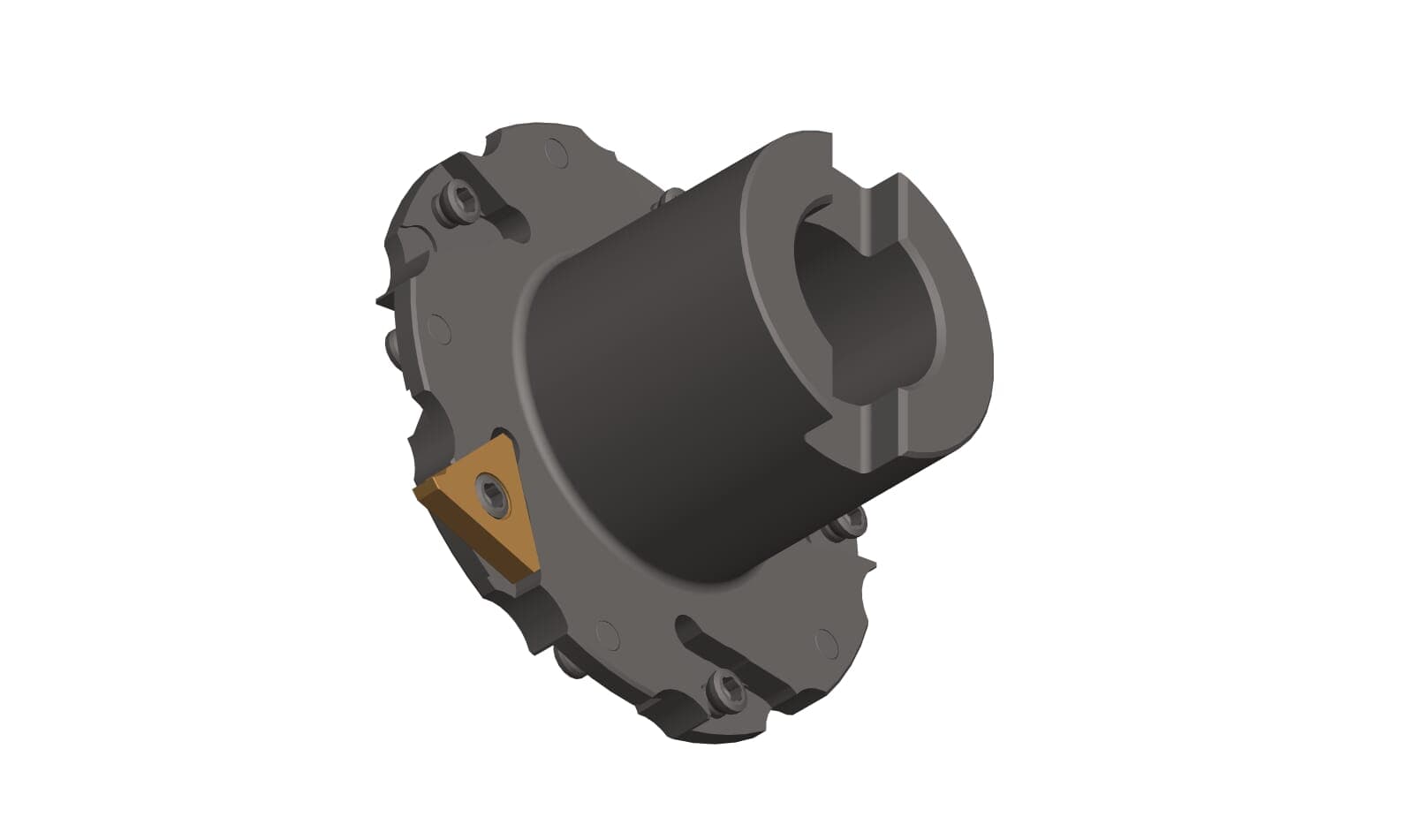

1 / 2: HORN 383.0100.27.08
Slotting
Number of teeth Z10| Cutting width maximum (w) | 8 |
|---|---|
| Cutting diameter (Ds) | 100 |
| Diameter facing system for disk cutters (d2) | 27 |
| Diameter of the mandrel (dK) | 48 |
| Left hand indexable insert (linke WSP) |
Henter tekniske filer …
Kategorier:Slip-on milling cutter System 383 (ab Z10)
Henter matchende værktøj…
| 5x L314... |
| Maximum milling depth/ depth of groove (w) | 25 |
|---|
| Miller length with indexable insert (hmax) | 50 |
|---|
| Number of teeth (Z) | 10 |
|---|
| Right hand indexable insert (rechte WSP) | 5x R314... |
|---|
| cutting width max met | 8 |
|---|
| number-of-teeth | 10 |
|---|
