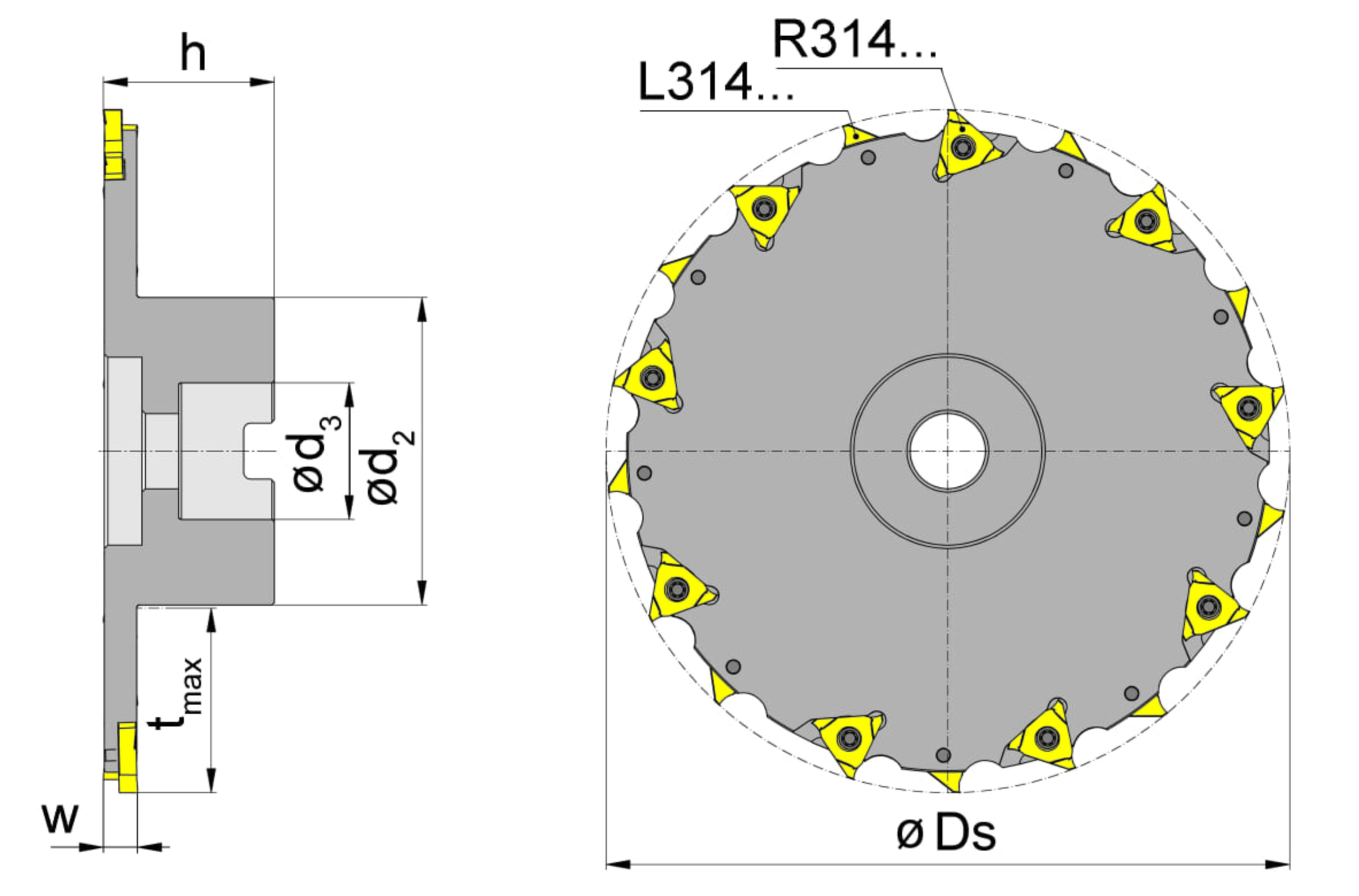

Slip-on milling cutter System 383 (ab Z10)
1 / 2: HORN 383.0200.40.06
Slotting| Cutting width maximum (w) | 6 |
|---|---|
| Cutting diameter (Ds) | 200 |
| Diameter facing system for disk cutters (d2) | 40 |
| Diameter of the mandrel (dK) | 90 |
| Left hand indexable insert (linke WSP) | 9x L314... |
| Maximum milling depth/ depth of groove (w) | 54 |
| Miller length with indexable insert (hmax) | 50 |
Henter tekniske filer …
Kategorier:Slip-on milling cutter System 383 (ab Z10)
Henter matchende værktøj…
| Number of teeth (Z) | 18 |
|---|
| Right hand indexable insert (rechte WSP) | 9x R314... |
|---|
| cutting width max met | 6 |
|---|
| number-of-teeth | 18 |
|---|
