Cutting inserts 606 Thread milling partial profile

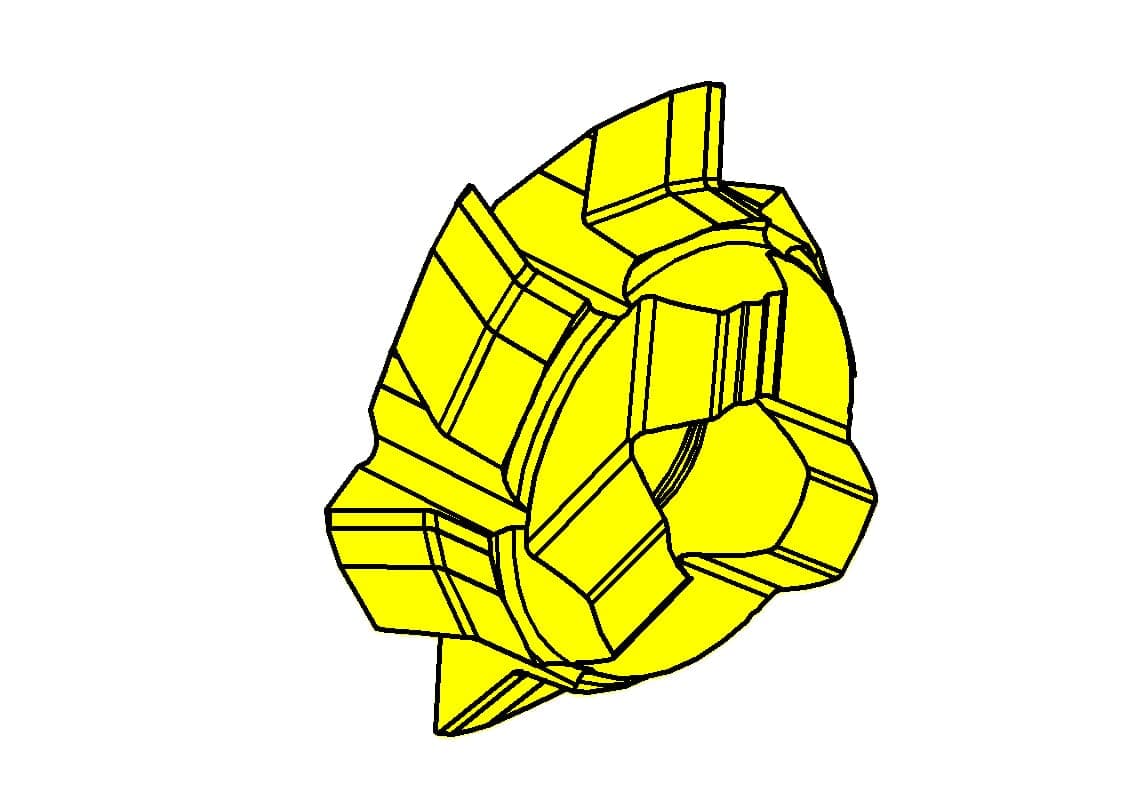

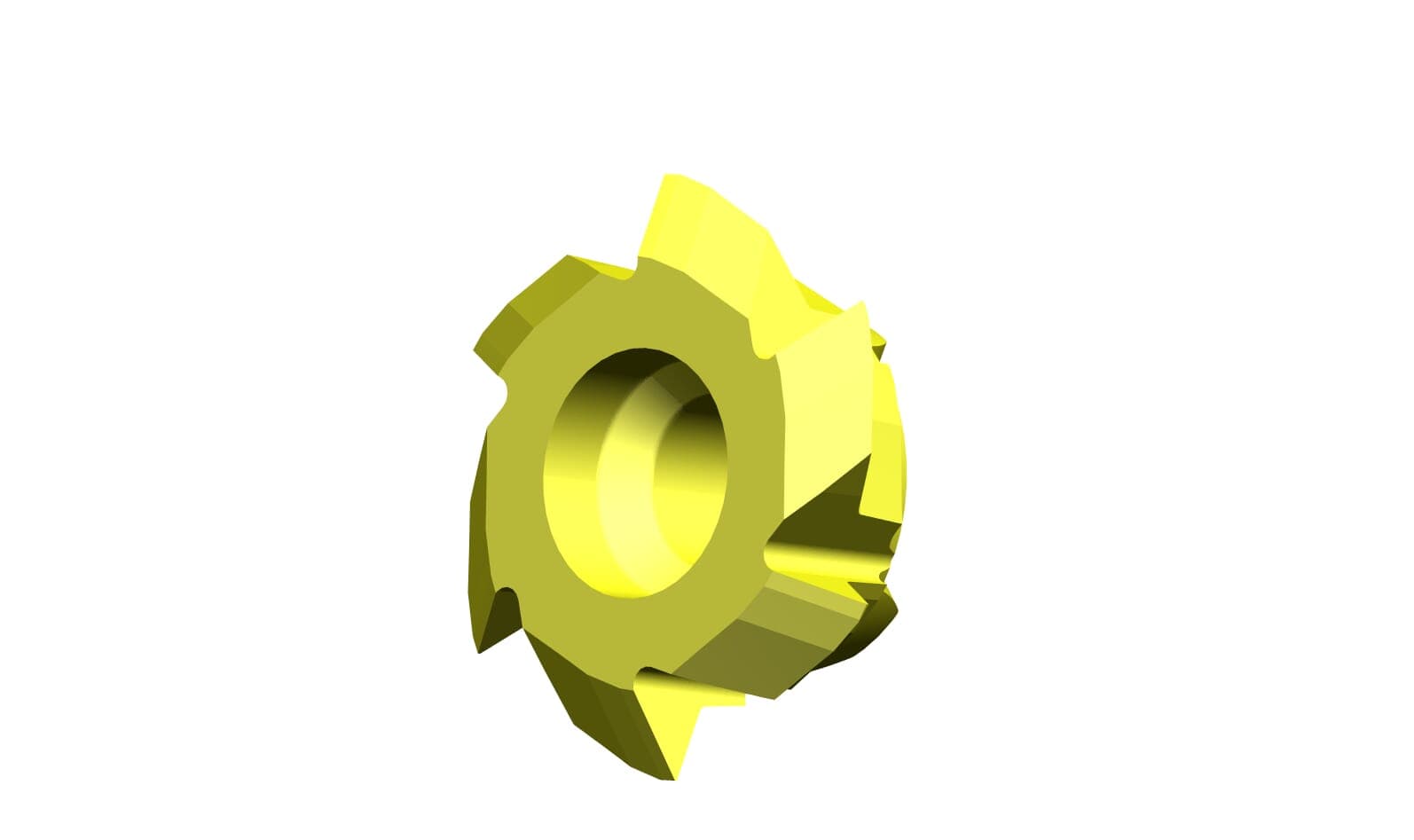

1 / 2: HORN 606.0515.01 TA45
60° thread
Internal thread milling
Partial profile thread
Number of teeth Z6Henter tekniske filer …
Kategorier:Cutting inserts 606 Thread milling partial profile
Henter matchende værktøj…
| Cutting diameter (Ds) | 10 |
|---|---|
| Cutting insert height, Cutting insert thickness (s) | 3.15 |
| Maximum pitch (Pmax) | 1.5 |
| Pitch (P) | 0.5 |
| Setting length (E) | 2.3 |
