606.3030.20 with bevel angle 30

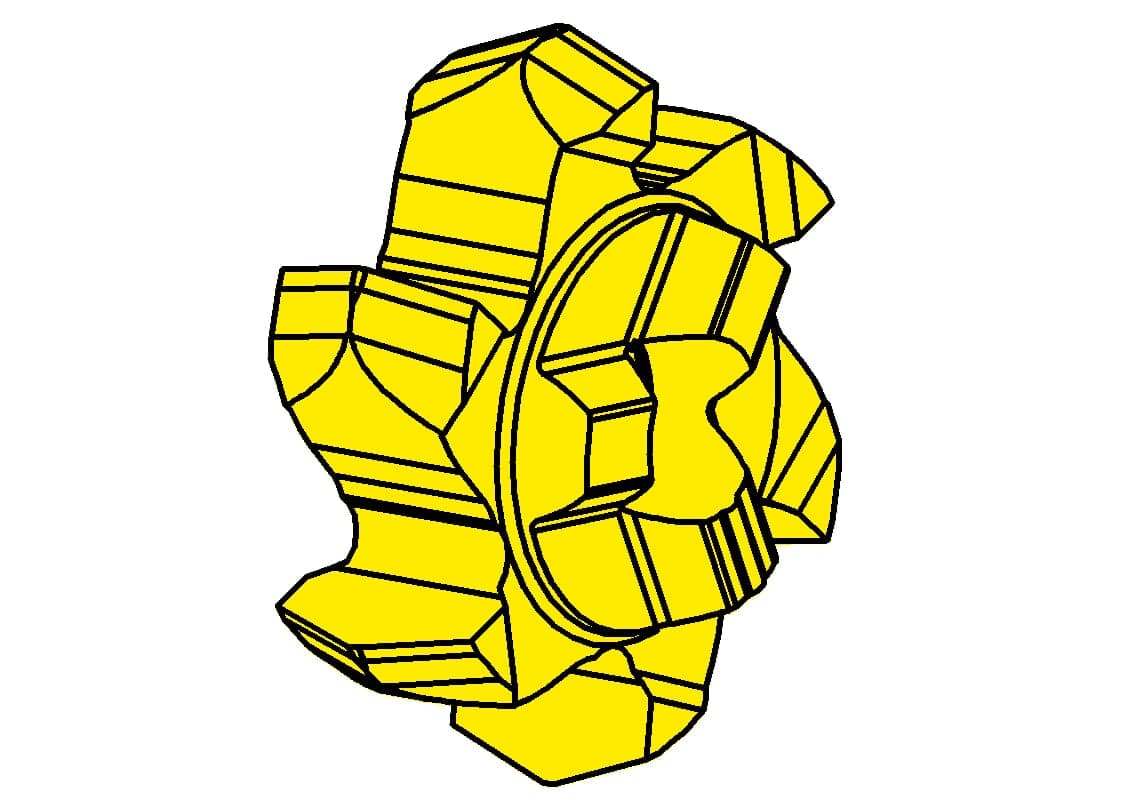

1 / 2: HORN 606.3030.20 TA45
Chamfer milling - both sides| Angle of chamfer (α) | 30 |
|---|---|
| Chamfer with maximum (b) | 1.5 |
| Cutting diameter (Ds) | 11.7 |
| Cutting insert thickness to cutting edge, setting | 3.7 |
| Number of teeth (Z) | 6 |
| Setting length (E) | 1.9 |
| Width of groove (w) | 0.2 |
| number-of-teeth |
Henter tekniske filer …
Kategorier:606.3030.20 with bevel angle 30
Henter matchende værktøj…
| 6 |
