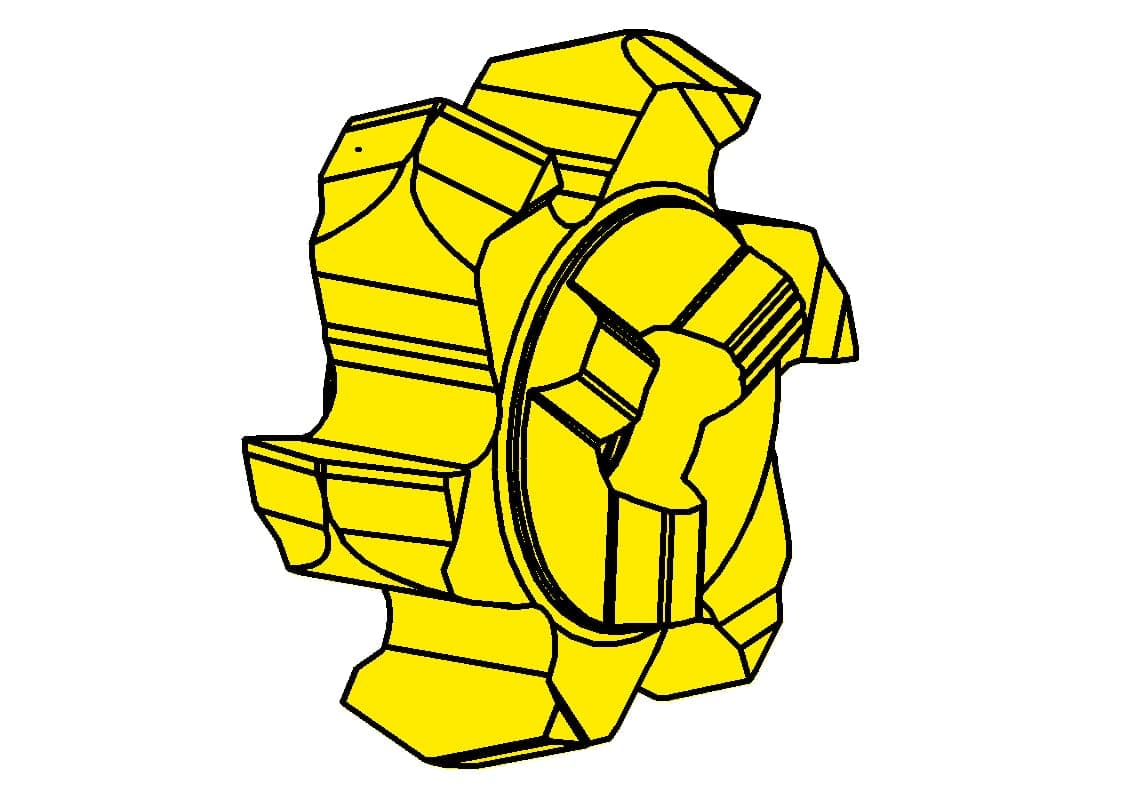

608.1515.20 with bevel angle 15
1 / 2: HORN 608.1515.20 TA45
Chamfer milling
Chamfer milling

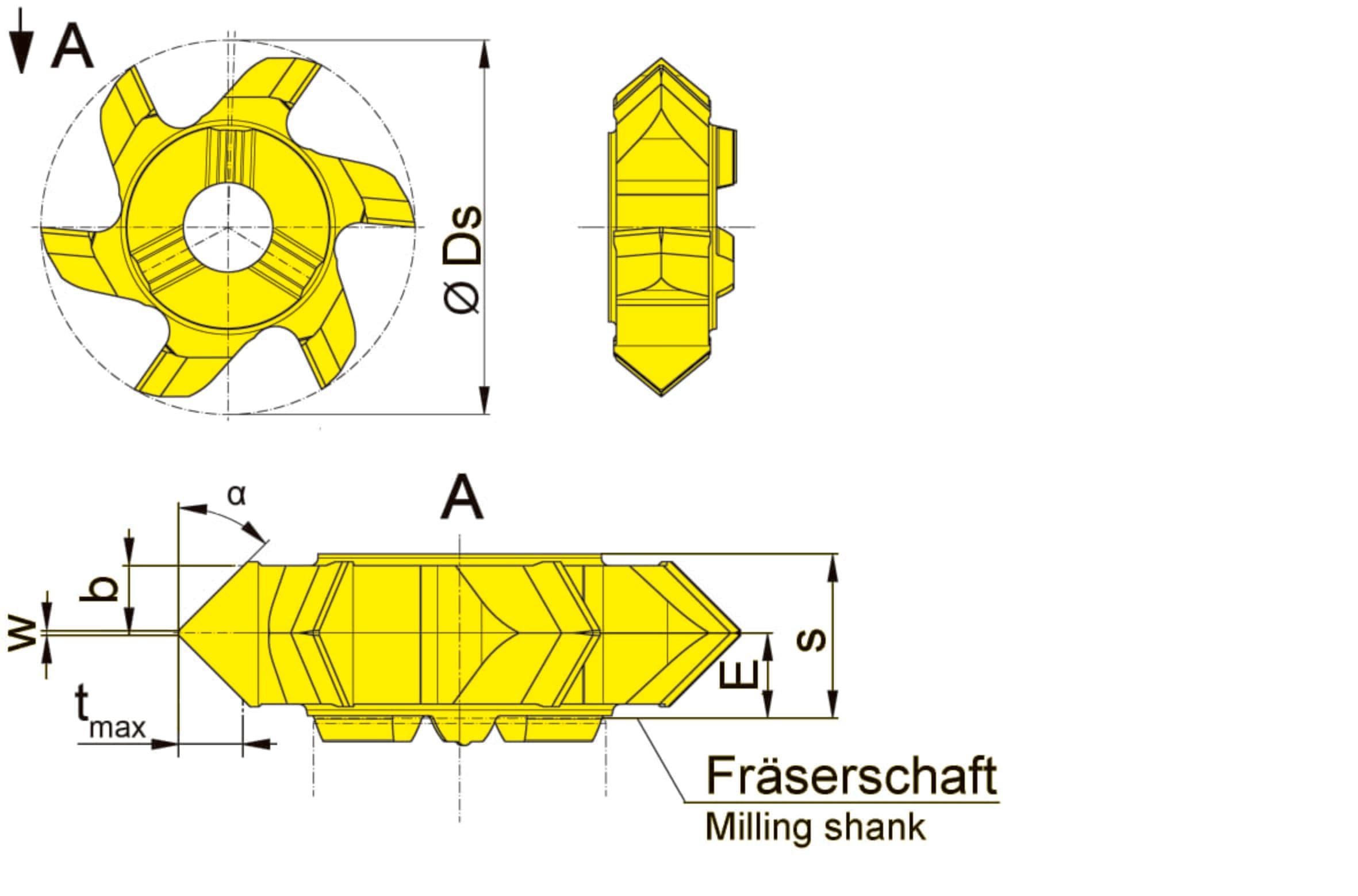

Number of teeth Z6| Angle of chamfer (α) | 15 |
|---|---|
| Chamfer size (tmax) | 0.6 |
Henter tekniske filer …
Kategorier:608.1515.20 with bevel angle 15
Henter matchende værktøj…
| Chamfer with maximum (b) |
|---|
| 2.2 |
| Cutting diameter (Ds) | 15.7 |
|---|
| Cutting insert thickness to cutting edge, setting | 5.1 |
|---|
| Number of teeth (Z) | 6 |
|---|
| Setting length (E) | 2.6 |
|---|
| Width of groove (w) | 0.2 |
|---|
| number-of-teeth | 6 |
|---|
