Cutting inserts 608 Thread milling Whitworth

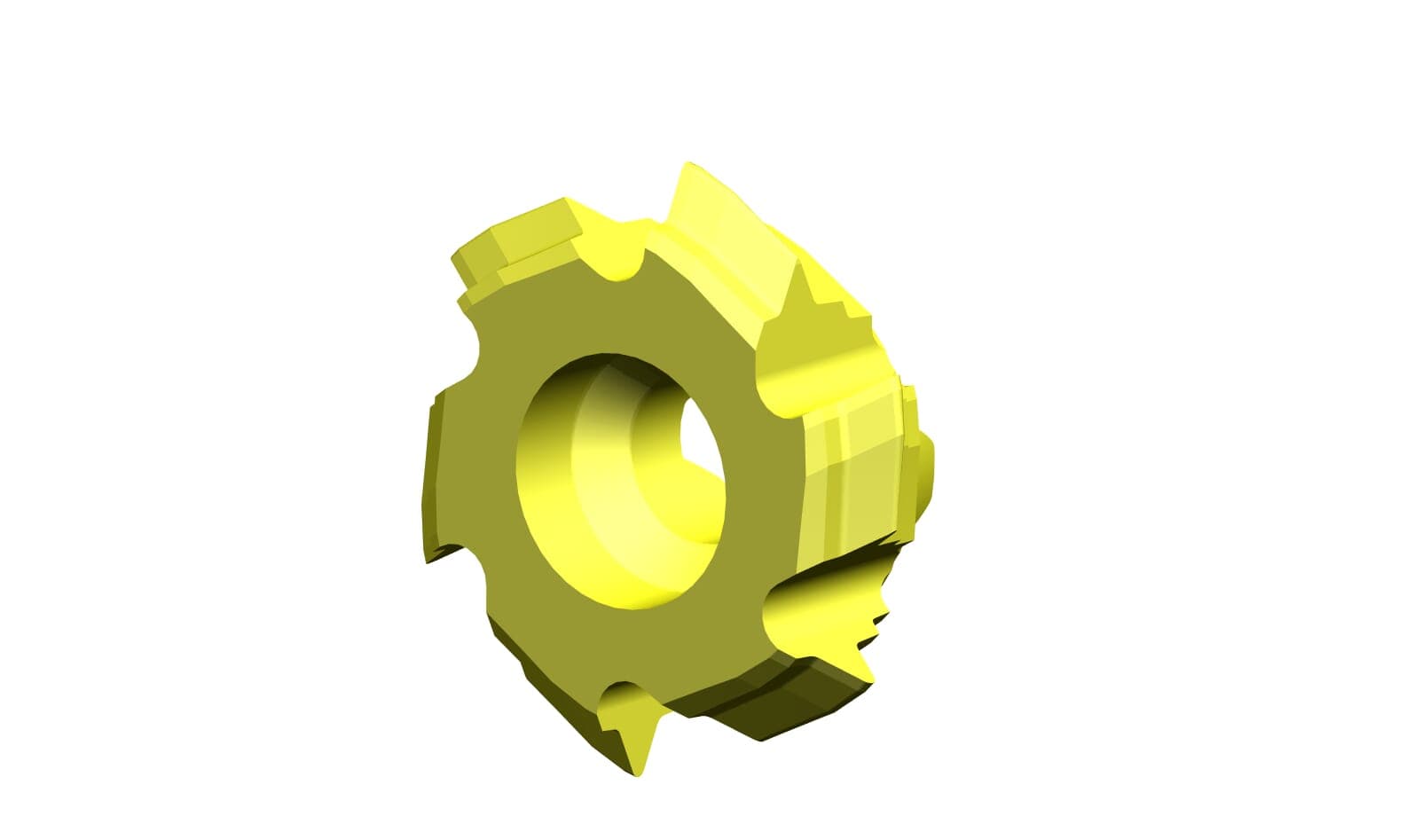

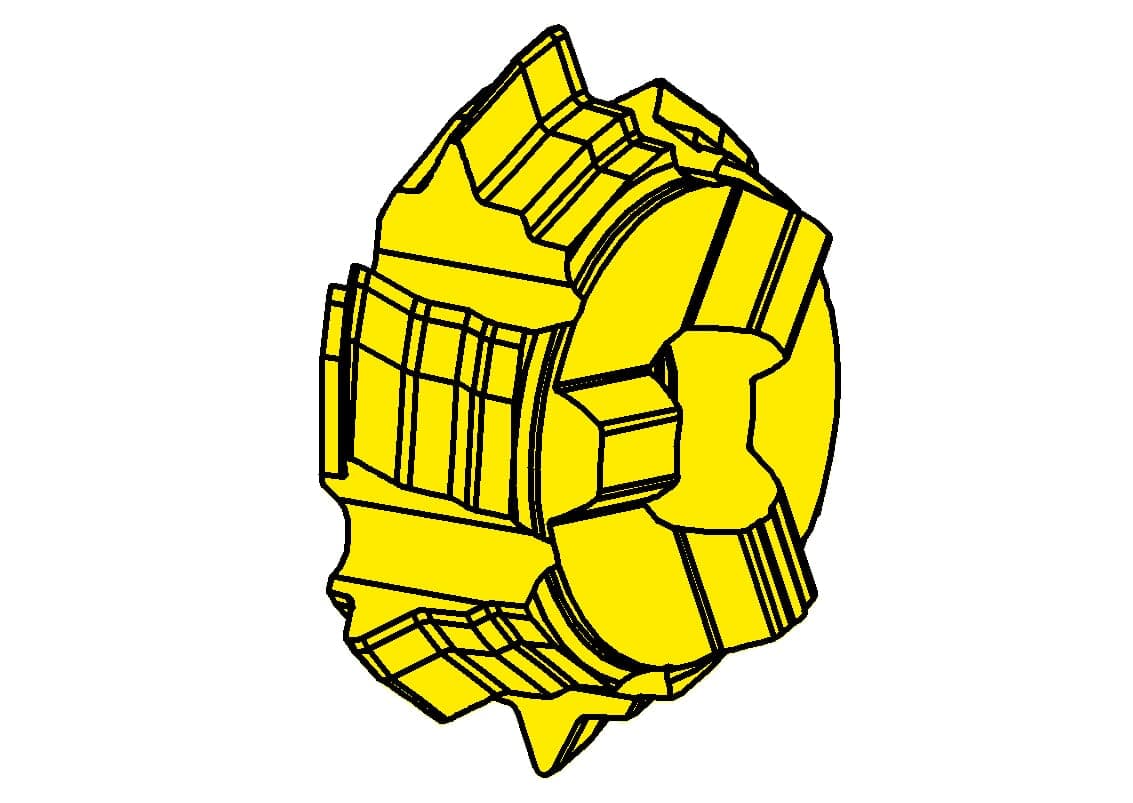

1 / 2: HORN 608.5514.02 TA45

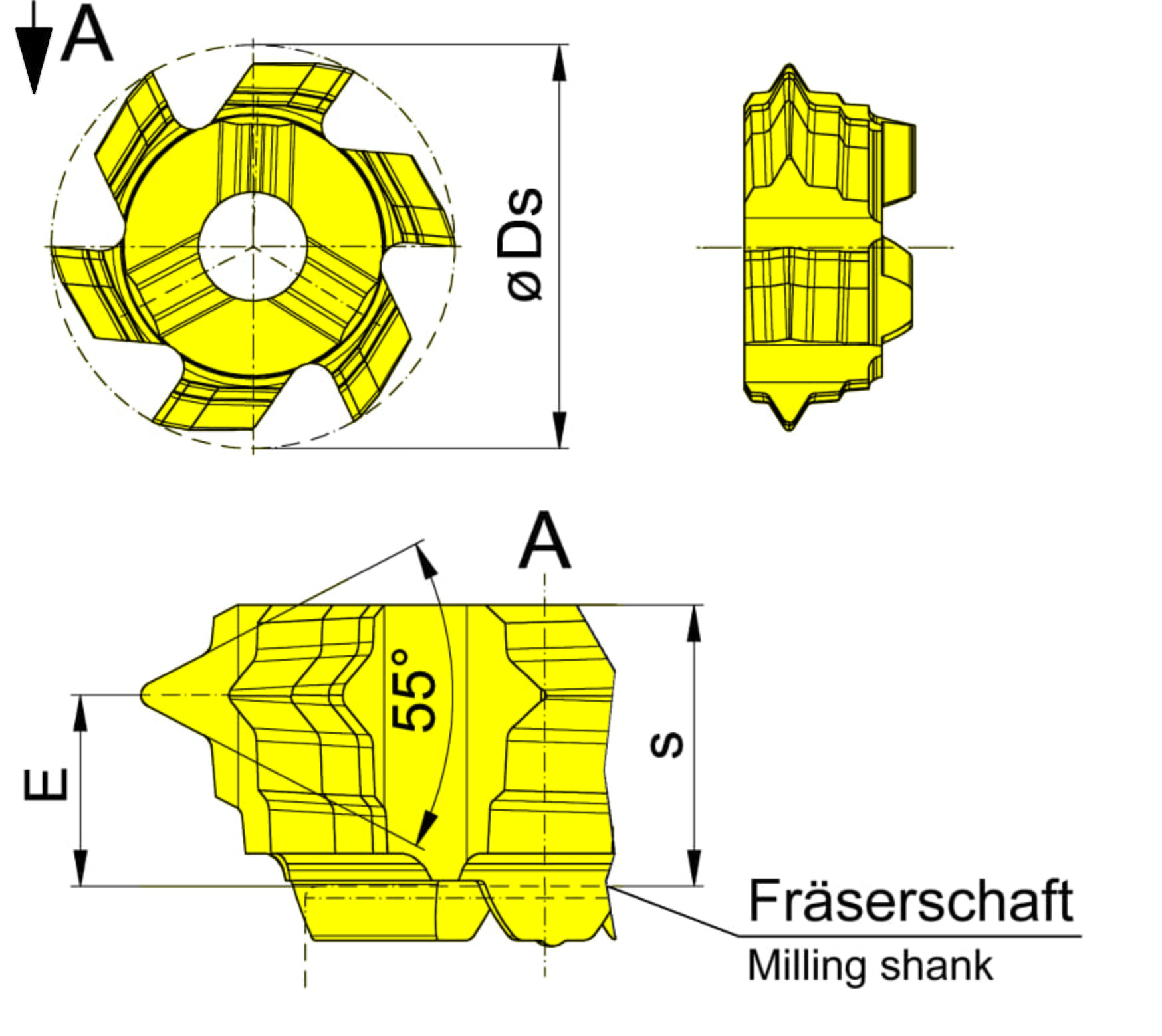

Whitworth thread| Cutting diameter (Ds) | 13.5 |
|---|---|
| Cutting insert height, Cutting insert thickness (s) | 4.7 |
| Number of teeth (Z) | 6 |
| Setting length (E) | 3.2 |
| Threads per inch (TPI) | 14 |
| cutting edge diameter met | 13.5 |
| cutting insert height met | 4.7 |
| number-of-teeth |
Henter tekniske filer …
Kategorier:Cutting inserts 608 Thread milling Whitworth
Henter matchende værktøj…
| 6 |
| thread per inch | 14 |
|---|
