611.4545.20 with bevel angle 45

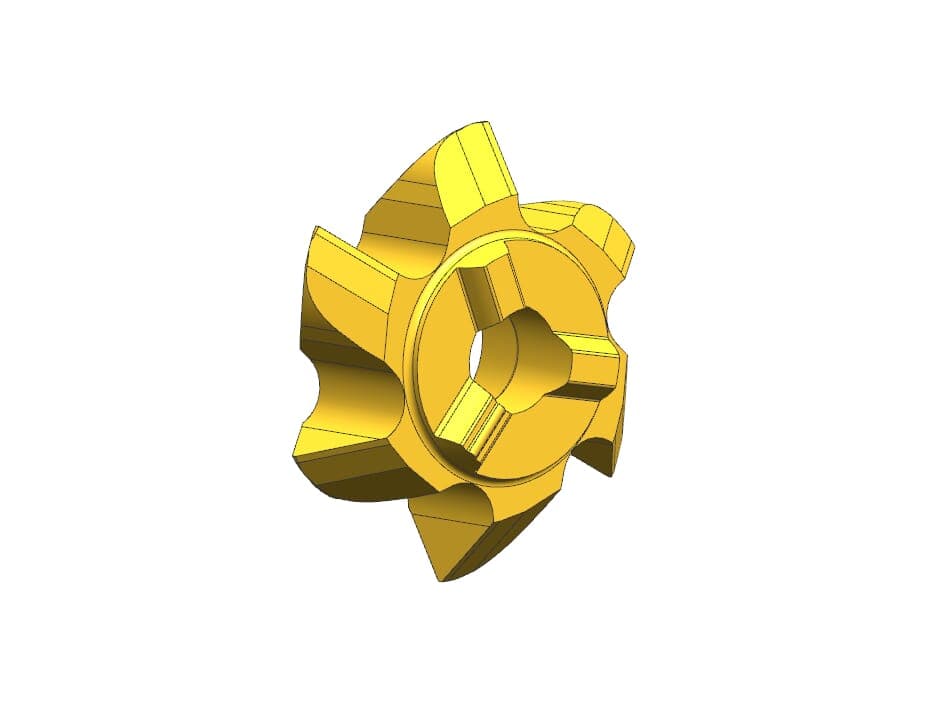

1 / 2: HORN 611.4545.20 TI25
Chamfer milling - both sides| Angle of chamfer (α) | 45 |
|---|---|
| Chamfer size (tmax) | 2.3 |
| Chamfer with maximum (b) | 2.3 |
| Cutting diameter (Ds) | 17.7 |
| Cutting insert thickness to cutting edge, setting | 6.3 |
| Number of teeth (Z) | 6 |
| Setting length (E) | 3.2 |
| Width of groove (w) |
Henter tekniske filer …
Kategorier:611.4545.20 with bevel angle 45
Henter matchende værktøj…
| 0.2 |
| number-of-teeth | 6 |
|---|
