613.2020.20 with bevel angle 20

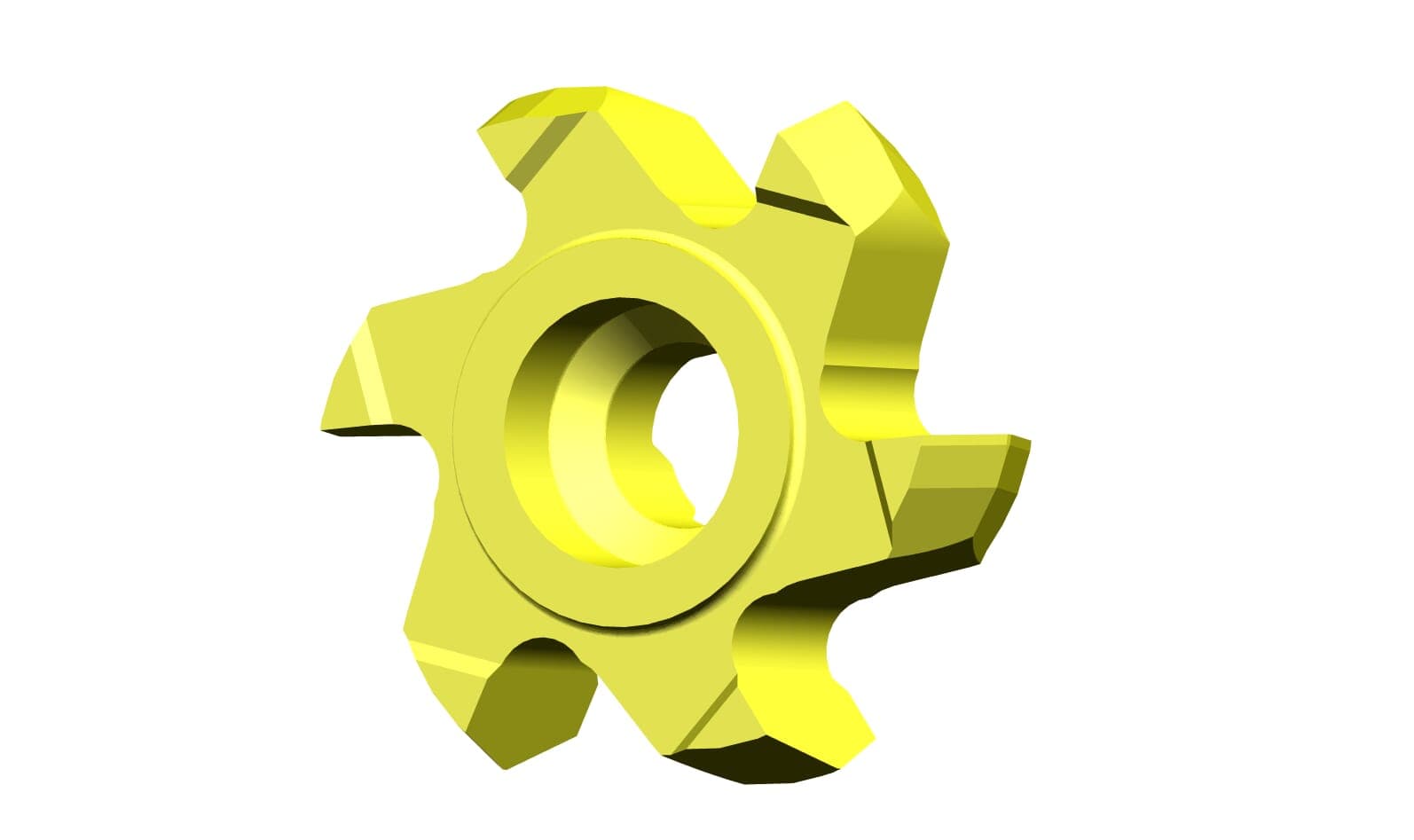

1 / 2: HORN 613.2020.20 TA45
Chamfer milling
Chamfer milling
Number of teeth Z6| Angle of chamfer (α) | 20 |
|---|---|
| Chamfer size (tmax) | 1 |
Henter tekniske filer …
Kategorier:613.2020.20 with bevel angle 20
Henter matchende værktøj…
| Chamfer with maximum (b) |
|---|
| 2.7 |
| Cutting diameter (Ds) | 21.7 |
|---|
| Cutting insert thickness to cutting edge, setting | 6.3 |
|---|
| Number of teeth (Z) | 6 |
|---|
| Setting length (E) | 3.3 |
|---|
| Width of groove (w) | 0.2 |
|---|
| number-of-teeth | 6 |
|---|
