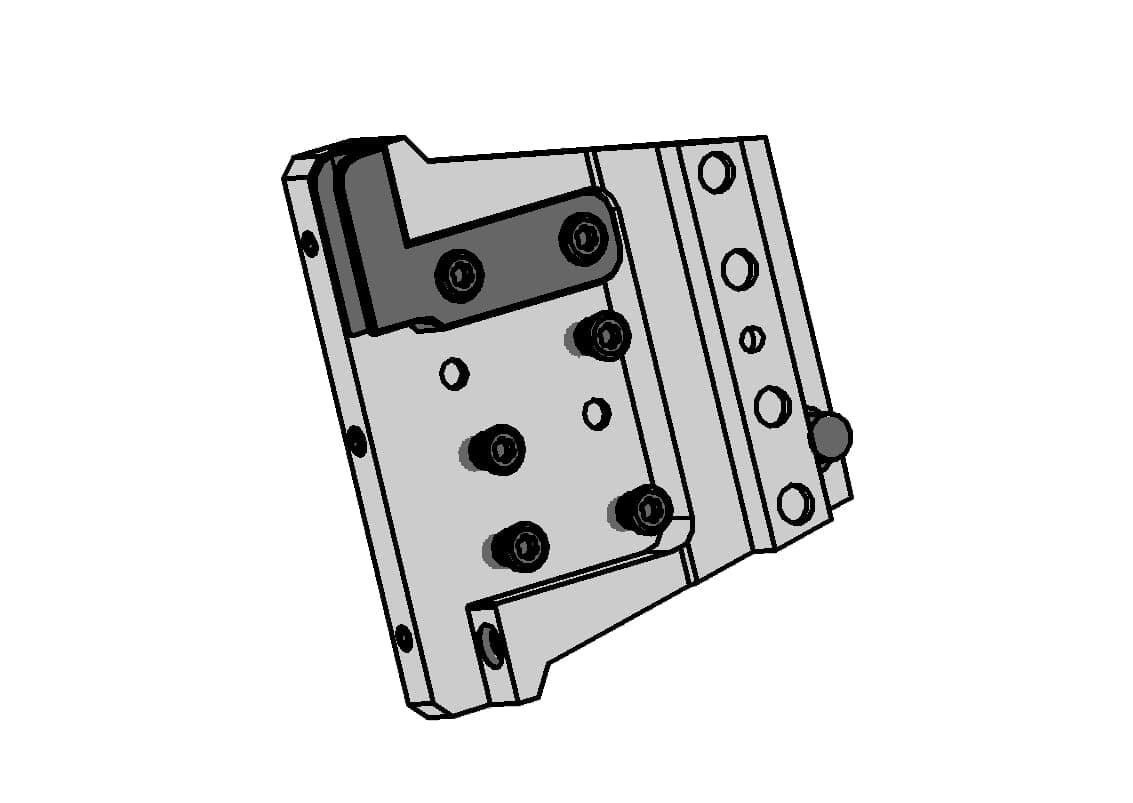

Grooving toolholder system 960 for cassettes 842
Parting-off
External grooving
Internal cooling| Cassette system from the middle (h1) | 21 |
|---|---|
| Cutting insert width (b1) |
Henter tekniske filer …
Kategorier:Grooving toolholder system 960 for cassettes 842
Henter matchende værktøj…
| 45.5 |
| Dimension center to outer edge holder (h2) | 36.5 |
|---|
| Dimension locating face to radius basic holder (l4 | 49.5 |
|---|
| Dimension to outer edge grooving holder (l3) | 55 |
|---|
| Radius grooving holder (r1) | 70 |
|---|
| System cassette outer edge to grooving holder (b2) | 10.2 |
|---|
| System grooving holder to system cassette (b1) | 8.7 |
|---|
