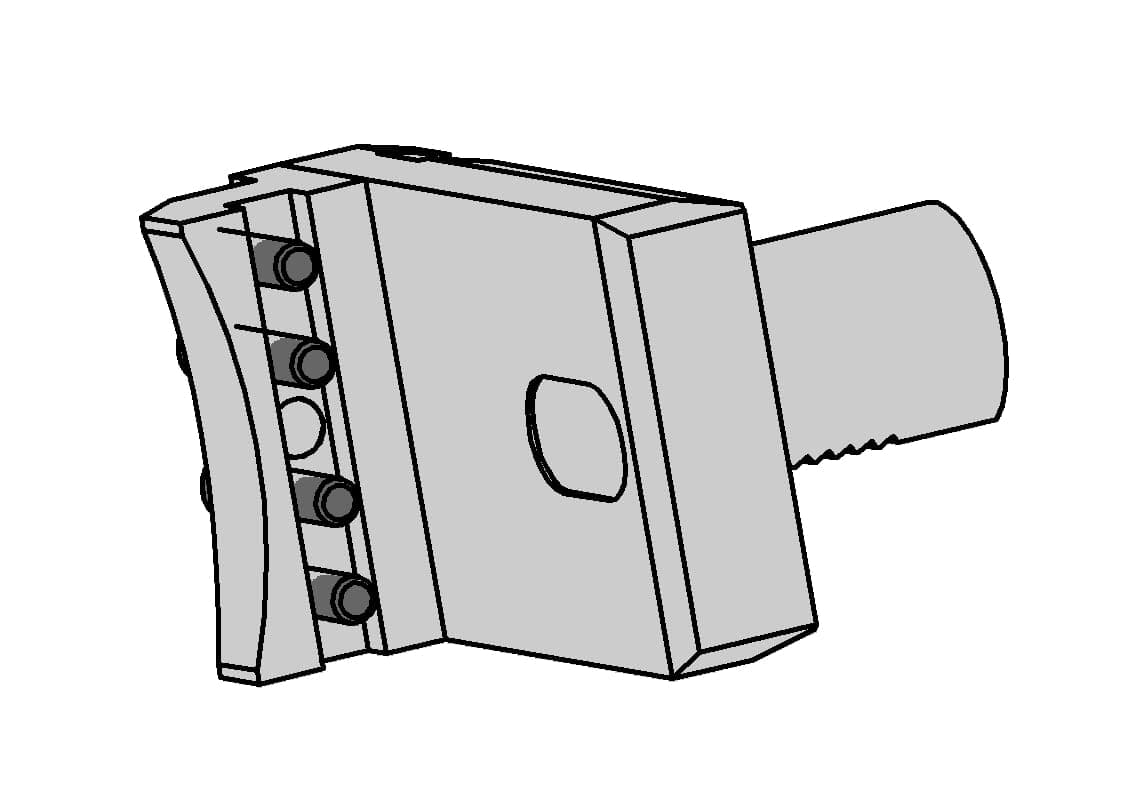

Basic toolholder 960.MAZ...C (star turrets)
Parting-off
External grooving

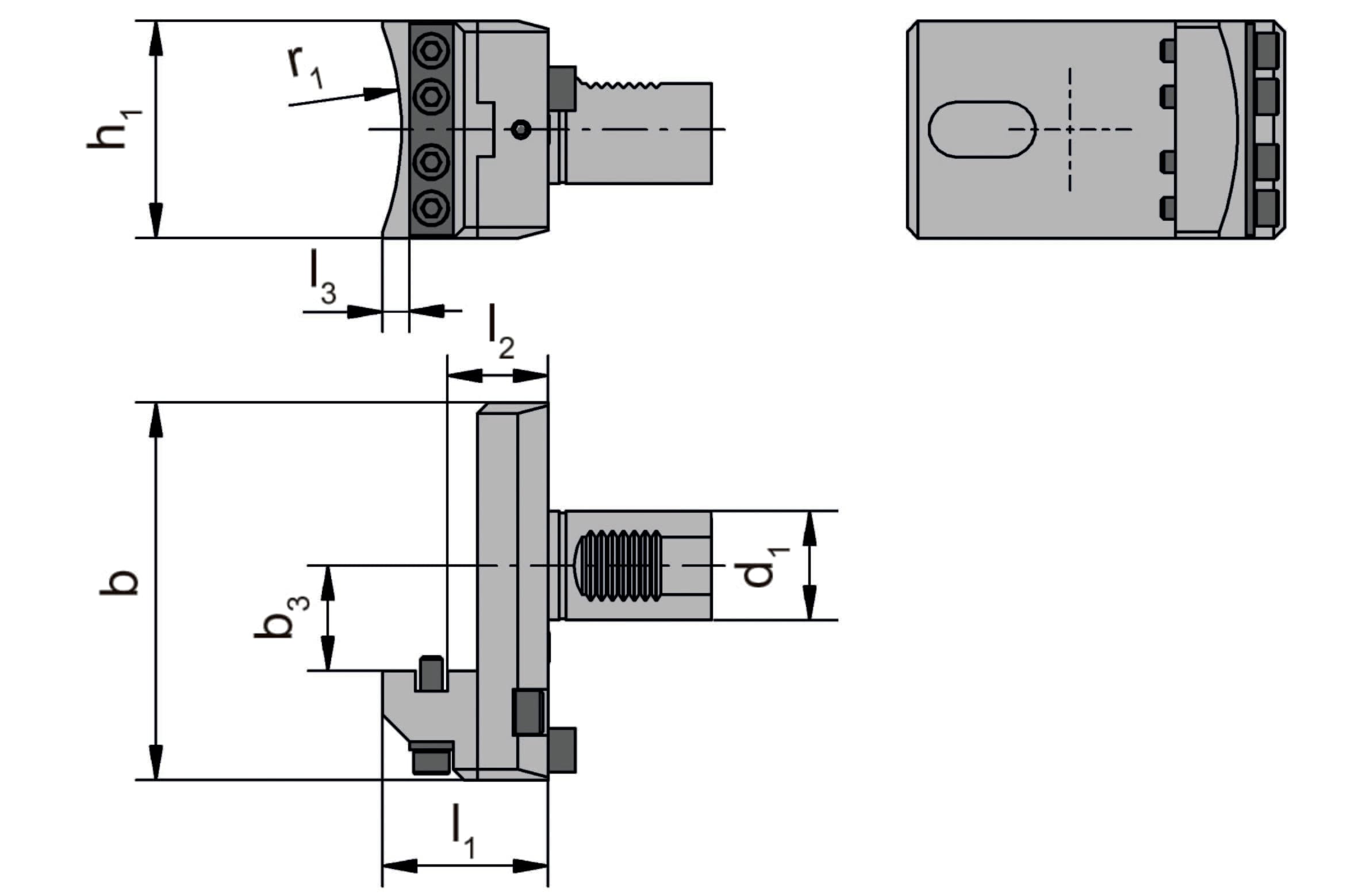

Internal cooling| Dimension center to facingsystemgroovingholder(b3) | 63 |
|---|---|
| Dimension machine end to locating face holder (l1) |
Henter tekniske filer …
Kategorier:Basic toolholder 960.MAZ...C (star turrets)
Henter matchende værktøj…
| 34 |
| Radius basic holder (r1) | 88 |
|---|
| Shank diameter (d1) | 40 |
|---|
| Total length (l) | 58 |
|---|
| Total length (l1) | 58 |
|---|
| basic holder height met | 78 |
|---|
| basic holder width met | 142 |
|---|
| dim facing system to radius basic holer met | 6 |
|---|
