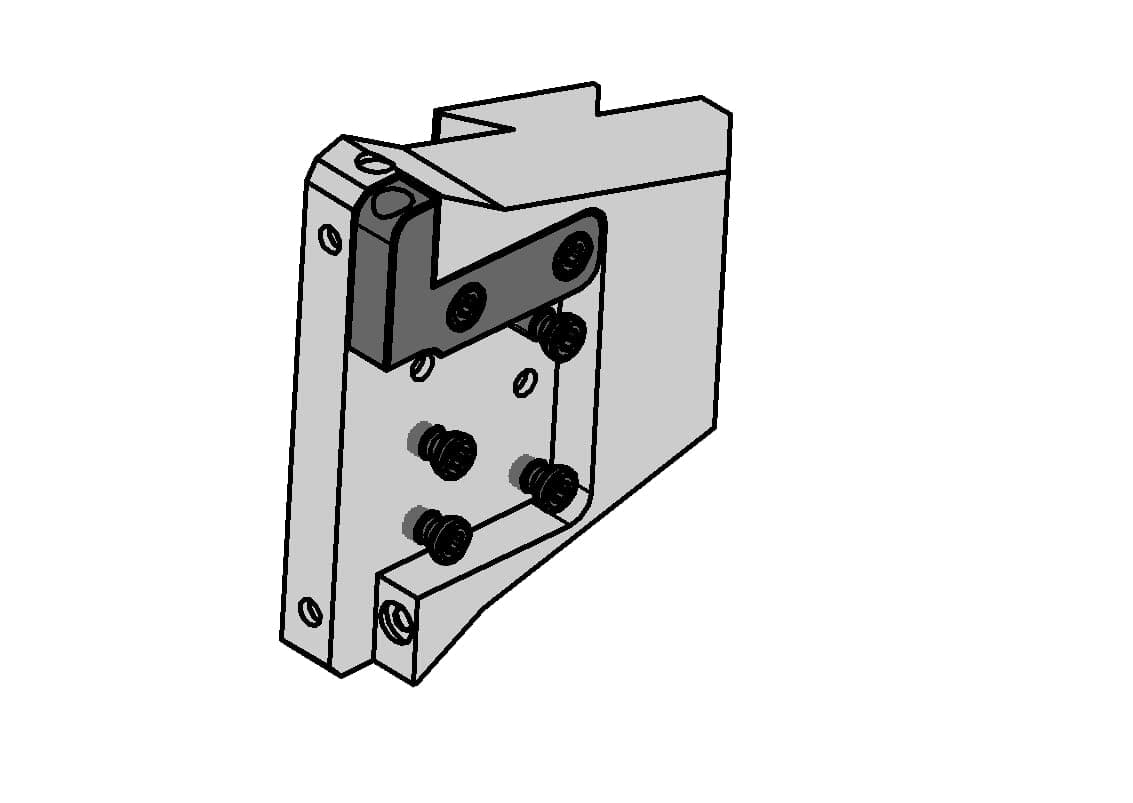

Grooving toolholder system 960 for cassettes 842
Parting-off
External grooving

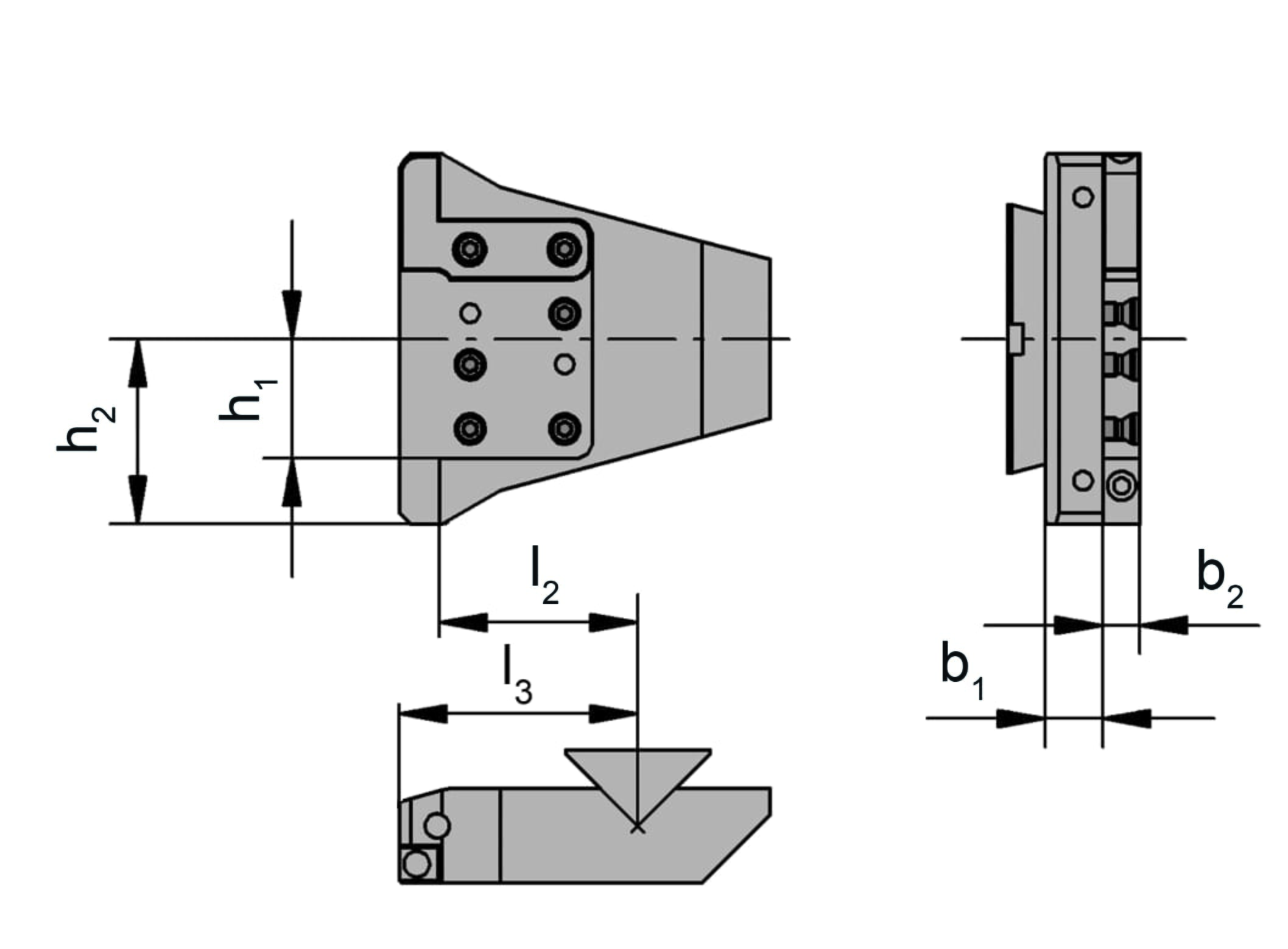

Internal cooling| Cassette system from the middle (h1) | 31.65 |
|---|---|
| Cutting insert width (b1) |
Henter tekniske filer …
Kategorier:Grooving toolholder system 960 for cassettes 842
Henter matchende værktøj…
| 35.5 |
| Dimension center to outer edge holder (h2) | 49 |
|---|
| Dimension to outer edge grooving holder (l3) | 50 |
|---|
| Radius grooving holder (r1) | 85 |
|---|
| System cassette outer edge to grooving holder (b2) | 9.8 |
|---|
| System grooving holder to system cassette (b1) | 15.2 |
|---|
