Internal cooling

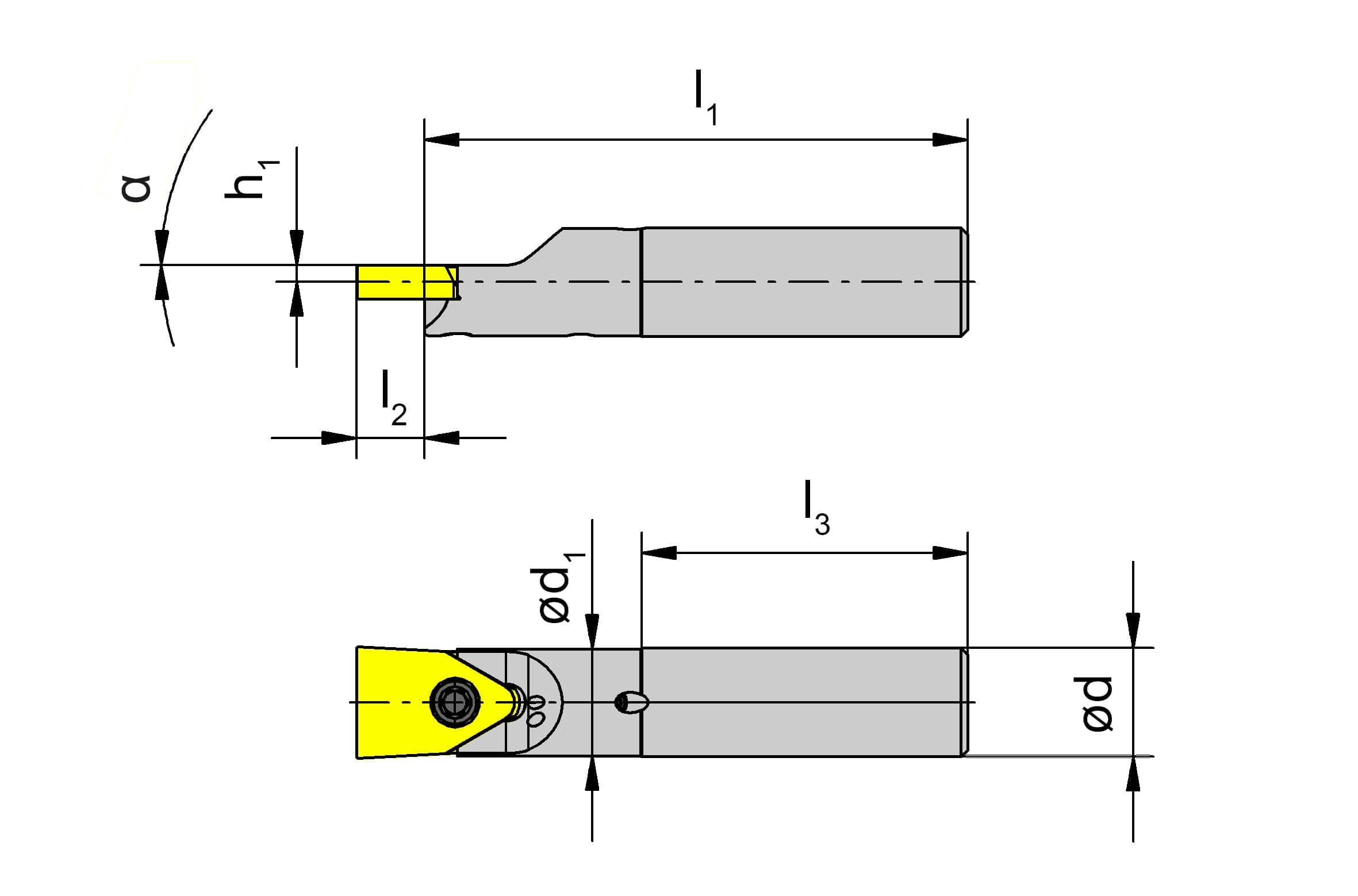

Shank DIN1835-A| Clamping_ shank diameter (d) | 16 |
|---|---|
| Diameter (d1) | 19.8 |
| Distance to the center of the cutting edge (h1) | 2.5 |
| Head diameter (d1) | 19.8 |
| Insertion angle (α) |
Henter tekniske filer …
Henter matchende værktøj…
| 0 |
| Semi finished insert (Schneidplatte) | D117.0020.02.5.00 |
|---|
| Shank length (l2) | 47 |
|---|
| Shank length (l3) | 47 |
|---|
| Shank, clamping diameter (d) | 16 |
|---|
| Total length (including cutting insert) (l1) | 87 |
|---|
| Total length (l) | 87 |
|---|
| Working length (l2) | 13 |
|---|
