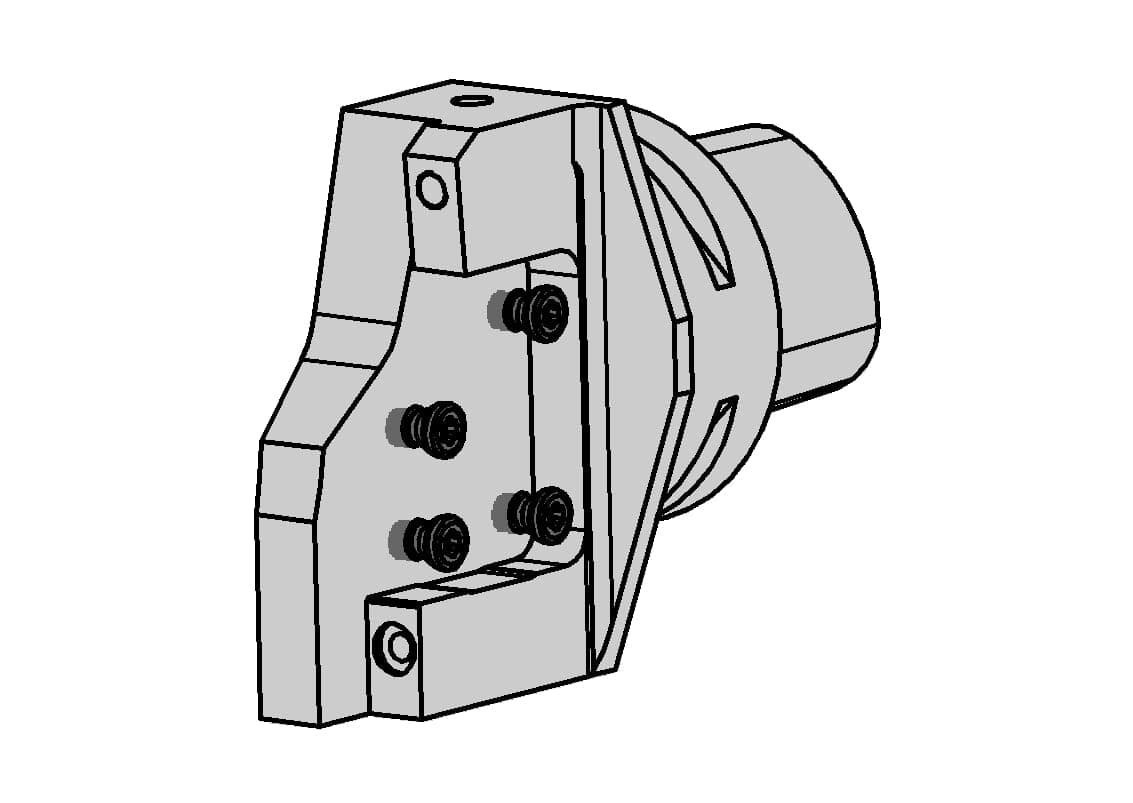

Basic toolholder C...845 (polygon shank)
Grooving and side turning
Parting-off
External copy turning
External groovingHenter tekniske filer …
Kategorier:Basic toolholder C...845 (polygon shank)
Henter matchende værktøj…

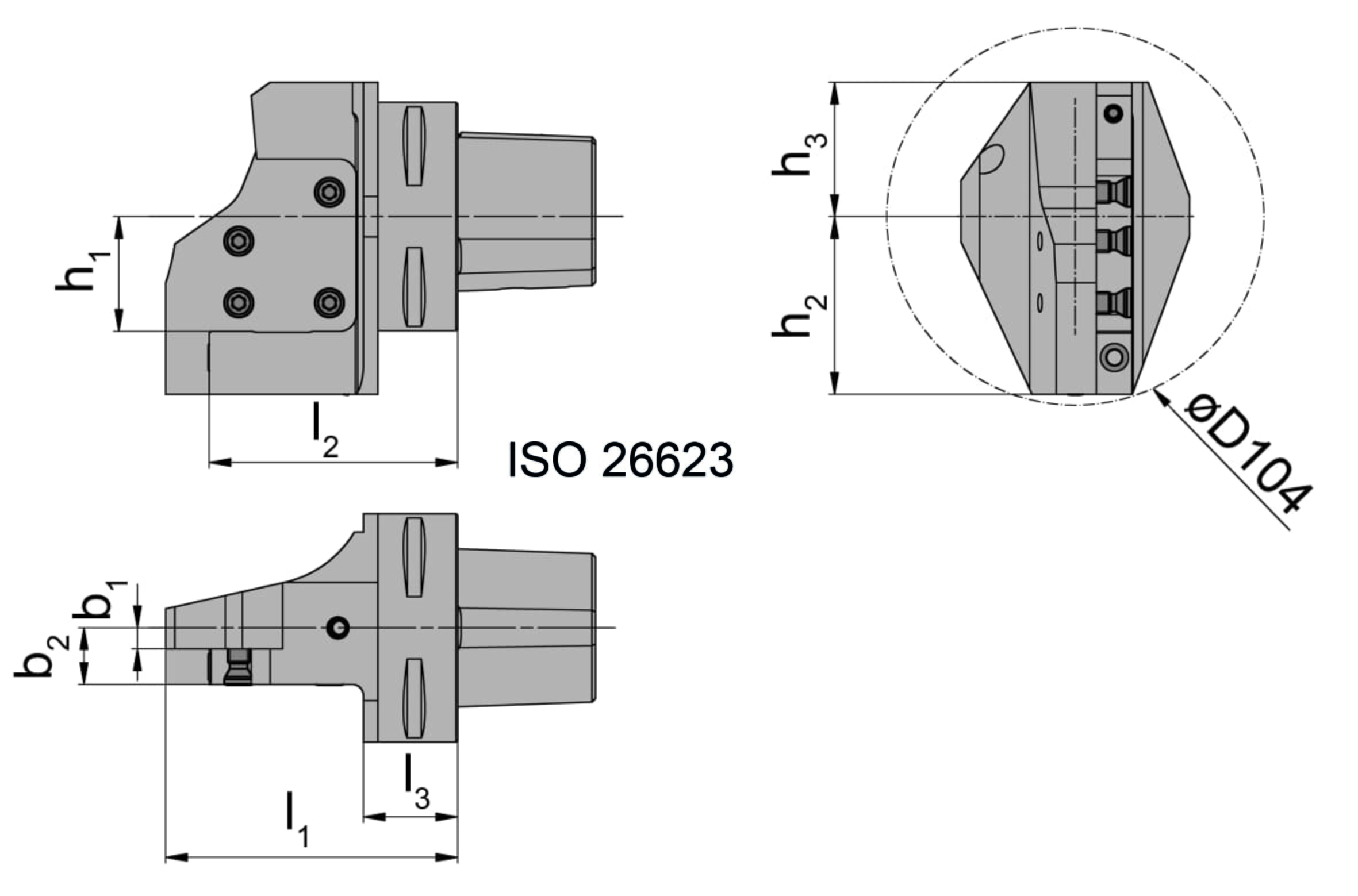

| Cassette system from the middle (h1) | 31.65 |
|---|---|
| Cutting insert width (b1) | 68.5 |
| Dimension center to locating face cassette (b1) | 5.8 |
| Dimension center to lower side of holder (h2) | 49 |
| Dimension center to upper side of holder (h3) | 37 |
| Flange thickness (l3) | 22 |
| System cassette outer edge to grooving holder (b2) | 15.6 |
