| _application | /conversions/CCGT09T304NHS_PICTO.JPG |
|---|---|
| _icon | aussen_kopierdrehen.jpg; aussen_laengsdrehen.jpg; geometrie_hn.jpg; pkd.jpg |

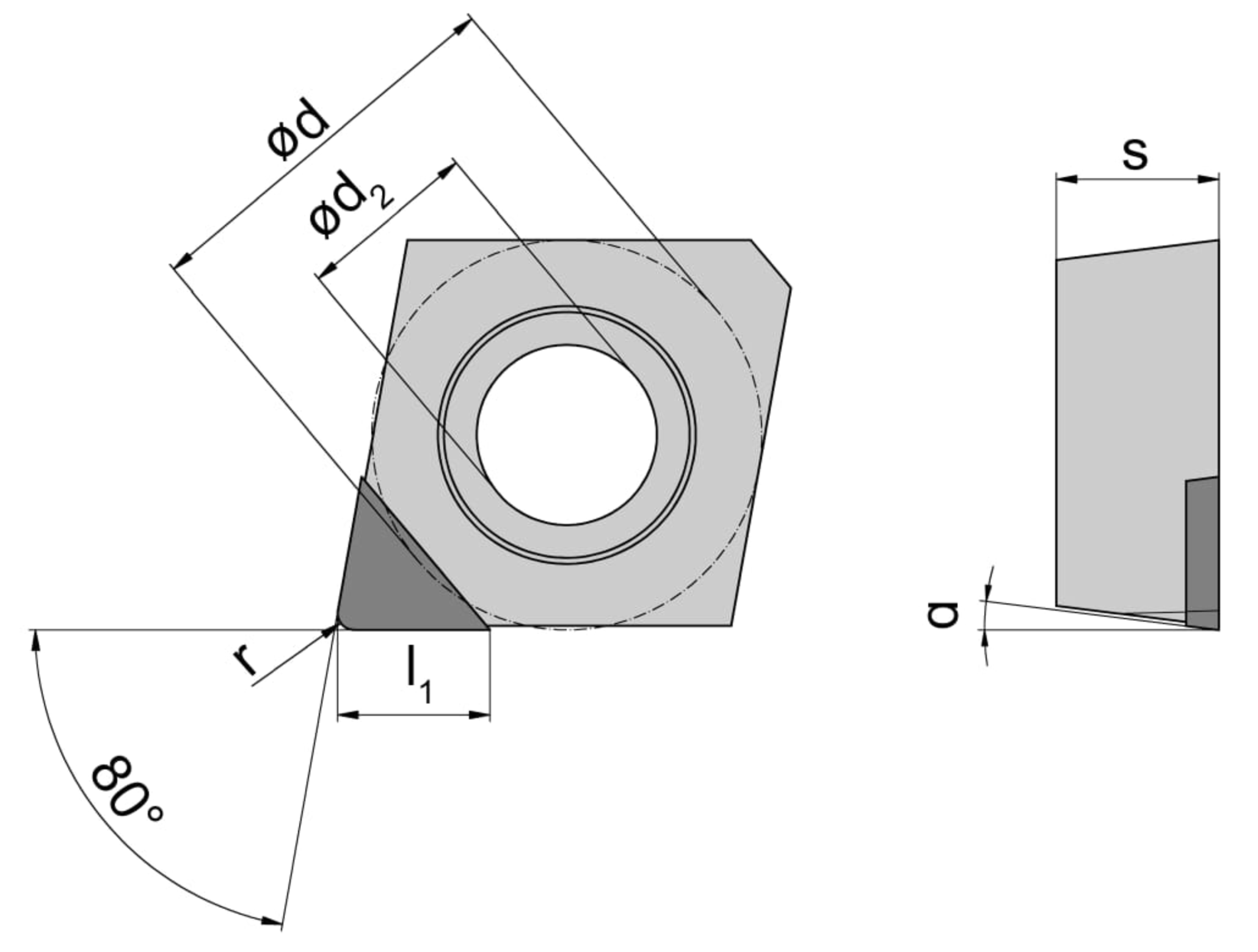

| _drawing | /conversions/CCGTNH_20170127_184130977.JPG |
| Cutting insert height, Cutting insert thickness (s) | 2.38 |
| Corner radius (r) | 0.4 |
| eclass shortcut | 21-18-20-11 |
| eclass | 21-18-20-11:Wechselplatte (ADR158005) |
| Bore diameter (d2) | 2.8 |
| DIN_SSC | CC0602043N |
| Effective cutting length (w) | 3 |
| ISO-SSC | ISO$CC0602043NB$$04 |
| Inner circle diameter (d2) | 6.35 |
| productnr-sap | CCGT060204NHNPD70 |
| Free angle (α) | 7 |
