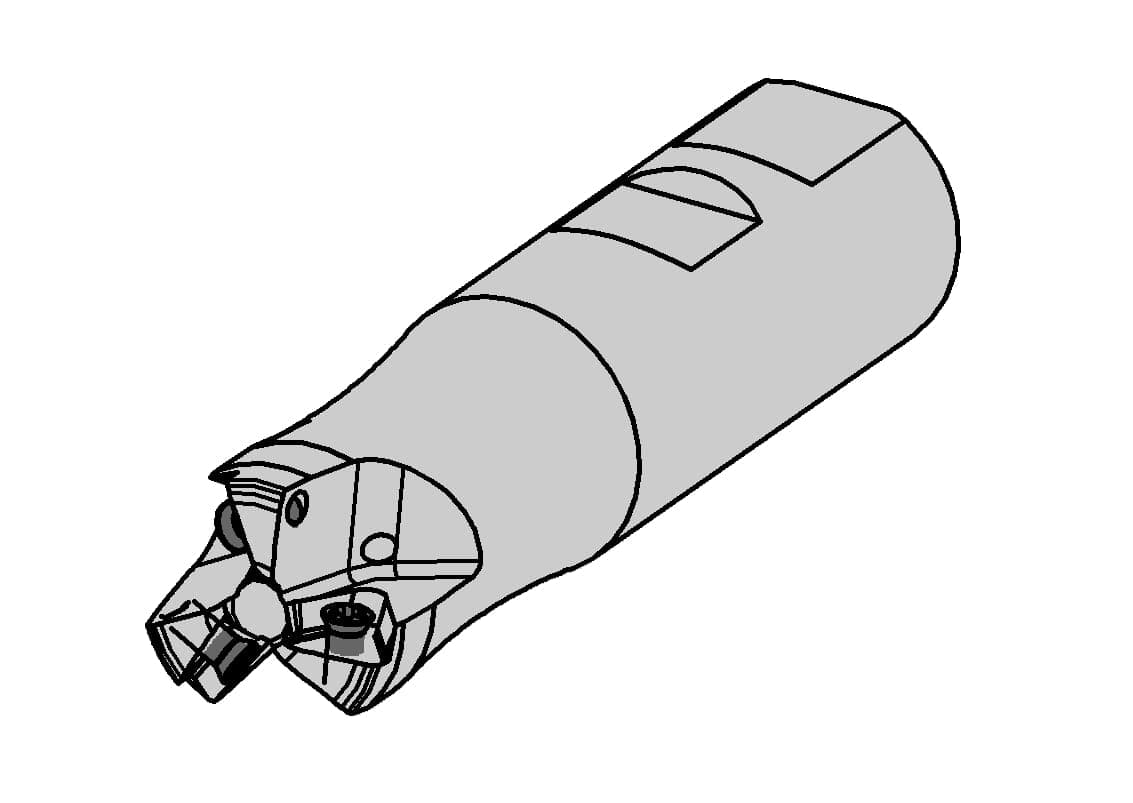

DAHM high-feed milling cutter shank

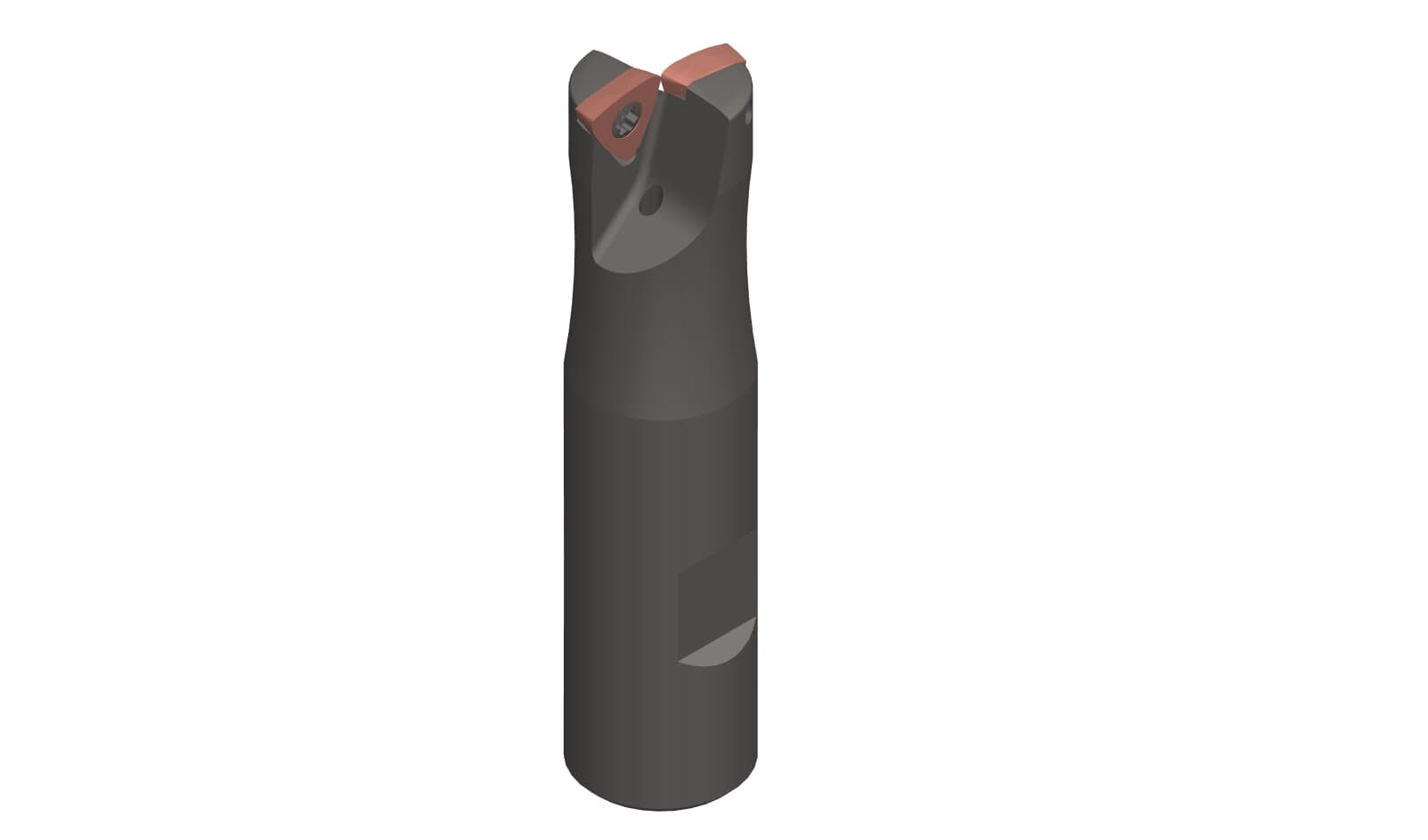

1 / 2: HORN DAHM 37.020.D204.02B
Face milling
Helical interpolation
Ramp immersion
Internal cooling
Henter tekniske filer …
Kategorier:DAHM high-feed milling cutter shank
Henter matchende værktøj…
| Cutting depth (ap) | 1.2 |
|---|---|
| Cutting diameter (Ds) | 20 |
| Neck diameter (d1) | 19 |
| Number of teeth (Z) | 2 |
| Shank diameter (d) | 20 |
| Tension length (l3) | 50 |
| Total length (l) | 87 |
| Total length insert (l1) | 87 |
| Working length, Neck length, Extension length (l3) | 34 |
| number-of-teeth | 2 |
