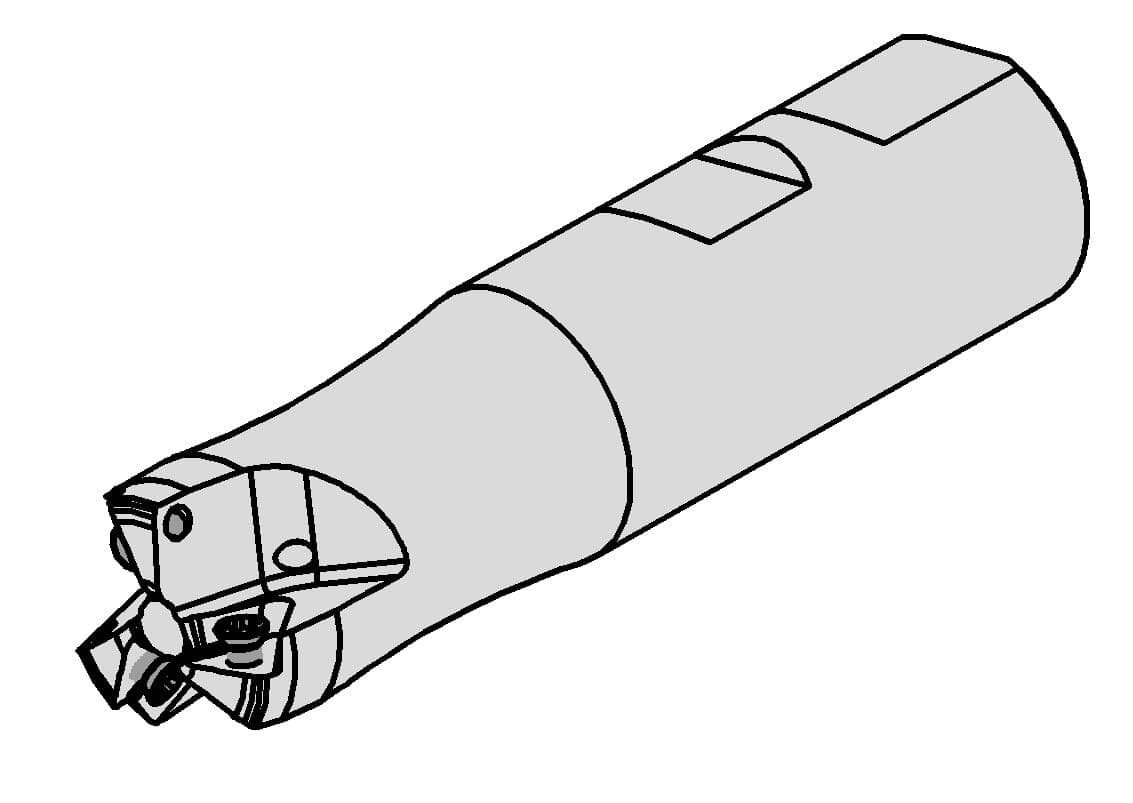

1 / 2: HORN DAHM 37.025.D255.03B
Face milling
Helical interpolation
Ramp immersion
Internal cooling
Henter tekniske filer …
Henter matchende værktøj…

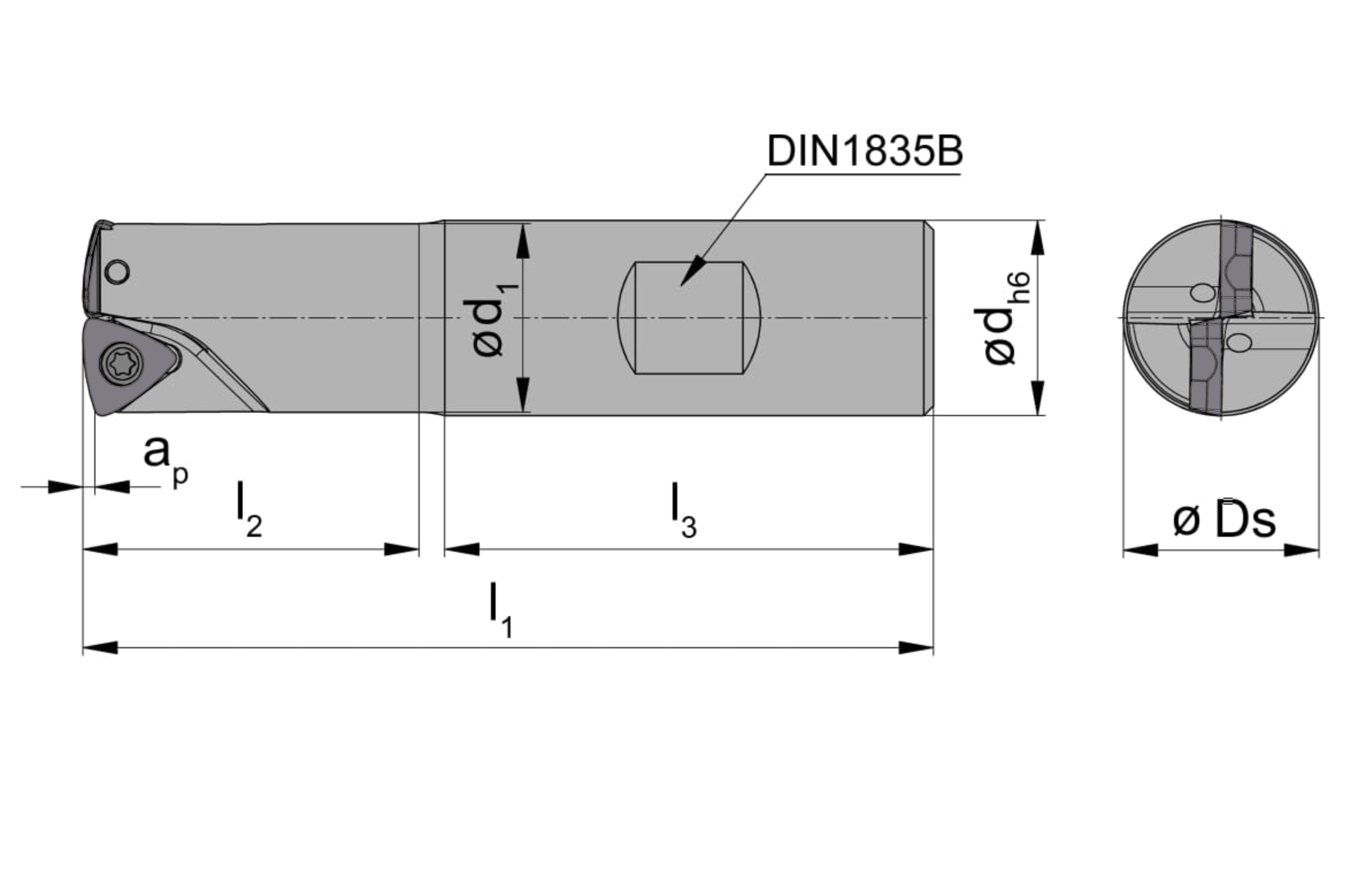

| Cutting depth (ap) | 1.2 |
|---|---|
| Cutting diameter (Ds) | 25 |
| Neck diameter (d1) | 24 |
| Number of teeth (Z) | 3 |
| Shank diameter (d) | 25 |
| Tension length (l3) | 56 |
| Total length (l) | 101 |
| Total length insert (l1) | 101 |
| Working length, Neck length, Extension length (l3) | 41 |
| number-of-teeth | 3 |
