Screw-in milling cutter DAHM holder

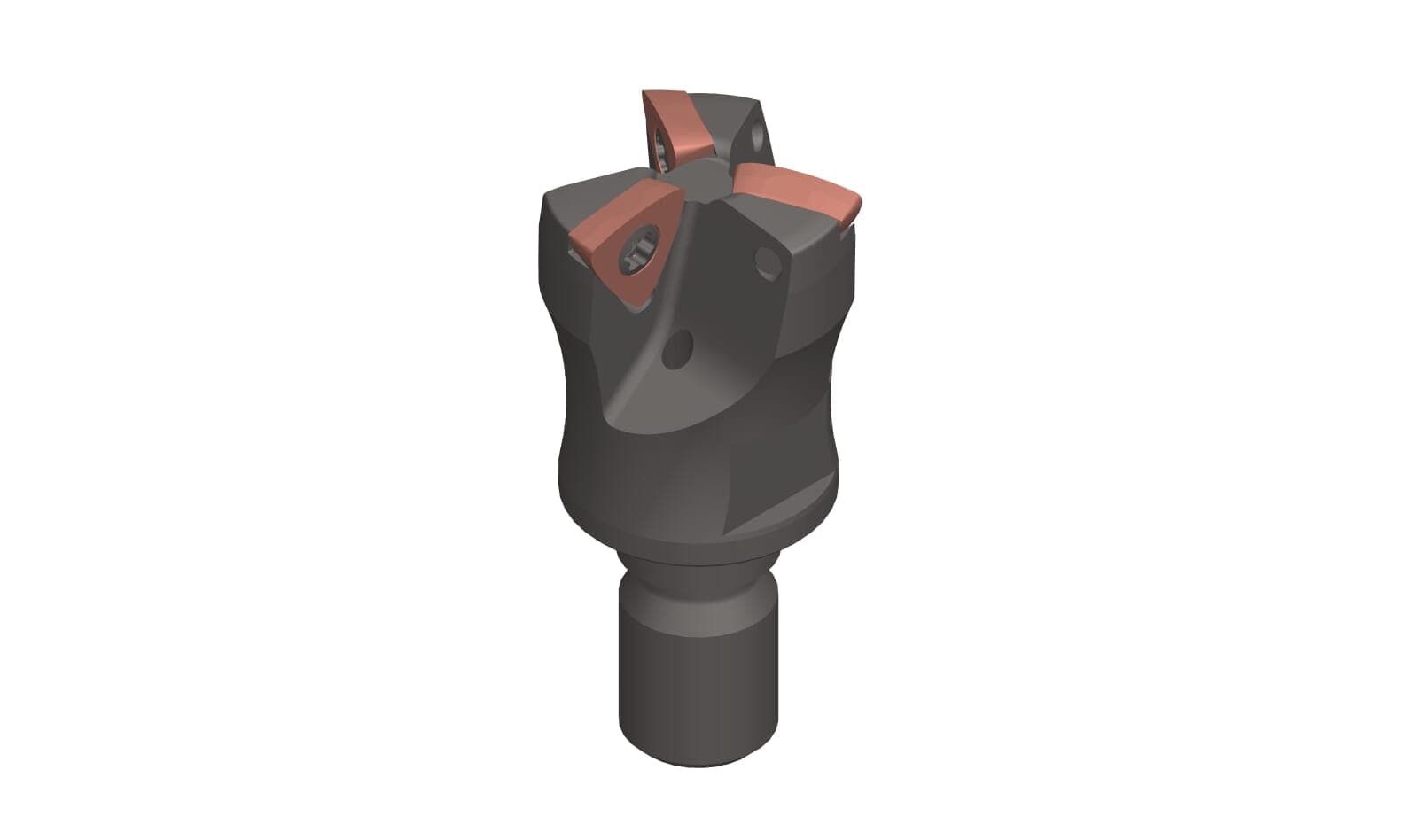

1 / 2: HORN DAHM .37.025.M125.03
Corner cutting
Face milling
Helical interpolation
Ramp immersion
Henter tekniske filer …
Kategorier:Screw-in milling cutter DAHM holder
Henter matchende værktøj…
| Cutting diameter (Ds) | 25 |
|---|---|
| Diameter miller body (d4) | 24 |
| Key range (SW) | 17 |
| Length from stop (l2) | 30 |
| Maximum stepover (ap) (ap) | 1.2 |
| Neck diameter on stop (d4) | 21 |
| Number of teeth (Z) | 3 |
| Screw thread (d2) | M12 |
| Total milling length with insert (h) | 52 |
| number-of-teeth | 3 |
