Screw-in milling cutter DAHM holder

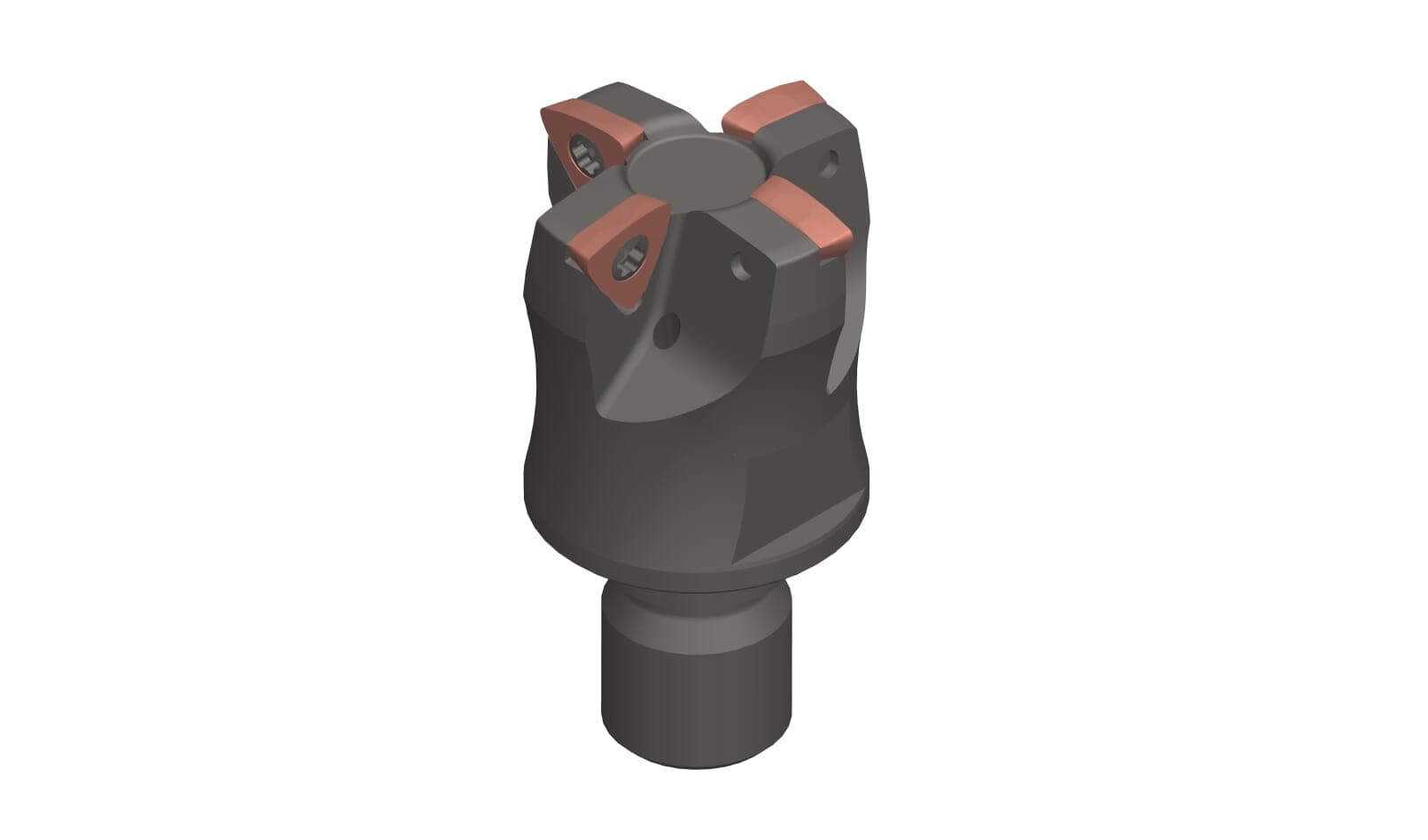

1 / 2: HORN DAHM 37.032.M166.04
Corner cutting
Face milling
Helical interpolation
Ramp immersion
Henter tekniske filer …
Kategorier:Screw-in milling cutter DAHM holder
Henter matchende værktøj…
| Cutting diameter (Ds) | 32 |
|---|---|
| Diameter miller body (d4) | 31 |
| Key range (SW) | 24 |
| Length from stop (l2) | 35 |
| Maximum stepover (ap) (ap) | 1.2 |
| Neck diameter on stop (d4) | 29 |
| Number of teeth (Z) | 4 |
| Screw thread (d2) | M16 |
| Total milling length with insert (h) | 58 |
| number-of-teeth | 4 |
