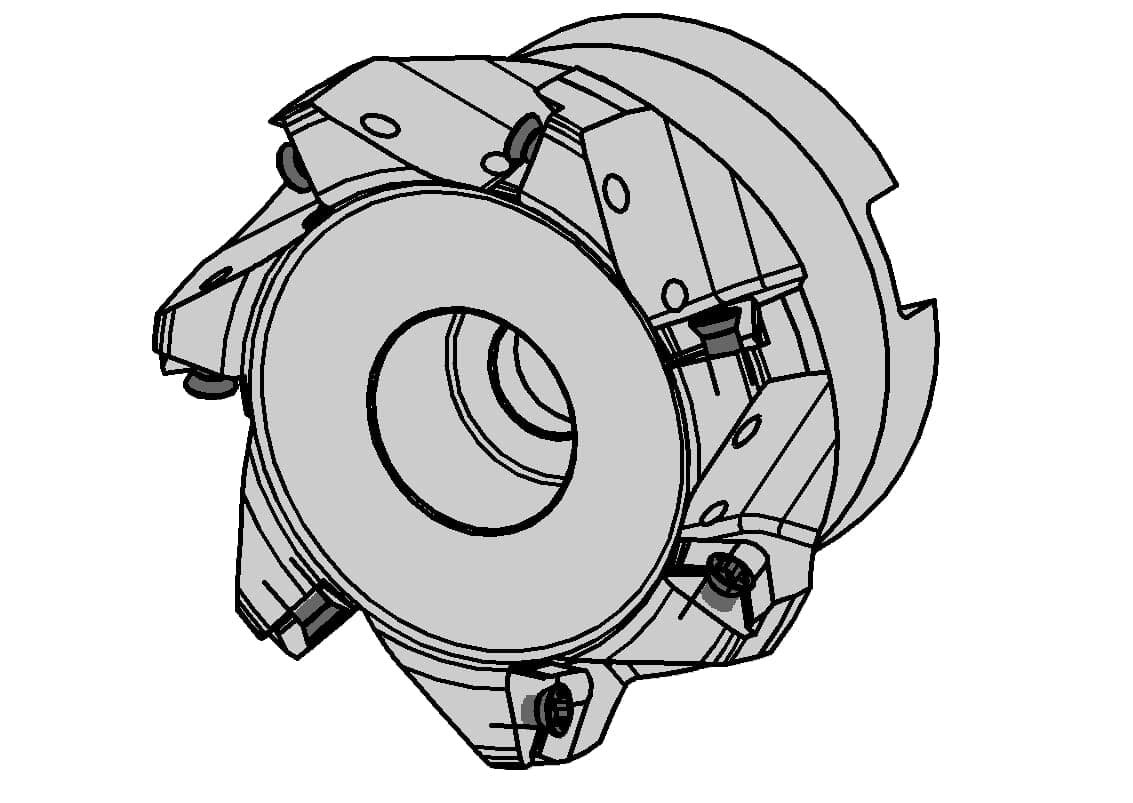

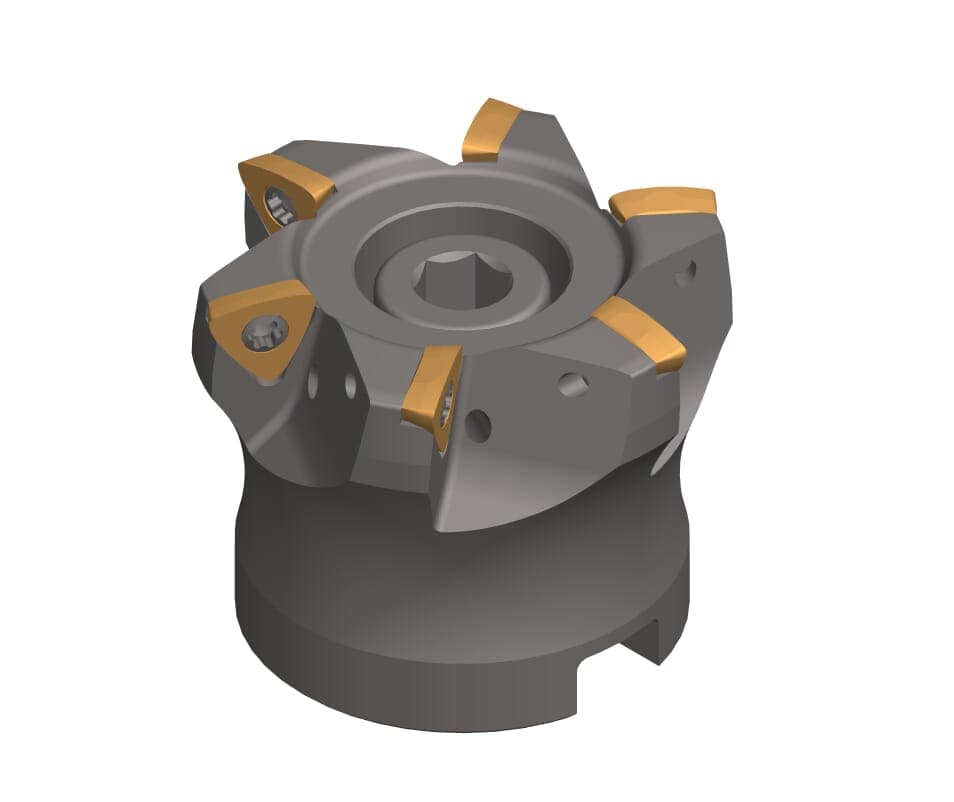

1 / 2: HORN DAHM 37.050.A2235.06
Face milling
Helical interpolation
Ramp immersion
Internal coolingHenter tekniske filer …
Henter matchende værktøj…

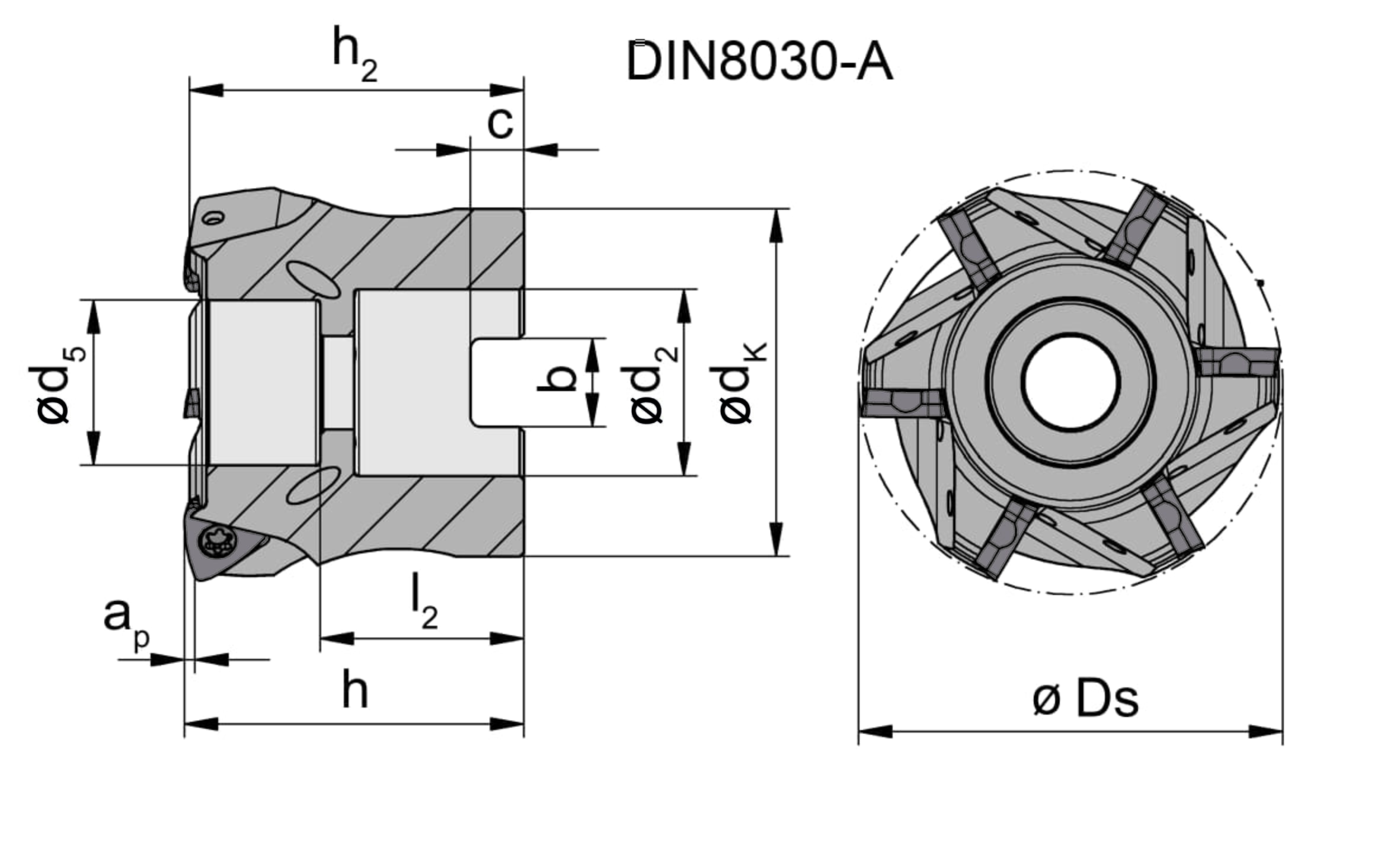

| Cutting diameter (Ds) | 50 |
|---|---|
| Depth carrier cross groove (P) | 6.3 |
| Diameter facing system for disk cutters (d3) | 22 |
| Length from stop to center insert (l4) | 24 |
| Lowering for mounting screw head (d1) | 19.5 |
| Maximum stepover (ap) (ap) | 1.2 |
| Miller length with indexable insert (hmax) | 40 |
| Miller length without indexable insert (hmin) | 39.4 |
| Neck diameter/ Flange diameter miller mandrel (d3) | 41 |
| Number of teeth (Z) | 6 |
| Width carrier cross groove (s) | 10.4 |
| flange diameter milling mandrel met | 41 |
| number-of-teeth | 6 |
