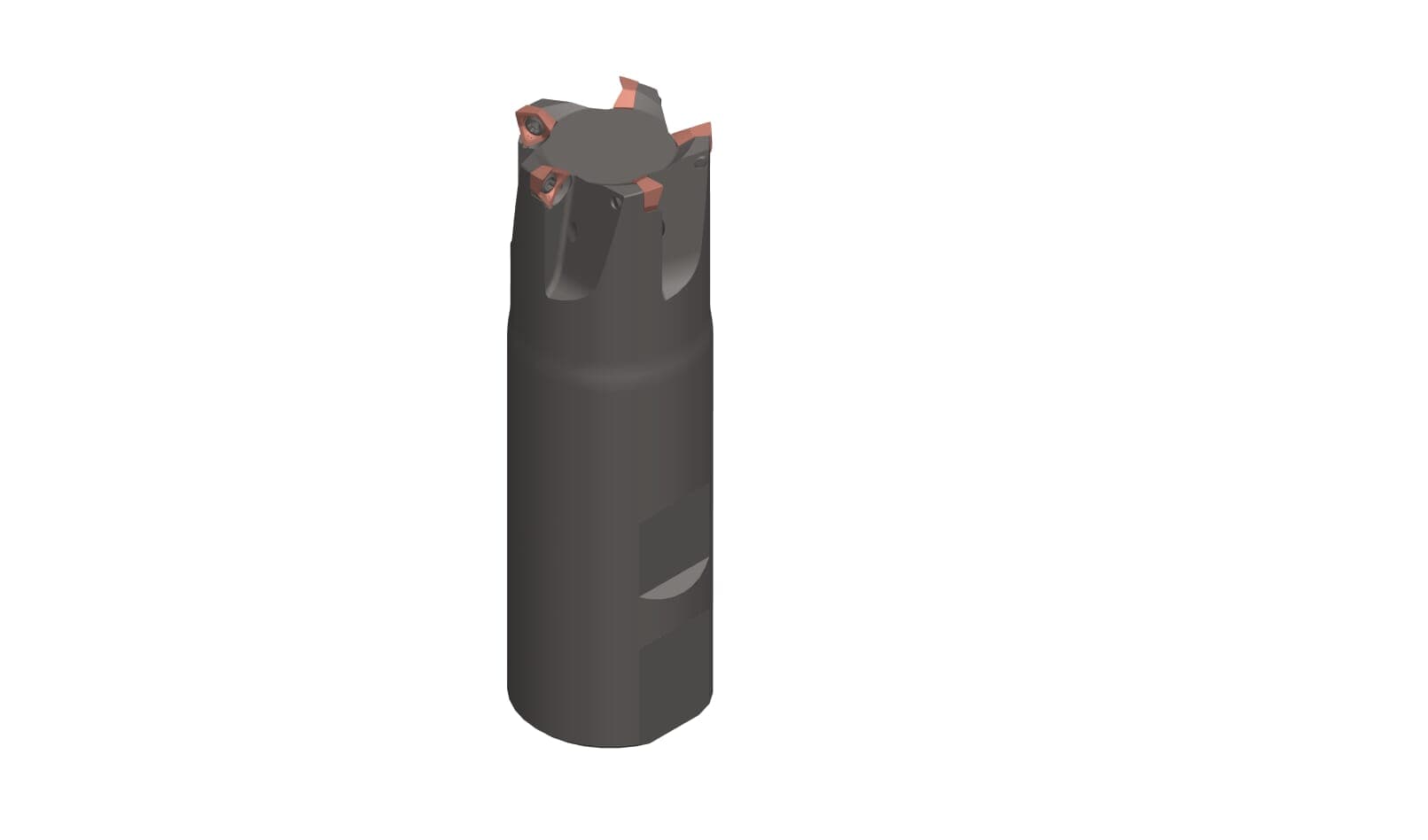

1 / 2: HORN DAM31.032.D326.05B Ø32
Corner cutting
Face milling
Helical interpolation
Ramp immersion
Henter tekniske filer …
Kategorier:Milling shank DAM31/DAM32
Henter matchende værktøj…
Shank DIN1835-B| Cone diameter (d) | 32 |
|---|---|
| Cutting depth (ap) | 3 |
| Cutting diameter (Ds) | 32 |
| Neck diameter (d1) | 31 |
| Number of teeth (Z) | 5 |
| Shank diameter (d) | 32 |
| Tension length (l3) | 68 |
| Total length (l) | 106 |
| Total length insert (l1) | 106 |
| Working length, Neck length, Extension length (l3) | 32 |
| number-of-teeth | 5 |
