Screw-in milling cutter DAM31/DAM32
1 / 2: HORN DAM31.032.M166.05B
Corner cutting
Face milling
Helical interpolation

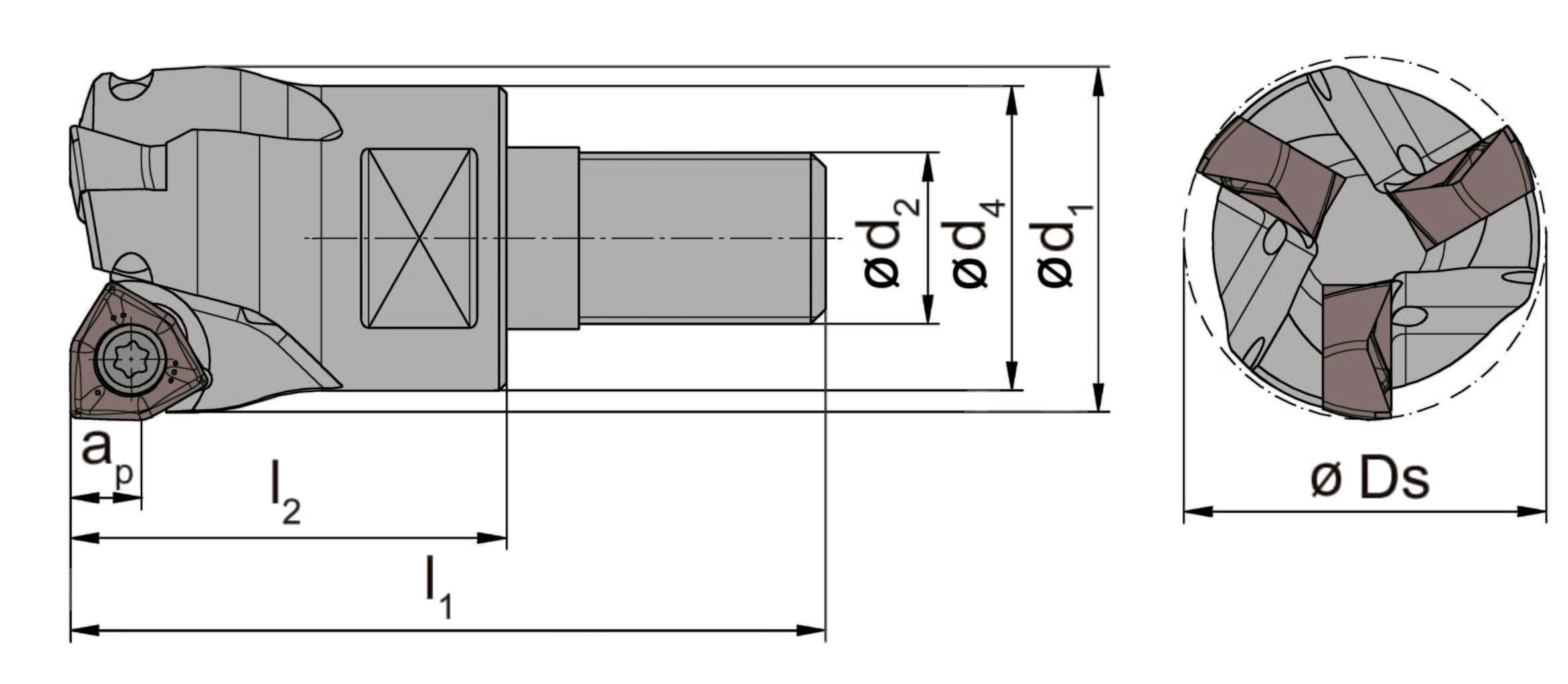

Ramp immersion| Cutting diameter (Ds) |
|---|
Henter tekniske filer …
Kategorier:Screw-in milling cutter DAM31/DAM32
Henter matchende værktøj…
| 32 |
| Diameter miller body (d4) | 31 |
|---|
| Key range (SW) | 24 |
|---|
| Length from stop (l2) | 35 |
|---|
| Maximum stepover (ap) (ap) | 3 |
|---|
| Neck diameter on stop (d4) | 29 |
|---|
| Number of teeth (Z) | 5 |
|---|
| Screw thread (d2) | M16 |
|---|
| Total milling length with insert (h) | 58 |
|---|
| number-of-teeth | 5 |
|---|
