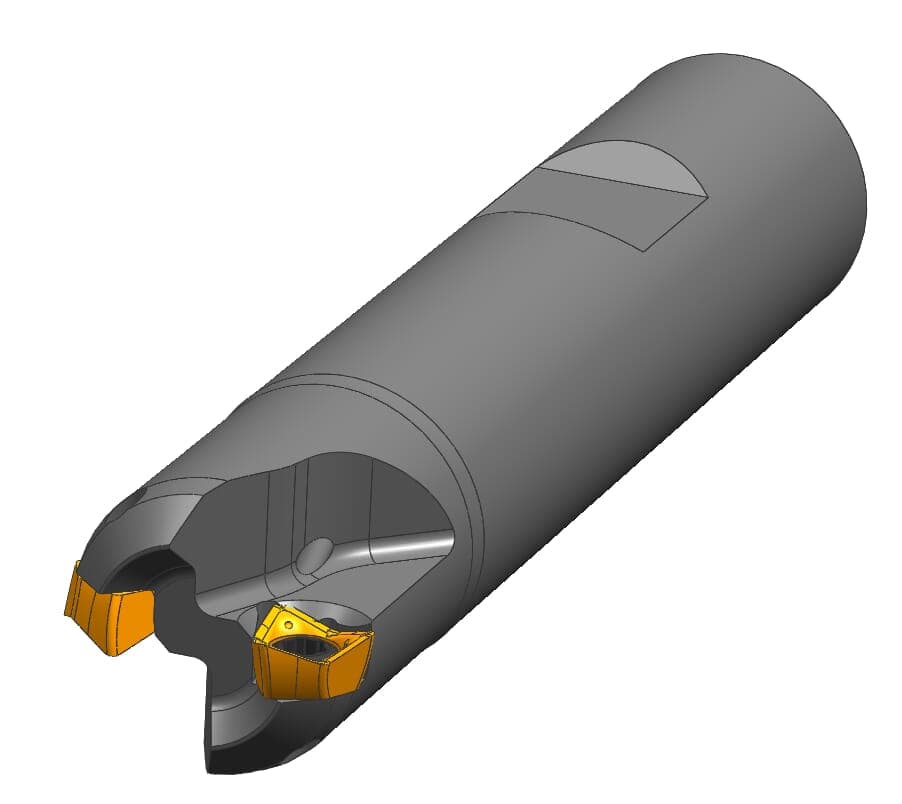

1 / 2: HORN DAM31.411.D163.02B
Corner cutting
Face milling
Helical interpolation
Ramp immersion
Henter tekniske filer …
Henter matchende værktøj…

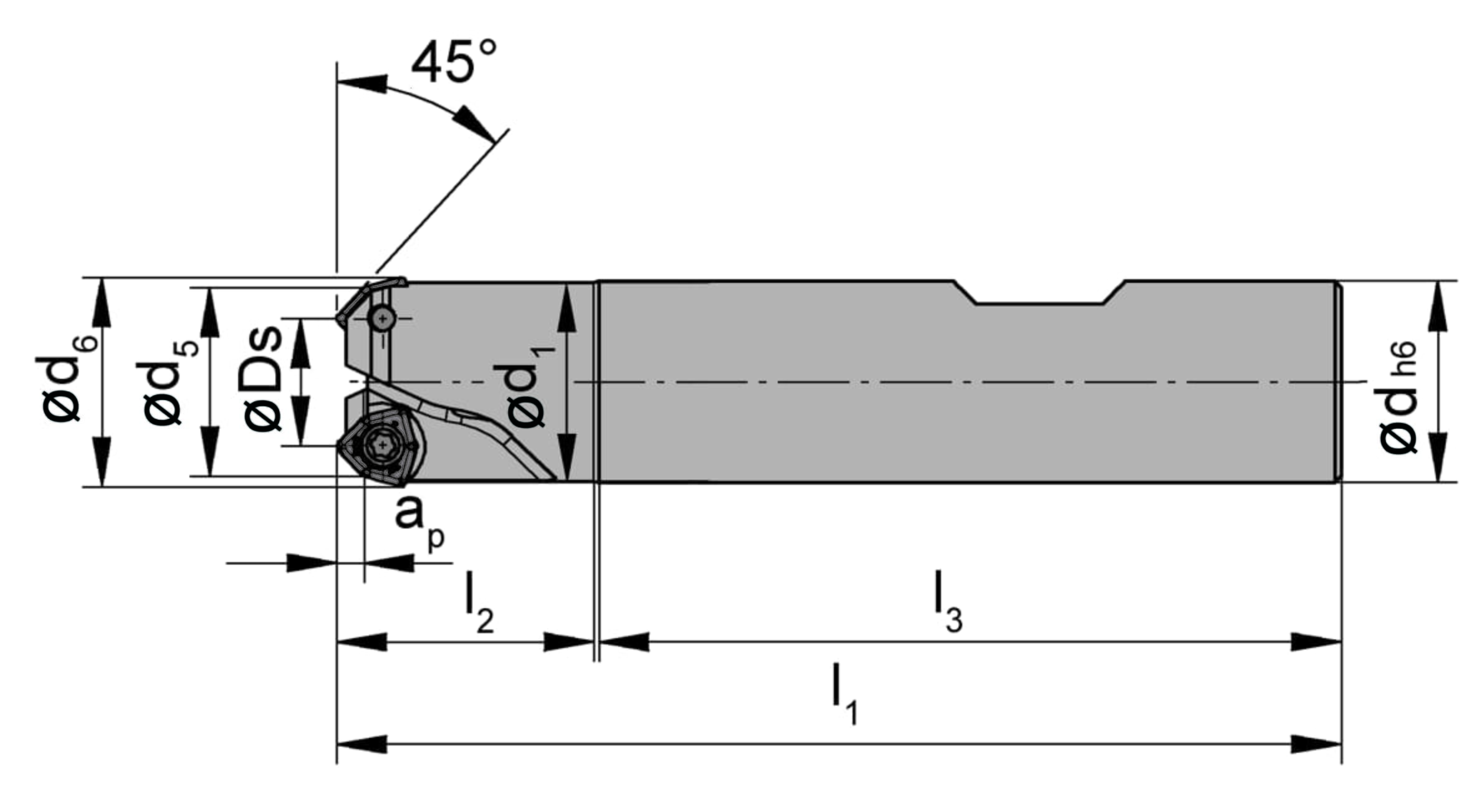

Shank form DIN6535-HB| Cutting depth (ap) | 2 |
|---|---|
| Cutting diameter (Ds) | 10.4 |
| Diameter (d6) | 16.9 |
| Maximum cutting circle diameter (Ds) | 15 |
| Neck diameter (d1) | 15.8 |
| Number of teeth (Z) | 2 |
| Shank diameter (d) | 16 |
| Tension length (l3) | 59 |
| Total length (l) | 80 |
| Total length insert (l1) | 80 |
| Working length, Neck length, Extension length (l3) | 20 |
| number-of-teeth | 2 |
