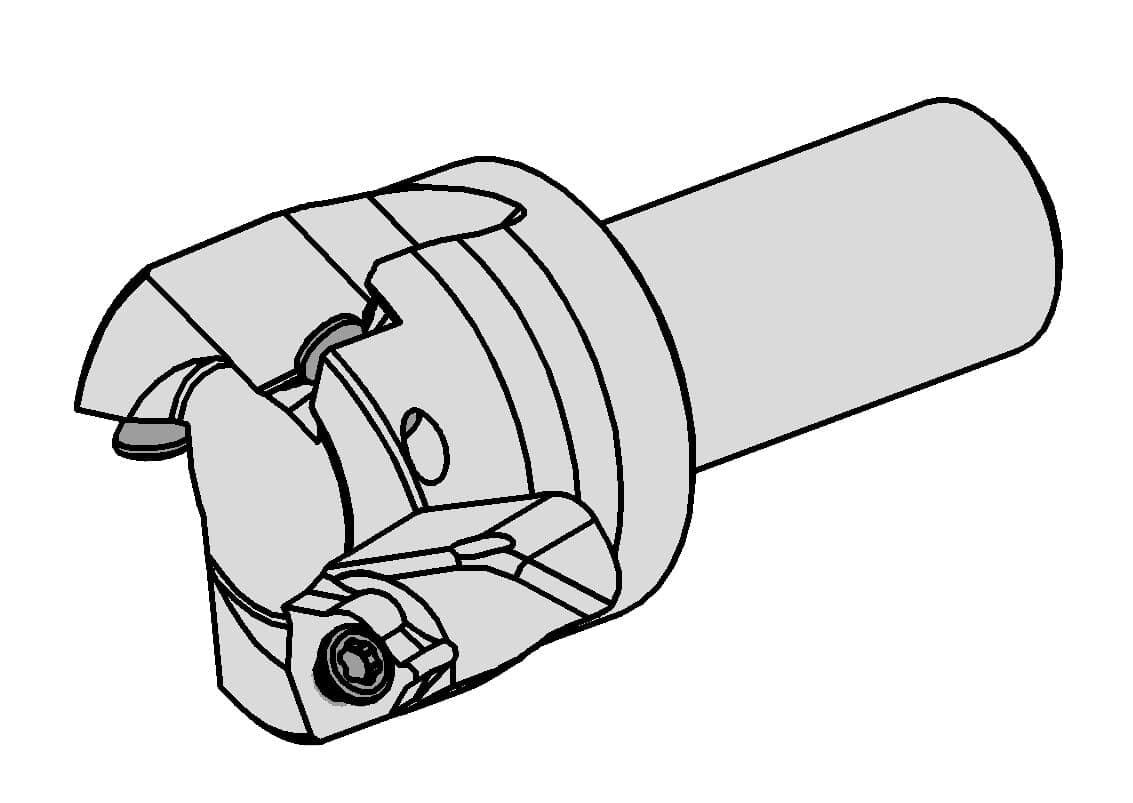

1 / 2: HORN DAM32.025.D161.03A
Corner cutting
Face milling
Helical interpolation
Ramp immersion
Henter tekniske filer …
Kategorier:Milling shank DAM31/DAM32
Henter matchende værktøj…

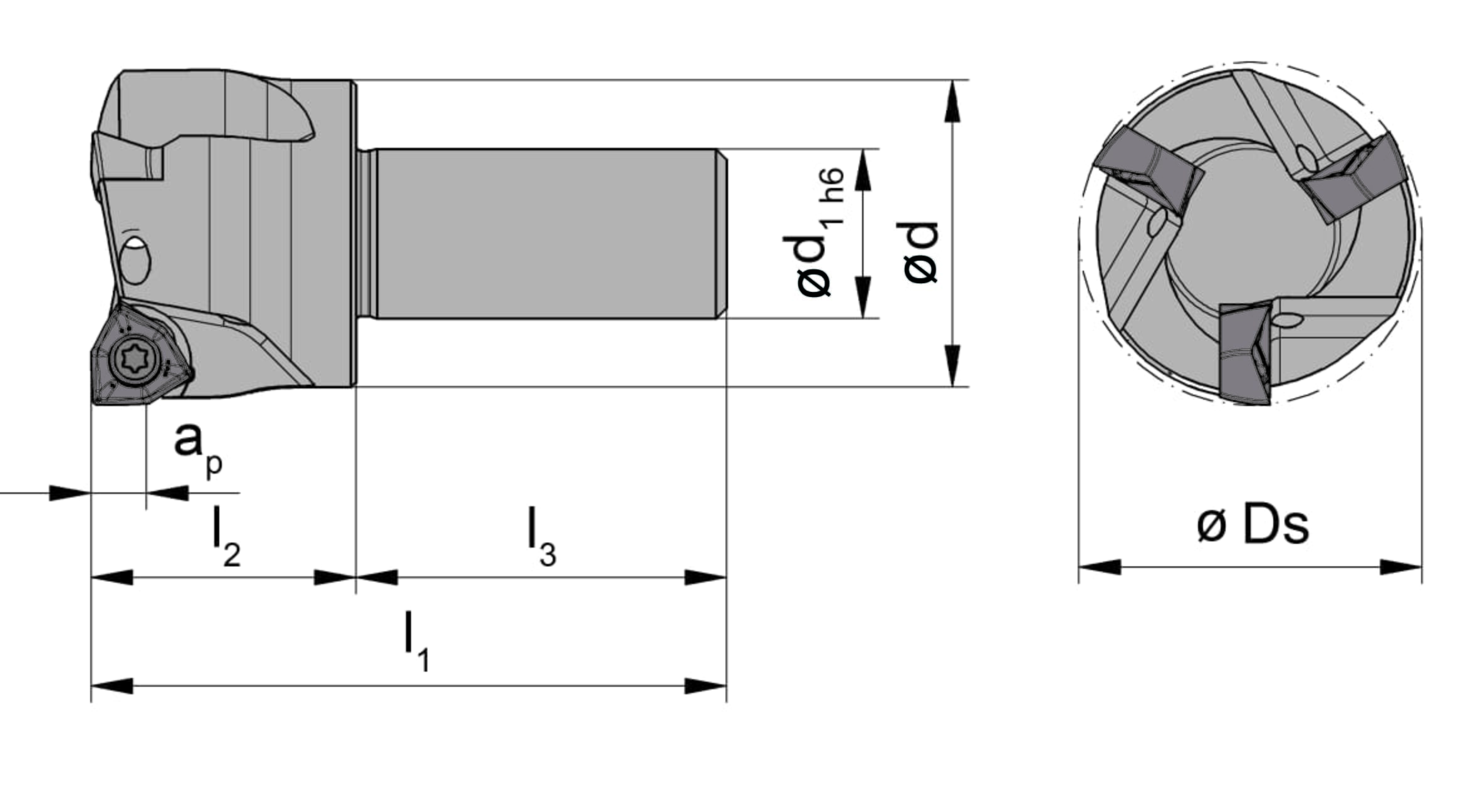

Shank form DIN6535-HA| Cutting depth (ap) | 4.5 |
|---|---|
| Cutting diameter (Ds) | 25 |
| Neck diameter (d1) | 16 |
| Number of teeth (Z) | 3 |
| Shank diameter (d) | 24 |
| Tension length (l3) | 35 |
| Total length (l) | 55 |
| Total length insert (l1) | 55 |
| Working length, Neck length, Extension length (l3) | 20 |
| number-of-teeth | 3 |
