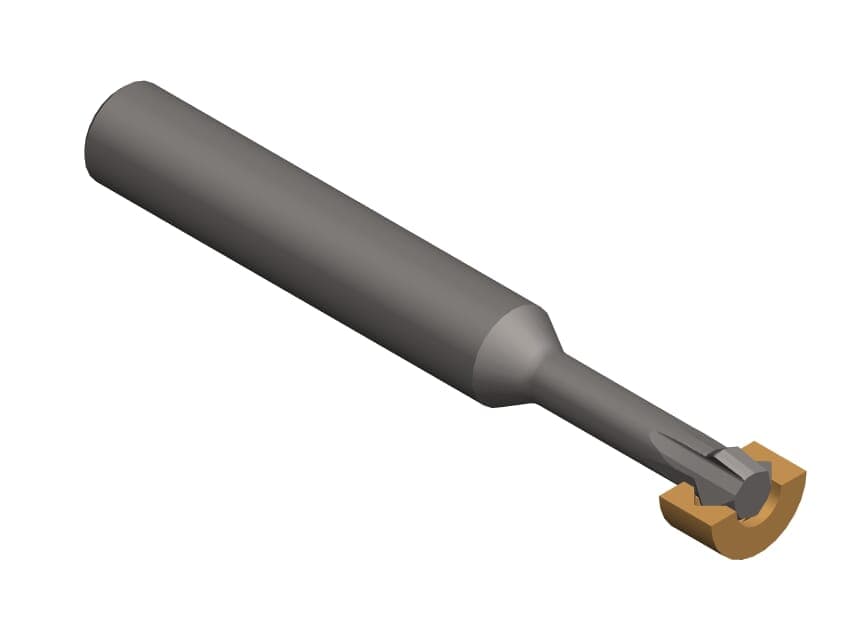

1 / 2: HORN DCF.3.75.4545.6.08 AN25
Chamfer milling
Chamfer milling
Number of teeth Z3| Chamfer (Fase) | 45 |
|---|---|
| Clamping_ shank diameter (d) | 8 |
Henter tekniske filer …
Kategorier:Fasfräsen (DCF_3)
Henter matchende værktøj…
| Cutting diameter (d1) |
|---|
| 7.5 |
| Maximum milling depth (tmax) | 1.5 |
|---|
| Neck diameter (d1) | 4.1 |
|---|
| Neck diameter (d3) | 4.1 |
|---|
| Neck length (l3) | 20 |
|---|
| Number of teeth (Z) | 3 |
|---|
| Shank diameter (d2) | 8 |
|---|
| Shank, clamping length (l1) | 40 |
|---|
| Total length (l) | 63 |
|---|
| Total length (l1) | 63 |
|---|
| Width of groove (w) | 0.2 |
|---|
| number-of-teeth | 3 |
|---|
