Whitworth-Gewinde "medium class" BSW / BSF (DCG_BS_3)

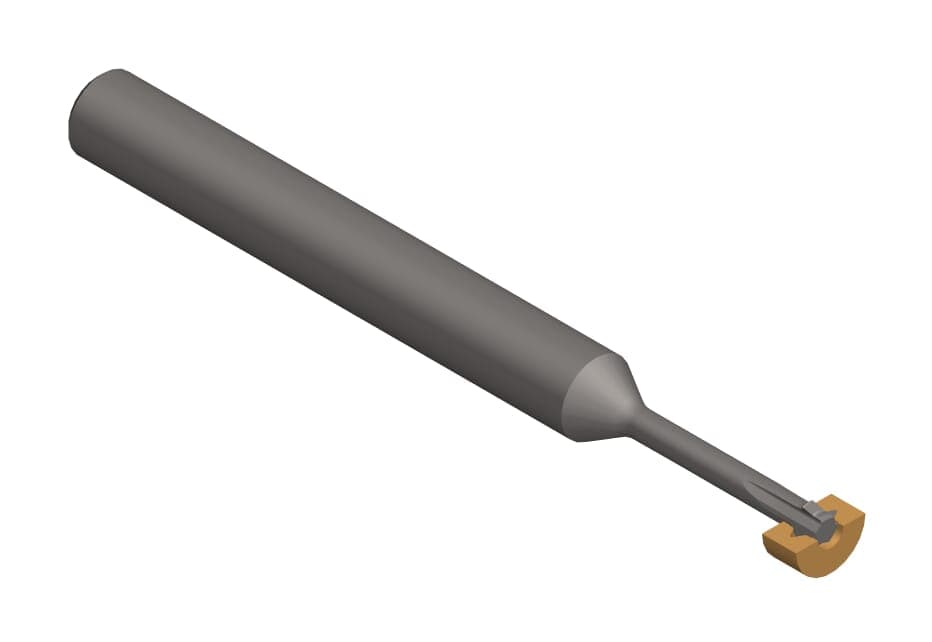

1 / 2: HORN DCG.3.55.1420.5.06 AN25
BSW/BSF thread
Whitworth thread
Number of teeth Z3| Clamping_ shank diameter (d) | 6 |
|---|---|
| Cutting diameter (d1) | 4 |
Henter tekniske filer …
Kategorier:Whitworth-Gewinde "medium class" BSW / BSF (DCG_BS_3)
Henter matchende værktøj…
| Neck length (l3) |
|---|
| 16 |
| Number of teeth (Z) | 3 |
|---|
| Pitch (P) | 1.27 |
|---|
| Shank diameter (d2) | 6 |
|---|
| Shank, clamping length (l1) | 40 |
|---|
| Smallest bore diameter (Da min) | 4.7 |
|---|
| Thread (Gewinde) | 1/4'' - 20 BSW |
|---|
| Total length (l) | 63 |
|---|
| Total length (l1) | 63 |
|---|
| number-of-teeth | 3 |
|---|
