Amerikanisches Unified-thread UNF / UNC / UNEF (DCG_Unified_3)

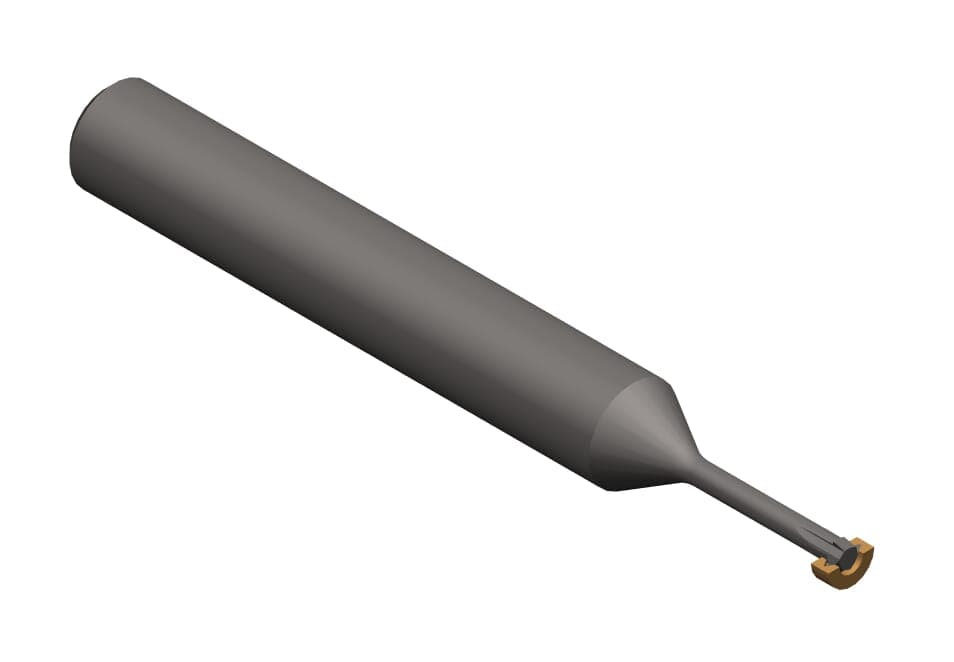

1 / 2: HORN DCG.3.60.836.3.06 AN25
Unified thread
Number of teeth Z3| Clamping_ shank diameter (d) | 6 |
|---|---|
| Cutting diameter (d1) | 2.5 |
| Neck length (l3) | 10 |
| Number of teeth (Z) | 3 |
| Pitch (P) | 0.706 |
Henter tekniske filer …
Kategorier:Amerikanisches Unified-thread UNF / UNC / UNEF (DCG_Unified_3)
Henter matchende værktøj…
| Shank diameter (d2) | 6 |
|---|
| Shank, clamping length (l1) | 36 |
|---|
| Smallest bore diameter (Da min) | 3.4 |
|---|
| Total length (l) | 50 |
|---|
| Total length (l1) | 50 |
|---|
| number-of-teeth | 3 |
|---|
