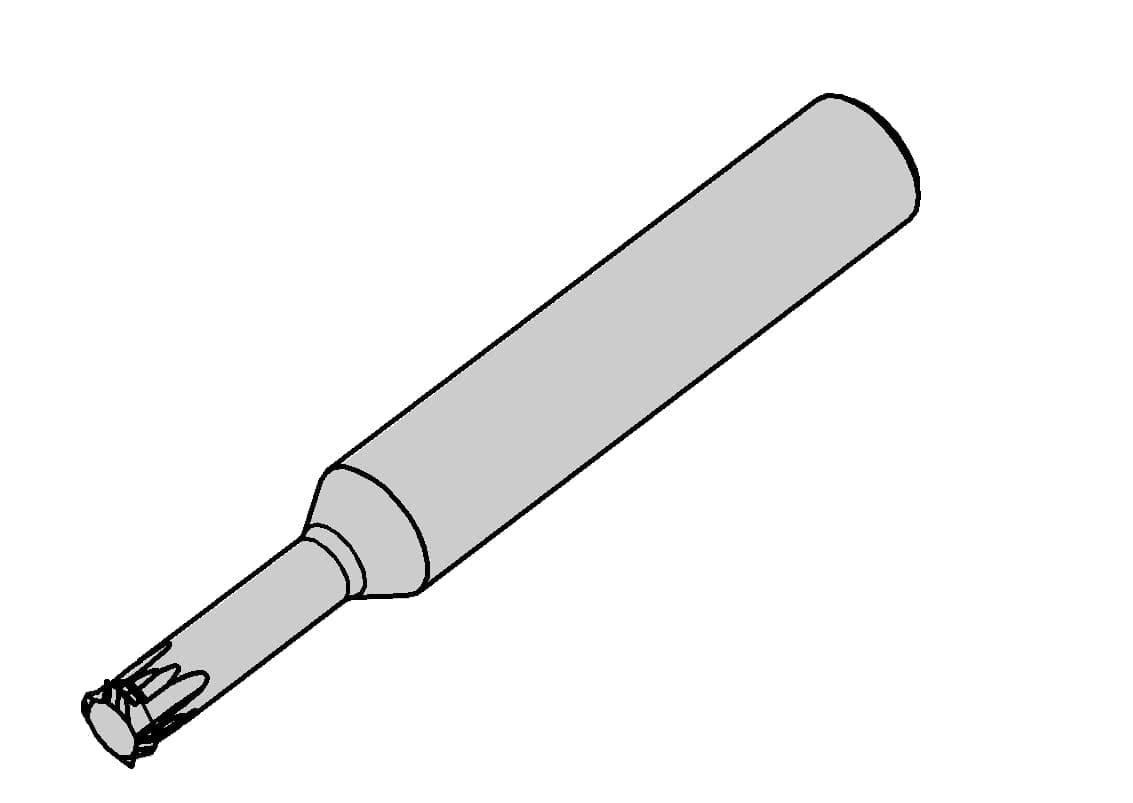

System DCG Thread full Profile M3-M12

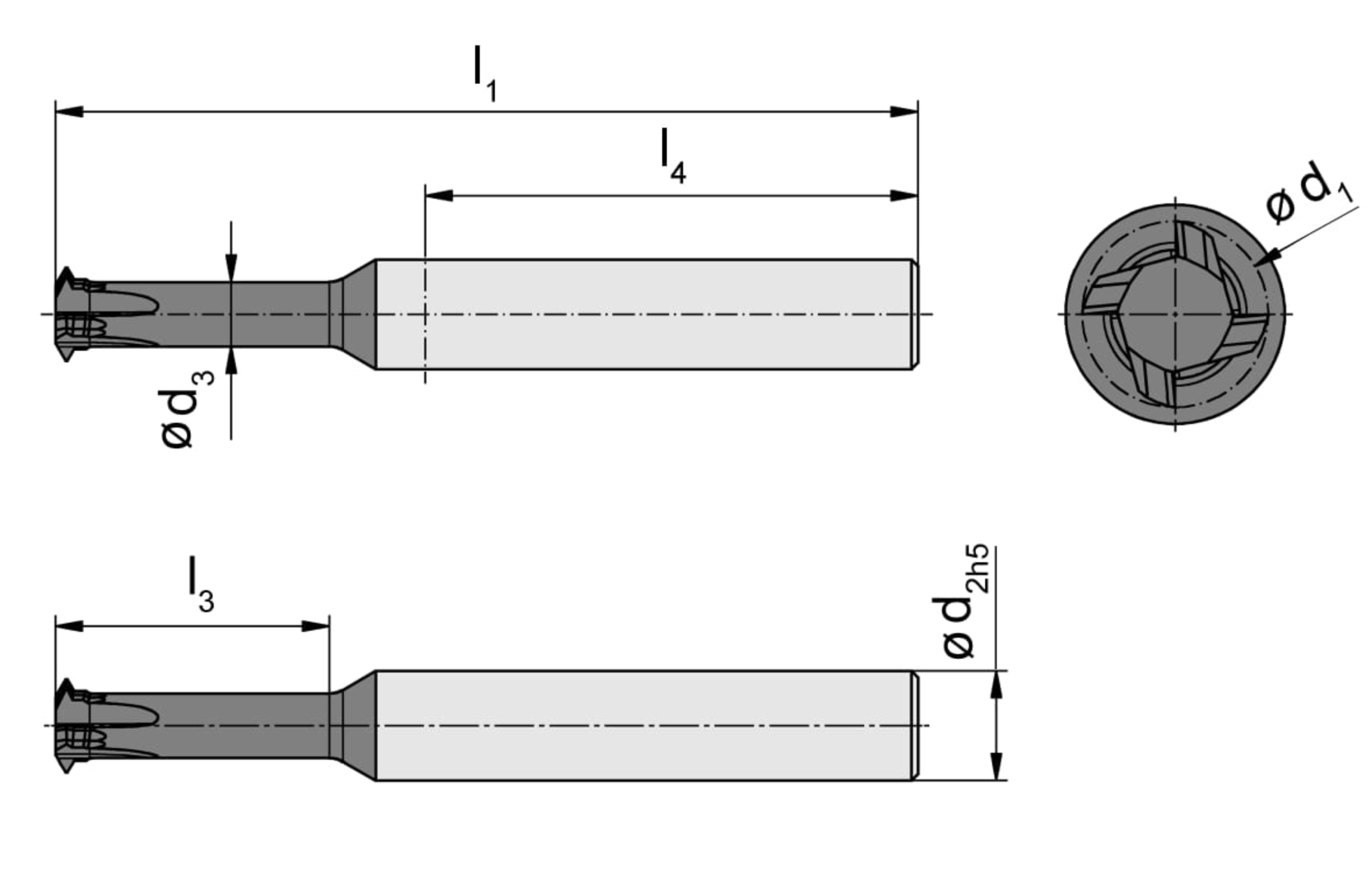

Full profile thread| Clamping_ shank diameter (d) | 4 |
|---|---|
| Cutting diameter (d1) | 2.3 |
| Neck diameter (d1) | 1.8 |
| Neck diameter (d3) | 1.8 |
| Neck length (l3) | 9 |
| Number of teeth (Z) | 3 |
| Pitch (P) | 0.6 |
| Shank diameter (d2) | 4 |
Henter tekniske filer …
Kategorier:System DCG Thread full Profile M3-M12
Henter matchende værktøj…
| Shank, clamping length (l1) | 22 |
|---|
| Smallest bore diameter (Da min) | 2.7 |
|---|
| Thread (Gewinde) | M3,5 |
|---|
| Total length (l) | 39 |
|---|
| Total length (l1) | 39 |
|---|
| number-of-teeth | 3 |
|---|
