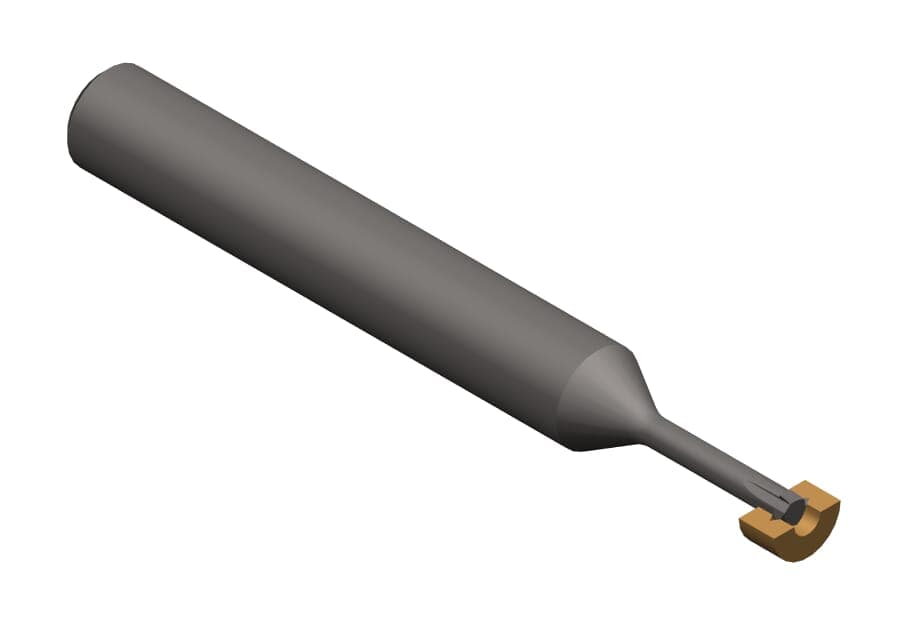

1 / 2: HORN DCG.3.M4.070.3.1.06 MG12 ubelagt
60° thread
Partial profile thread
Number of teeth Z3| Clamping_ shank diameter (d) | 6 |
|---|---|
| Cutting diameter (d1) | 2.8 |
Henter tekniske filer …
Henter matchende værktøj…
| Maximum pitch (Pmax) |
|---|
| 0.75 |
| Neck diameter (d1) | 1.7 |
|---|
| Neck diameter (d3) | 1.7 |
|---|
| Neck length (l3) | 10 |
|---|
| Number of teeth (Z) | 3 |
|---|
| Pitch (P) | 0.7 |
|---|
| Shank diameter (d2) | 6 |
|---|
| Shank, clamping length (l1) | 36 |
|---|
| Smallest bore diameter (Da min) | 3.3 |
|---|
| Thread (Gewinde) | M4 |
|---|
| Total length (l) | 50 |
|---|
| Total length (l1) | 50 |
|---|
| number-of-teeth | 3 |
|---|
