System DCG Gewinde Teilprofil M1-M12
1 / 2: HORN DCG.3.M5.050.3.1.06 AN25
Henter tekniske filer …
Kategorier:System DCG Gewinde Teilprofil M1-M12
Henter matchende værktøj…

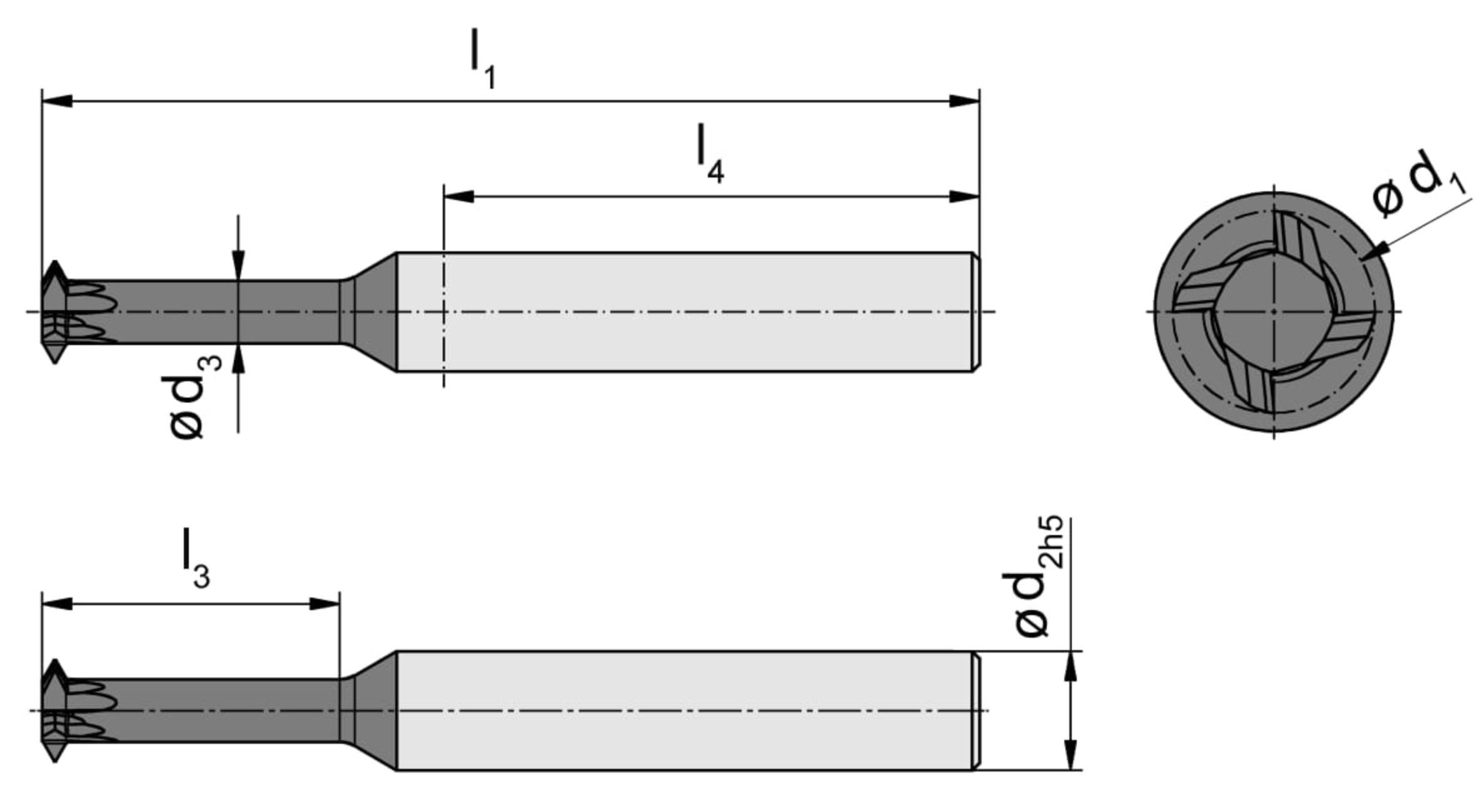

60° thread| Clamping_ shank diameter (d) | 6 |
|---|---|
| Cutting diameter (d1) | 3.6 |
| Maximum pitch (Pmax) | 0.75 |
| Neck diameter (d1) | 2.5 |
| Neck diameter (d3) | 2.5 |
| Neck length (l3) | 10 |
| Number of teeth (Z) | 3 |
| Pitch (P) | 0.5 |
| Shank diameter (d2) | 6 |
| Shank, clamping length (l1) | 36 |
| Smallest bore diameter (Da min) | 4.2 |
| Thread (Gewinde) | M5 |
| Total length (l) | 50 |
| Total length (l1) | 50 |
| number-of-teeth | 3 |
