System DCG Thread full Profile M3-M12

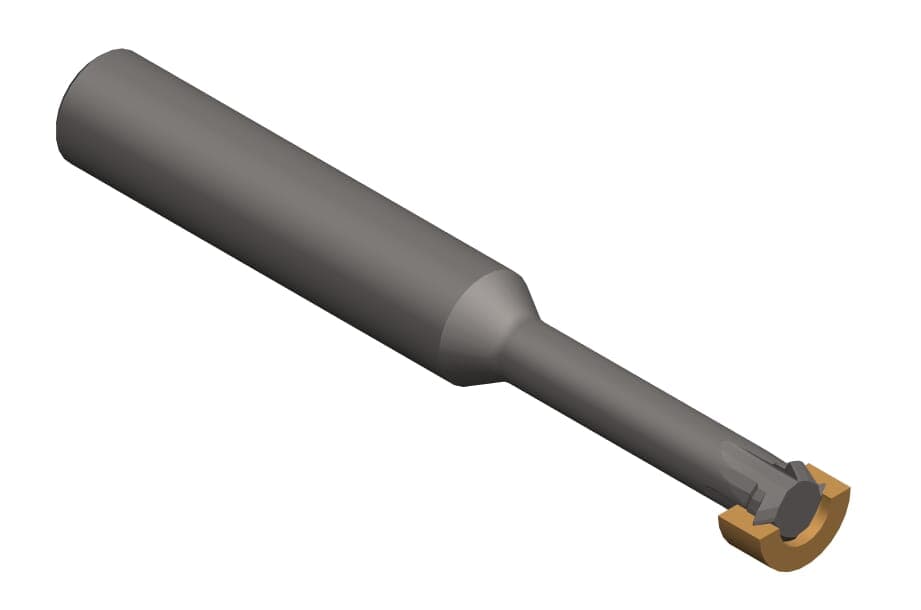

1 / 2: HORN DCG.4.M12.175.8.2.10 AN25
Full profile thread
Number of teeth Z4| Clamping_ shank diameter (d) | 10 |
|---|---|
| Cutting diameter (d1) | 8 |
| Neck diameter (d1) | 5.5 |
| Neck diameter (d3) | 5.5 |
| Neck length (l3) |
Henter tekniske filer …
Kategorier:System DCG Thread full Profile M3-M12
Henter matchende værktøj…
| 30 |
| Number of teeth (Z) | 4 |
|---|
| Pitch (P) | 1.75 |
|---|
| Shank diameter (d2) | 10 |
|---|
| Shank, clamping length (l1) | 40 |
|---|
| Smallest bore diameter (Da min) | 10 |
|---|
| Thread (Gewinde) | M12 |
|---|
| Total length (l) | 77 |
|---|
| Total length (l1) | 77 |
|---|
| number-of-teeth | 4 |
|---|
