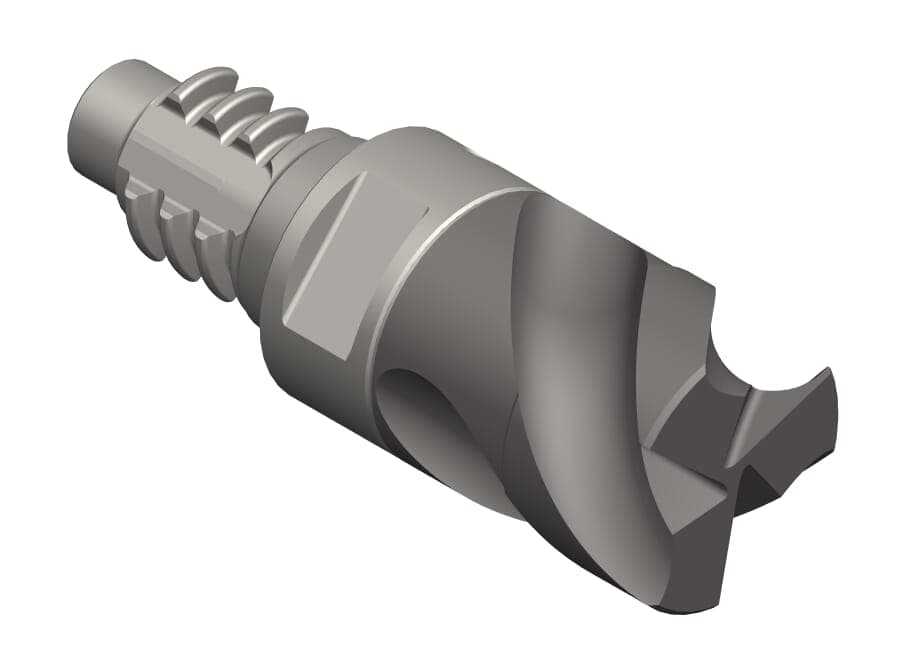

1 / 2: HORN DGF.4.20.2000.03.00 AN2P
Center cutting
Corner cutting
Edge trimming
Face milling
Henter tekniske filer …
Henter matchende værktøj…
Plunge milling
Pocketing
Ramp immersion
Slotting
VHM corner chamfer| Corner bevel (45 ° x b) (b) | 0.25 |
|---|---|
| Cutting diameter (d1) | 20 |
| Effective cutting length (l2) | 12 |
| Key range (SW) | 17 |
| Neck diameter (d1) | 19.5 |
| Neck diameter (d3) | 19.5 |
| Number of teeth (Z) | 4 |
| System (System) | DG20 |
| Tool length from stop, flange (l3) | 30.3 |
| number-of-teeth | 4 |
