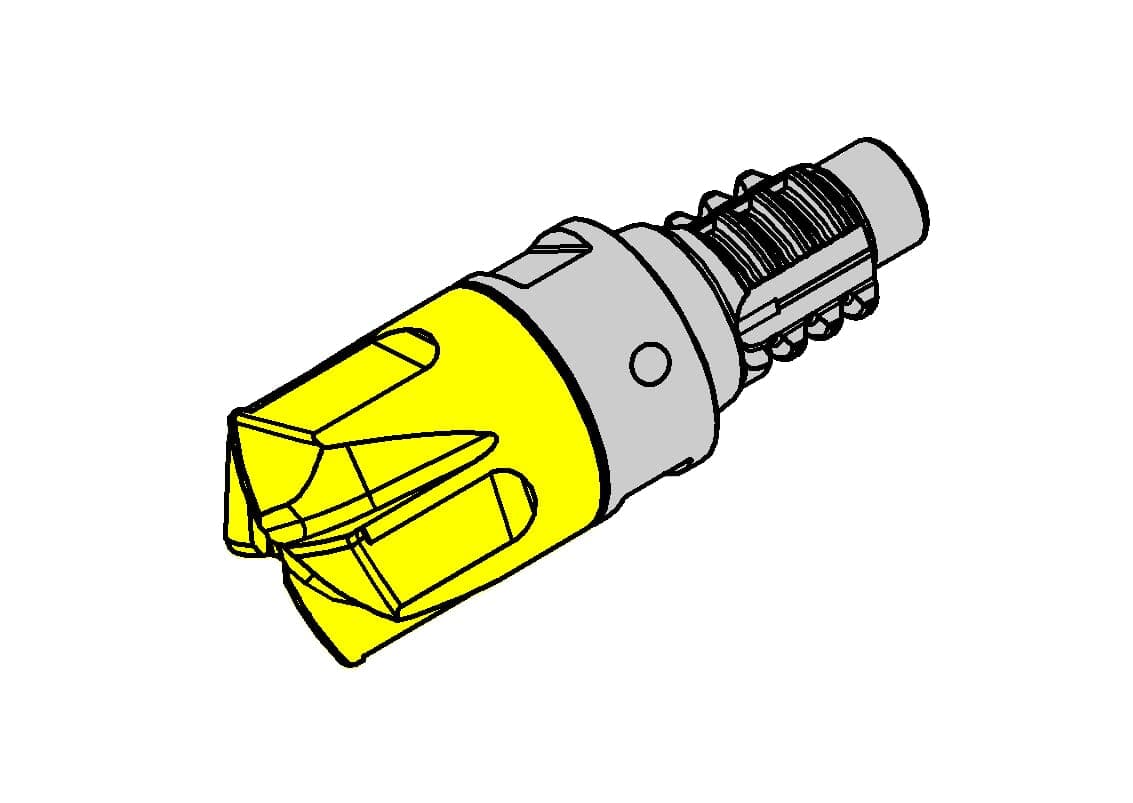

1 / 2: HORN DGH.4.10.1000.00 AN2P
Copy milling
Corner cutting
Face milling
Helical interpolation
Henter tekniske filer …
Henter matchende værktøj…
Ramp immersion
Slotting
Number of teeth Z4
Vhm tolerance h9
Helix angle 30 degrees| Cutting diameter (d1) | 10 |
|---|---|
| Effective cutting length (l2) | 0.7 |
| Key range (SW) | 8 |
| Neck diameter (d1) | 9.8 |
| Neck diameter (d3) | 9.8 |
| Number of teeth (Z) | 4 |
| System (System) | DG10 |
| Theoretical corner radius, programmable corner rad | 1.07 |
| Tool length from stop, flange (l3) | 16.8 |
| number-of-teeth | 4 |
