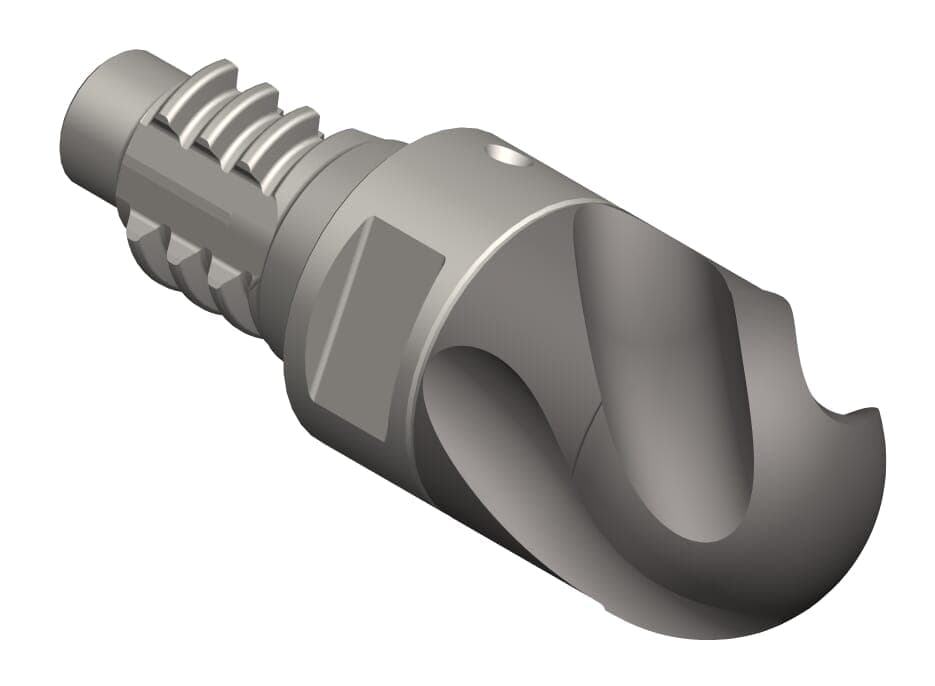

1 / 2: HORN DGK.2.12.1200.00 AN2P
Center cutting
Copy milling
Corner cutting
Full radius slot
Henter tekniske filer …
Henter matchende værktøj…
Ramp immersion
Slotting
Number of teeth Z2
Vhm tolerance h9

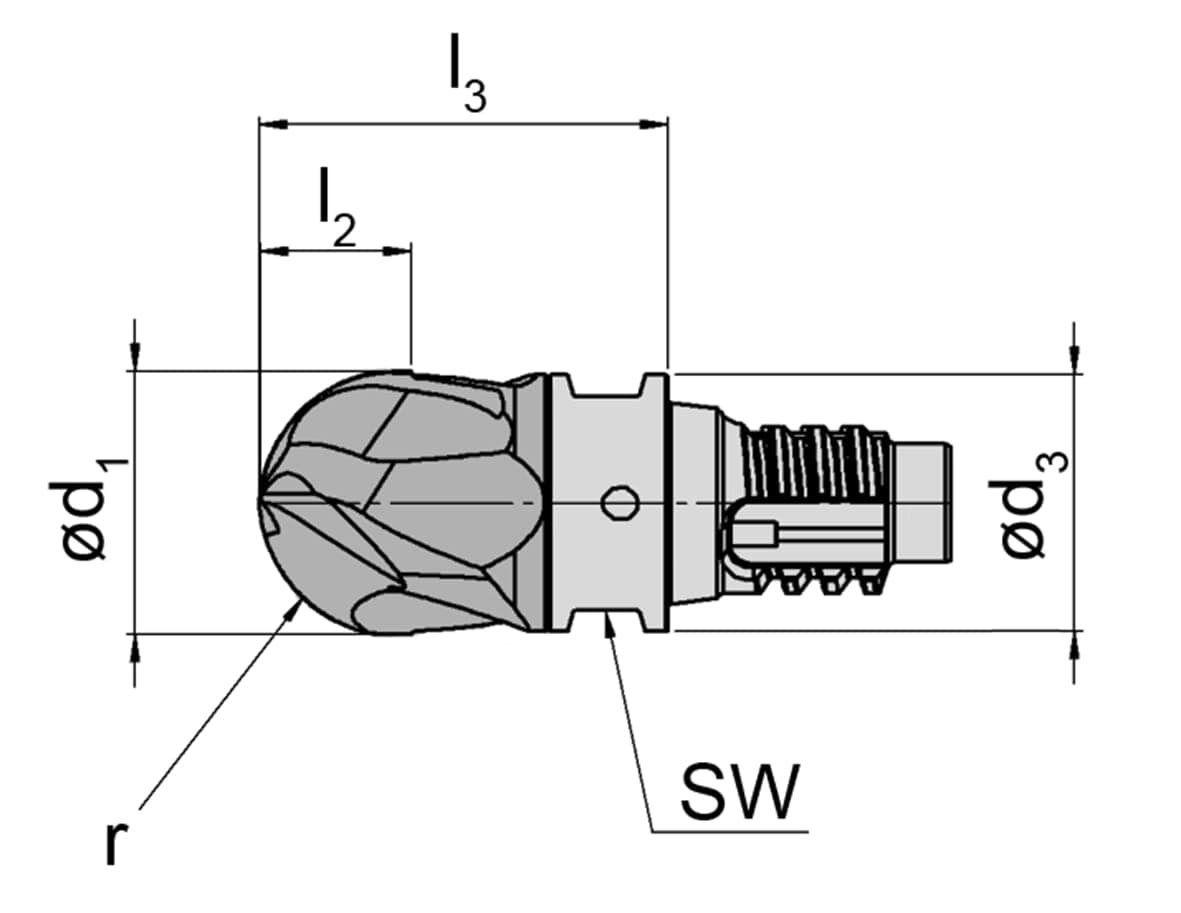

Helix angle 30 degrees| Cutting diameter (d1) | 12 |
|---|---|
| Effective cutting length (l2) | 6.5 |
| Key range (SW) | 10 |
| Neck diameter (d1) | 11.7 |
| Neck diameter (d3) | 11.7 |
| Number of teeth (Z) | 2 |
| Radius, full-radius (r) | 6 |
| System (System) | DG12 |
| Tool length from stop, flange (l3) | 19.3 |
| number-of-teeth | 2 |
