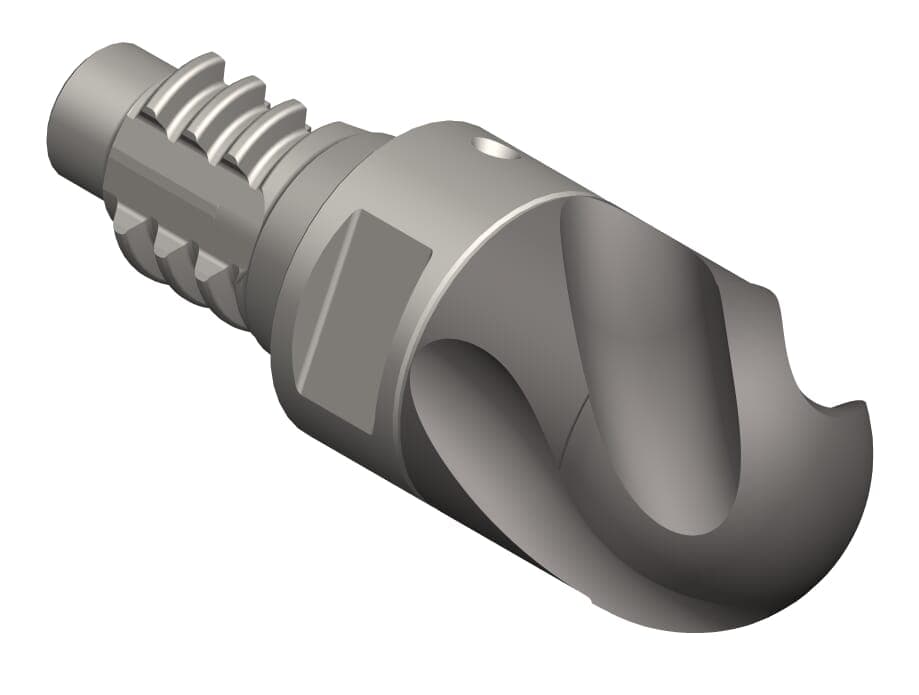

1 / 2: HORN DGK.4.20.2000.00 AN2P
Center cutting
Copy milling
Corner cutting
Full radius slot
Henter tekniske filer …
Henter matchende værktøj…
Ramp immersion
Slotting
Number of teeth Z2
Vhm tolerance h9
Helix angle 30 degrees| Cutting diameter (d1) | 20 |
|---|---|
| Effective cutting length (l2) | 12 |
| Key range (SW) | 17 |
| Neck diameter (d1) | 19.5 |
| Neck diameter (d3) | 19.5 |
| Number of teeth (Z) | 4 |
| Radius, full-radius (r) | 10 |
| System (System) | DG20 |
| Tool length from stop, flange (l3) | 30.3 |
| number-of-teeth | 4 |
