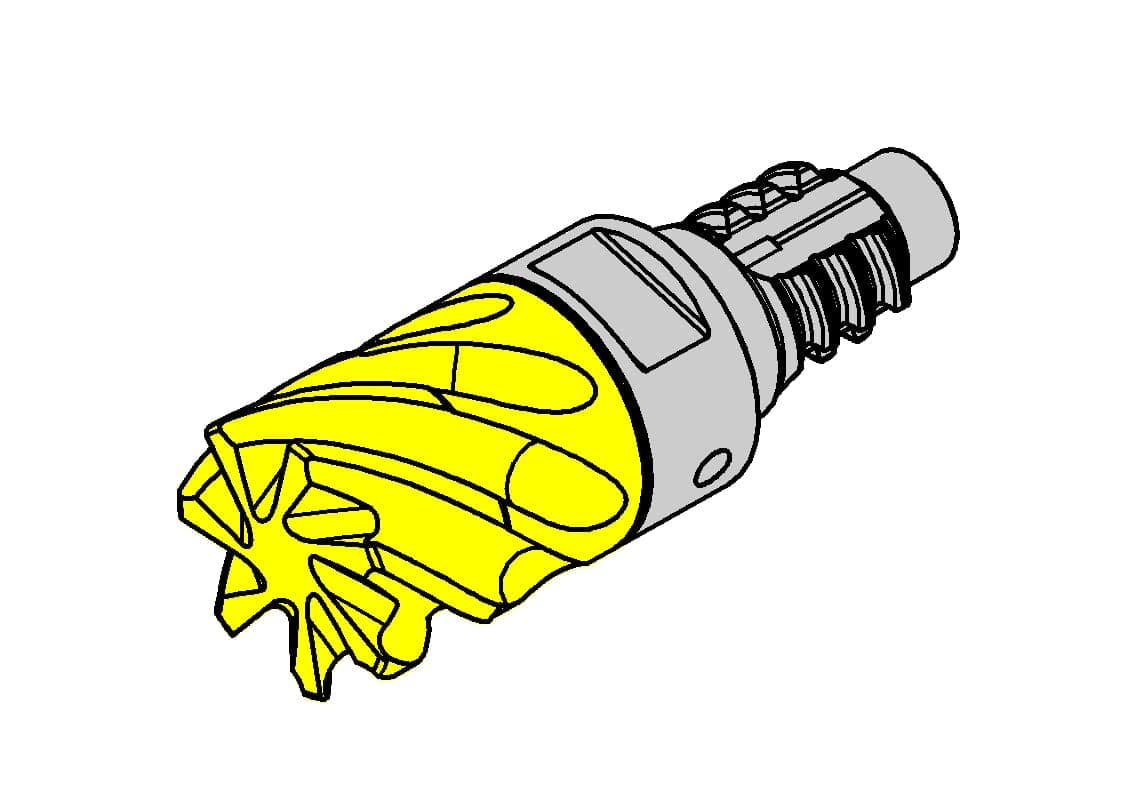

1 / 2: HORN DGR.5.16.1600.20.IK AN2P
Corner cutting
Edge trimming
Face milling
Helical interpolation
Henter tekniske filer …
Henter matchende værktøj…
Ramp immersion
Slotting
Number of teeth Z5
VHM corner radius

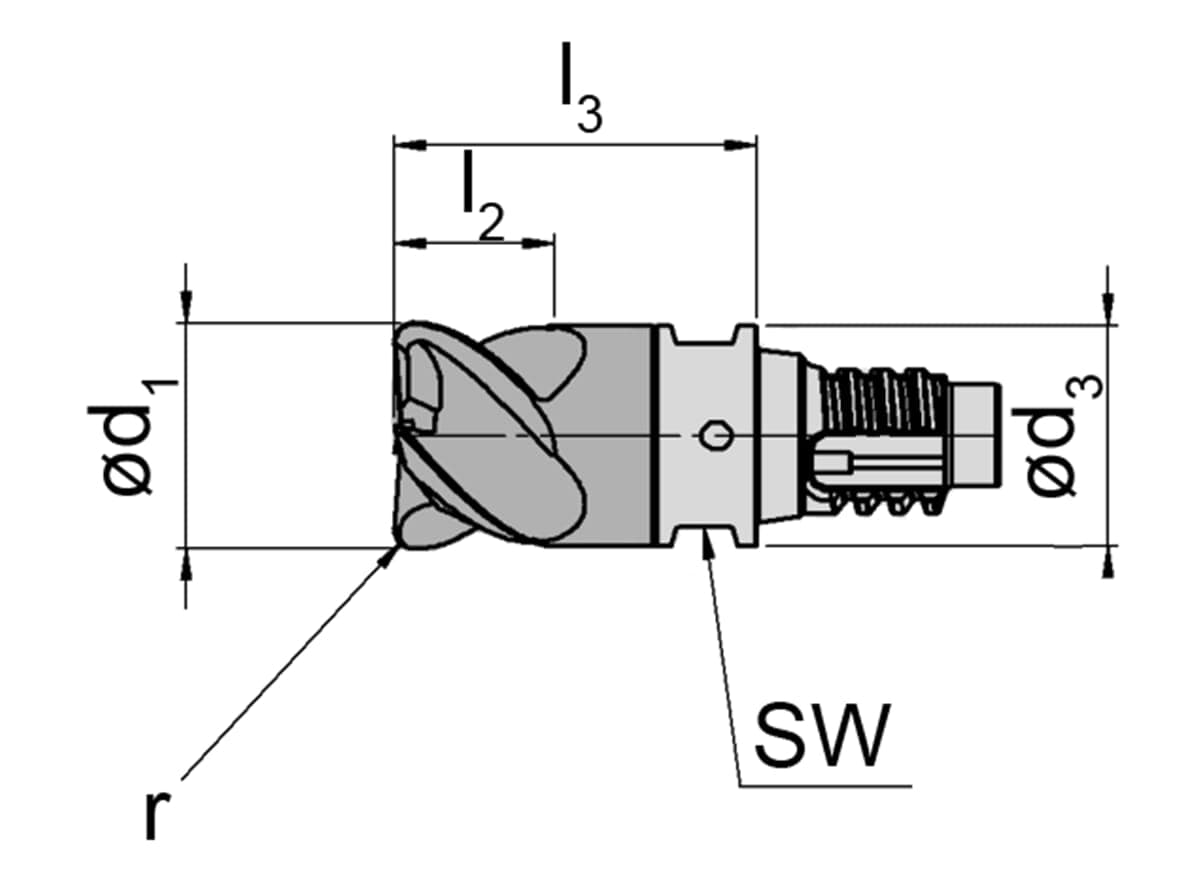

Helix angle 45 degrees| Corner radius (r) | 2 |
|---|---|
| Cutting diameter (d1) | 16 |
| Effective cutting length (l2) | 8.5 |
| Key range (SW) | 13 |
| Neck diameter (d) | 15.6 |
| Number of teeth (Z) | 5 |
| System (System) | DG16 |
| Tool length from stop, flange (l3) | 24.8 |
| number-of-teeth | 5 |
