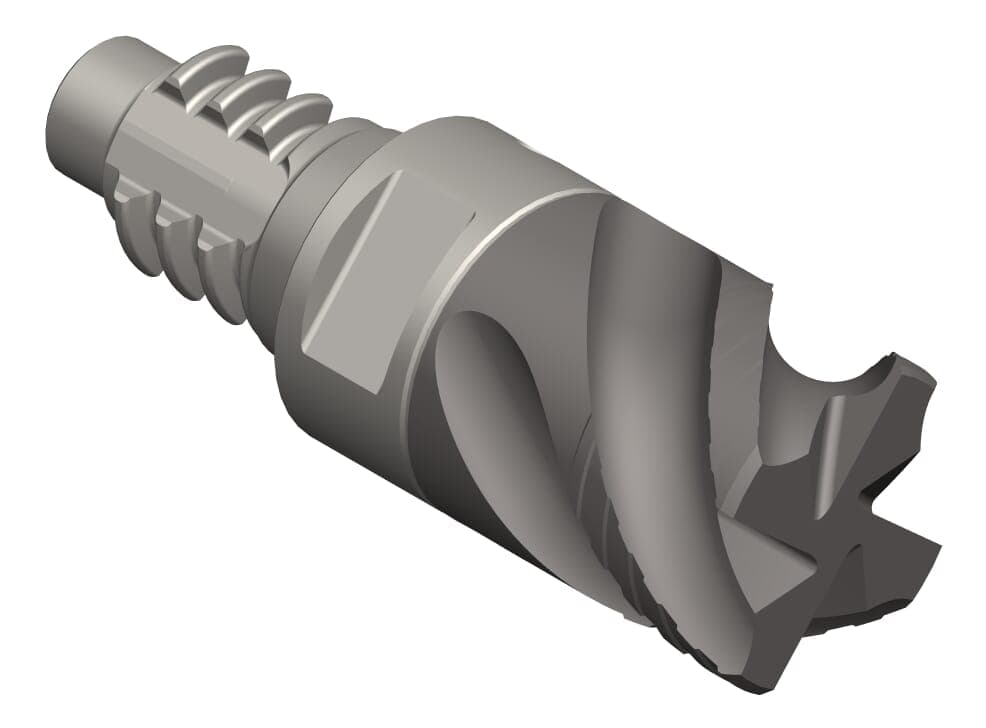

1 / 2: HORN DGRR.3.12.1200.00 AN2P (Ø12 SKRUB)
Center cutting
Corner cutting
Edge trimming
Face milling
Henter tekniske filer …
Henter matchende værktøj…
Pocketing
Ramp immersion
Slotting
VHM corner chamfer
Number of teeth Z3| Corner bevel (45 ° x b) (b) | 0.5 |
|---|---|
| Cutting diameter (d1) | 12 |
| Effective cutting length (l2) | 6.5 |
| Key range (SW) | 10 |
| Neck diameter (d1) | 11.7 |
| Neck diameter (d3) | 11.7 |
| Number of teeth (Z) | 3 |
| System (System) | DG12 |
| Tool length from stop, flange (l3) | 19.3 |
| number-of-teeth | 3 |
