Center cutting
Corner cutting
Helical interpolation
Plunge milling
Henter tekniske filer …
Henter matchende værktøj…
Ramp immersion
VHM corner chamfer
Number of teeth z1
Shank form HA

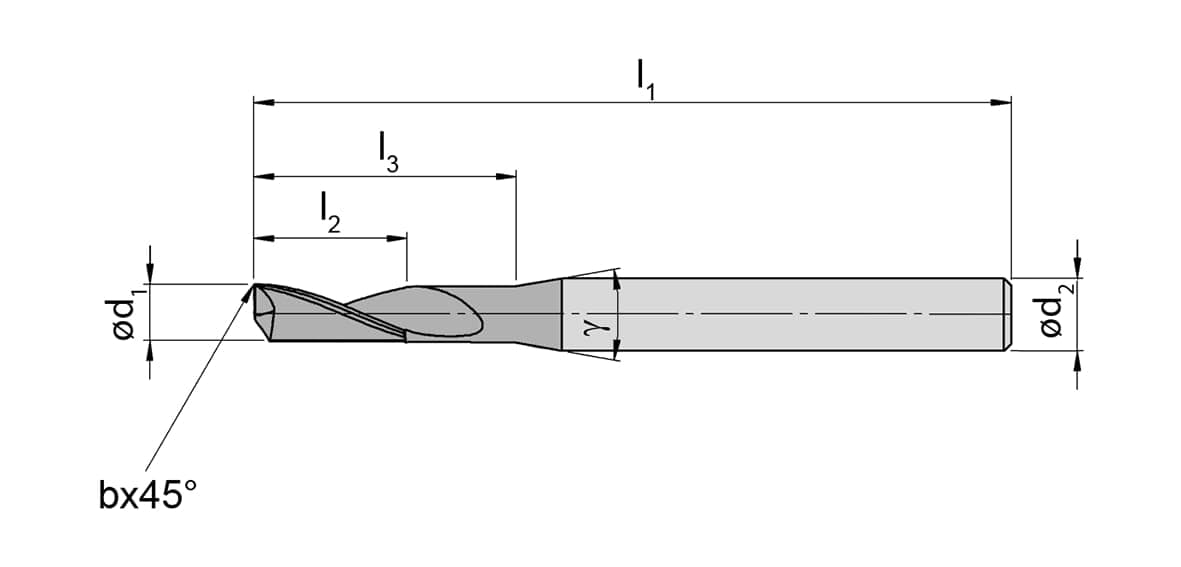

Helix angle 30 degrees| Clamping_ shank diameter (d) | 8 |
|---|---|
| Corner bevel (45 ° x b) (b) | 0.2 |
| Cutting diameter (d1) | 8 |
| Effective cutting length (l2) | 28 |
| Neck diameter (d1) | 7.5 |
| Neck diameter (d3) | 7.5 |
| Neck length (l3) | 40 |
| Number of teeth (Z) | 1 |
| Shank diameter (d2) | 8 |
| Total length (l) | 82 |
| Total length (l1) | 82 |
| number-of-teeth | 1 |
