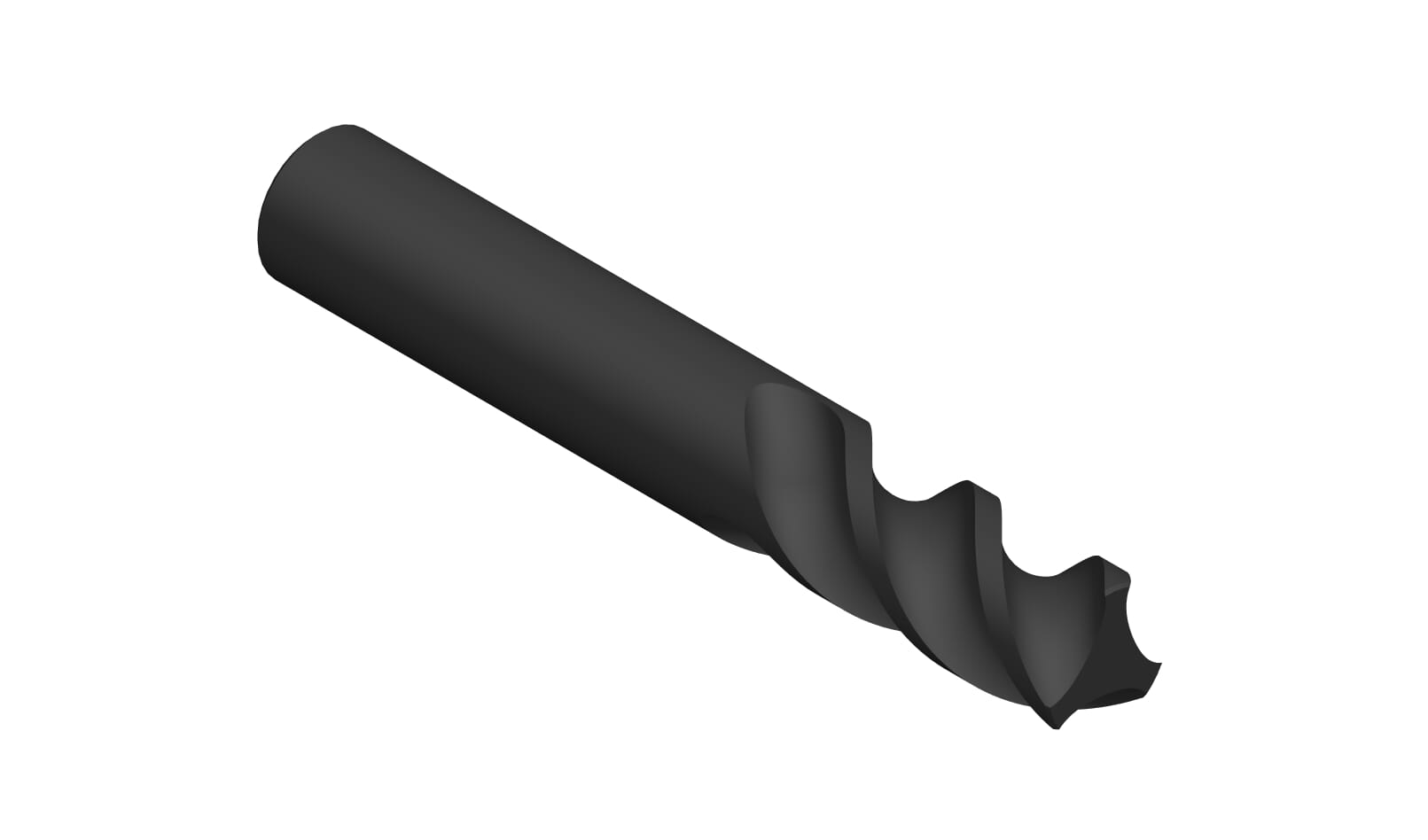

1 / 2: HORN DSF.4.040.50.04 TS3K ø 4
Center cutting
Ramp immersion
VHM corner chamfer
Number of teeth Z4
Henter tekniske filer …
Henter matchende værktøj…
Concentricity 005
Vhm tolerance h9
Helix angle 45 degrees| Clamping_ shank diameter (d) | 4 |
|---|---|
| Corner bevel (45 ° x b) (b) | 0.1 |
| Cutting diameter (d1) | 4 |
| Effective cutting length (l2) | 12 |
| Number of teeth (Z) | 4 |
| Shank diameter (d2) | 4 |
| Total length (l) | 50 |
| Total length (l1) | 50 |
| number-of-teeth | 4 |
